Antenna, Boot Lid, XM Quad, US, CV

Antenna, Boot Lid, XM Quad, US, CV

To remove
1. Remove the boot lid trim.

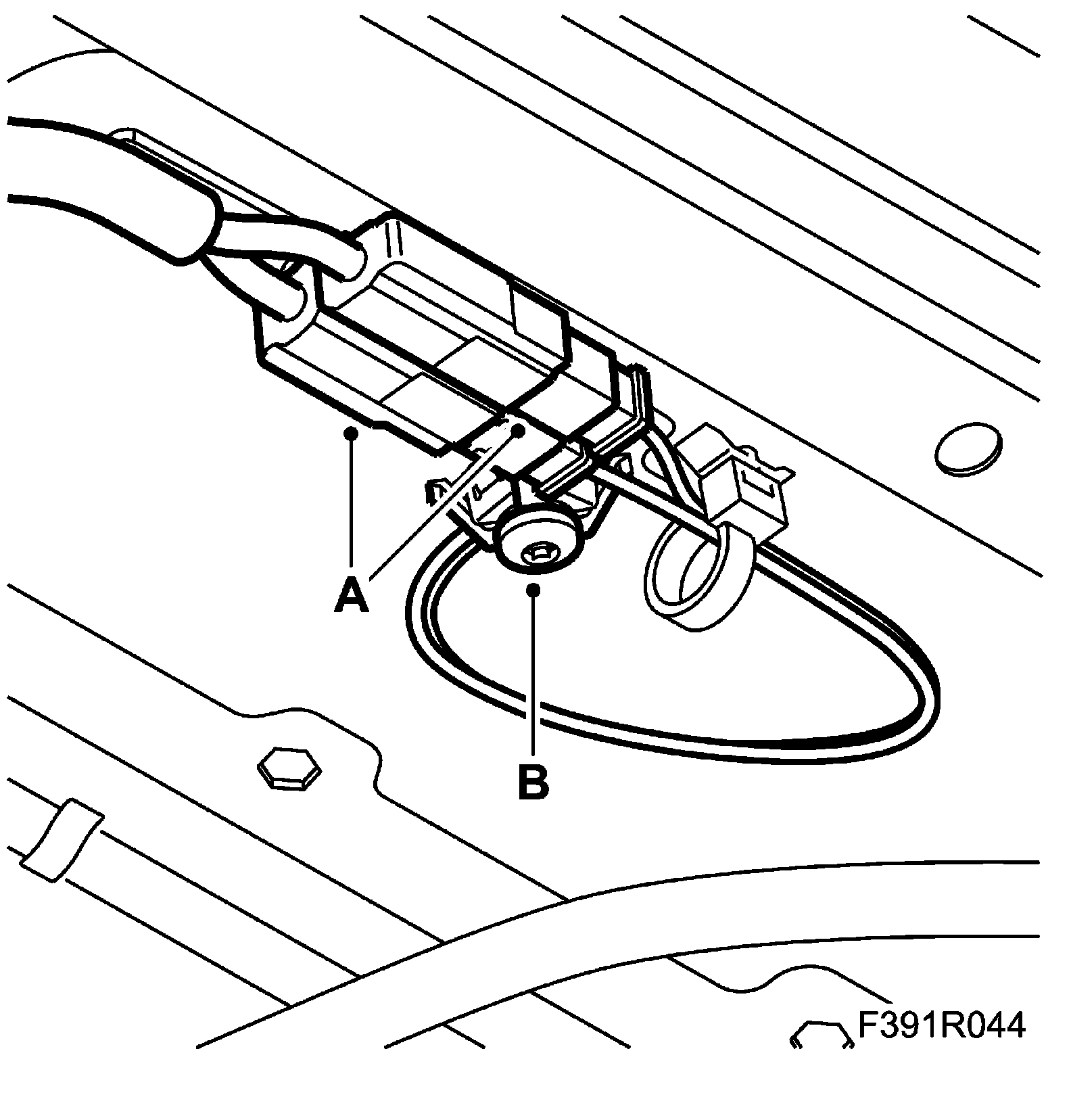

2. Remove the antenna:





^ Unplug the connector (A).
^ Remove the bolt (B) and antenna.

To fit
1. Fit the antenna:





^ Place the antenna in installation position and fit the nut and bolt (B).
^ Plug in the connectors (A).
2. Fit the boot lid trim.
