5D

Antenna, Radio, Window Glass (625), 5D

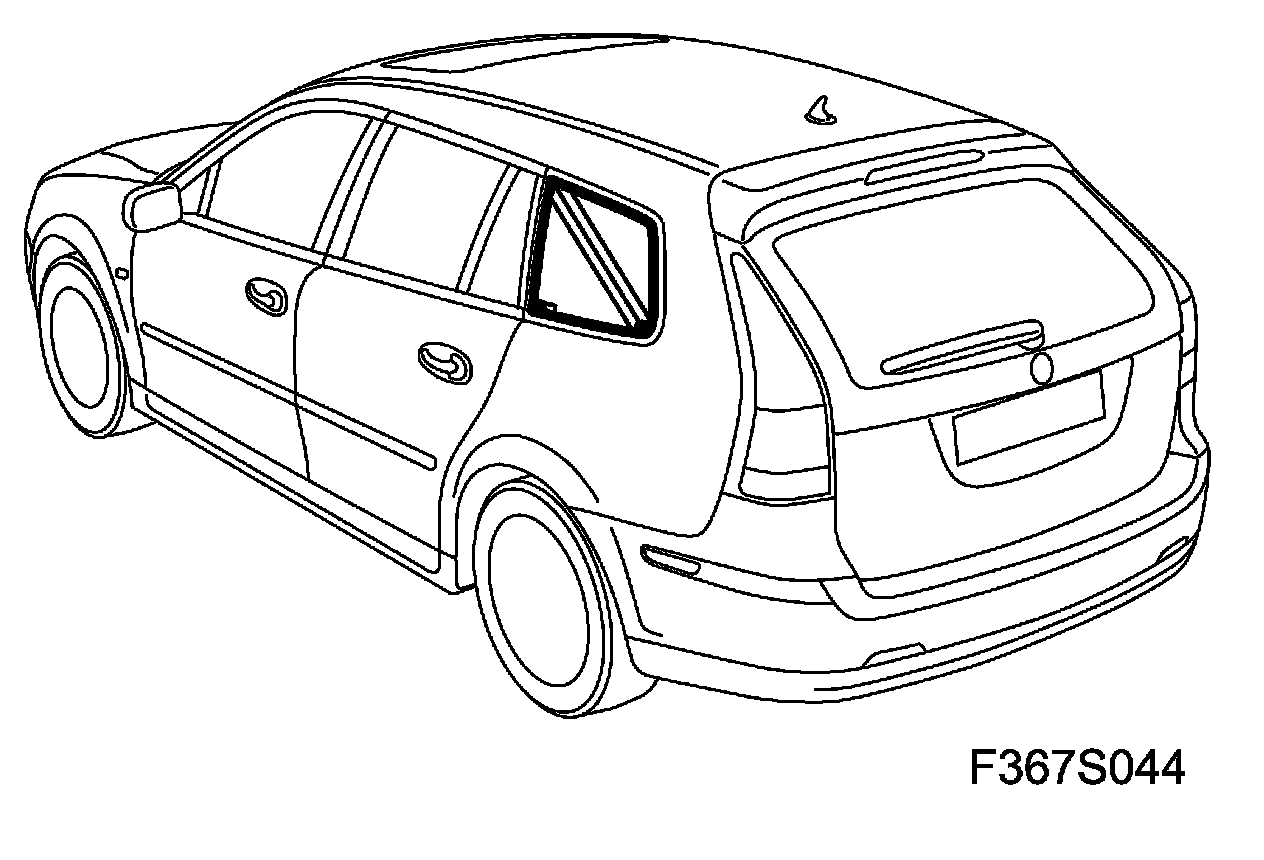

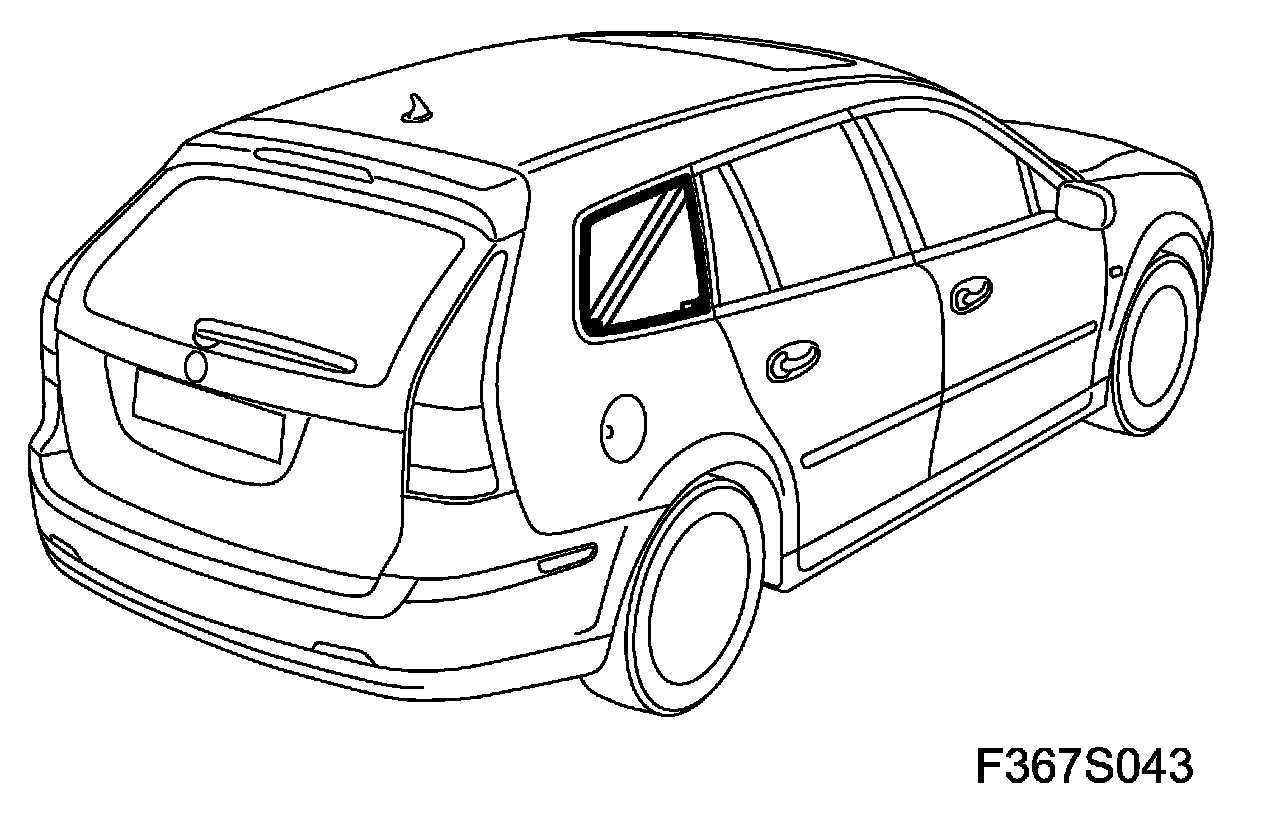

Location
Integrated in car's rear side windows.








Main task
AM and FM band radio reception. Type Metal wire on side window.

Type
Metal wire on side window.

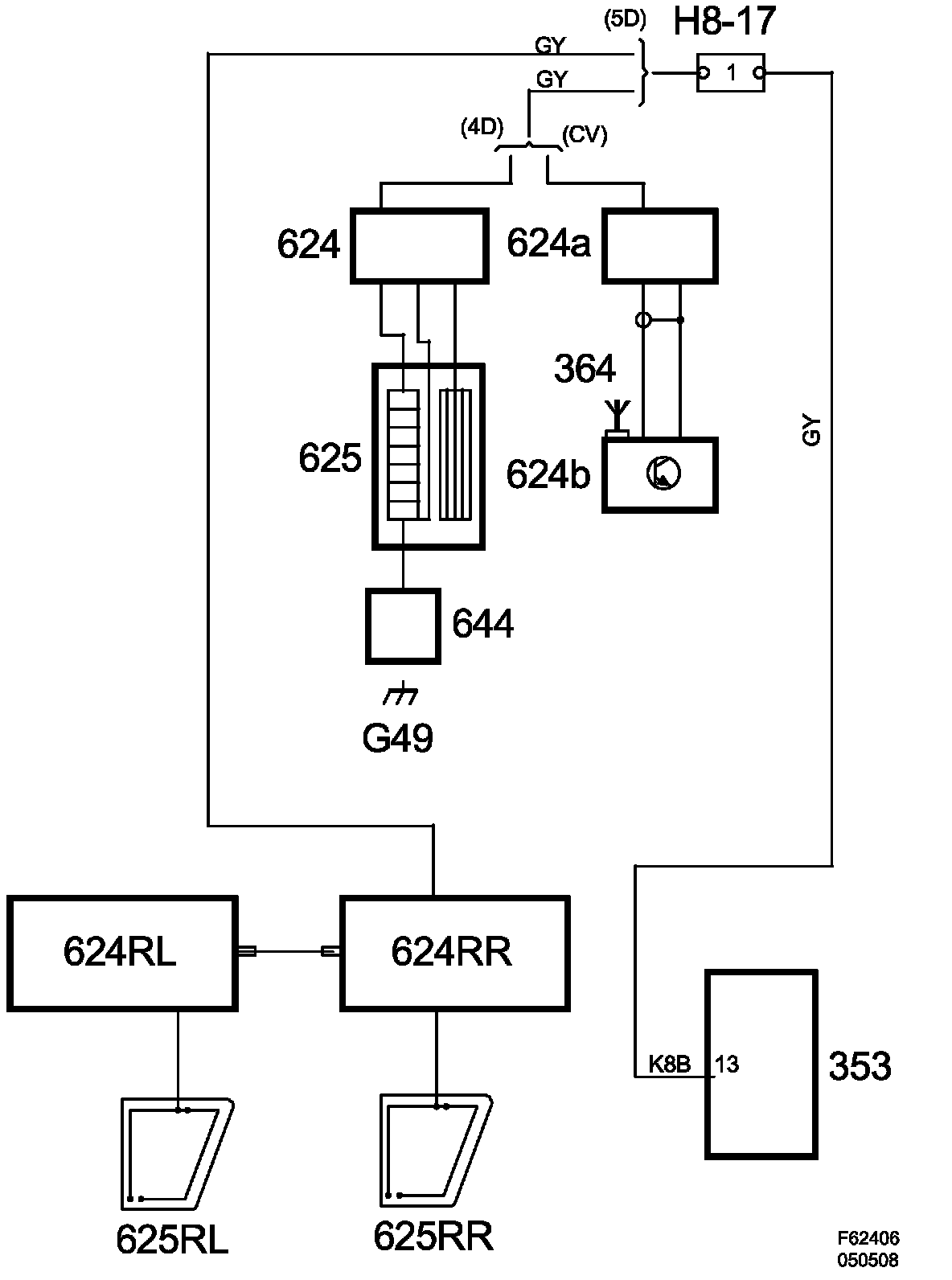

Connection





The antennas for radio reception are integrated in the rear side windows. The AM/FM antenna is located in the rear right side window and the FM antenna in the rear left side window. To amplify the antenna signal, one or two antenna amplifiers are fitted to transmit the amplified antenna signal to the main radio unit.
