P0633

P0633 00

Control Module not Added







Fault symptom
- The car will not start.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition on for at least 3 s.

Fault criteria:
- Security code not programmed.

Dependent:
- None

System reaction to a fault:
- Starter motor cannot be started.

OK report:
- Fault criteria NOT fulfilled.

Fault handling:
Type III
(See section Fault handling III, "Other emission-related components and functions" for more information.)

Diagnostic help

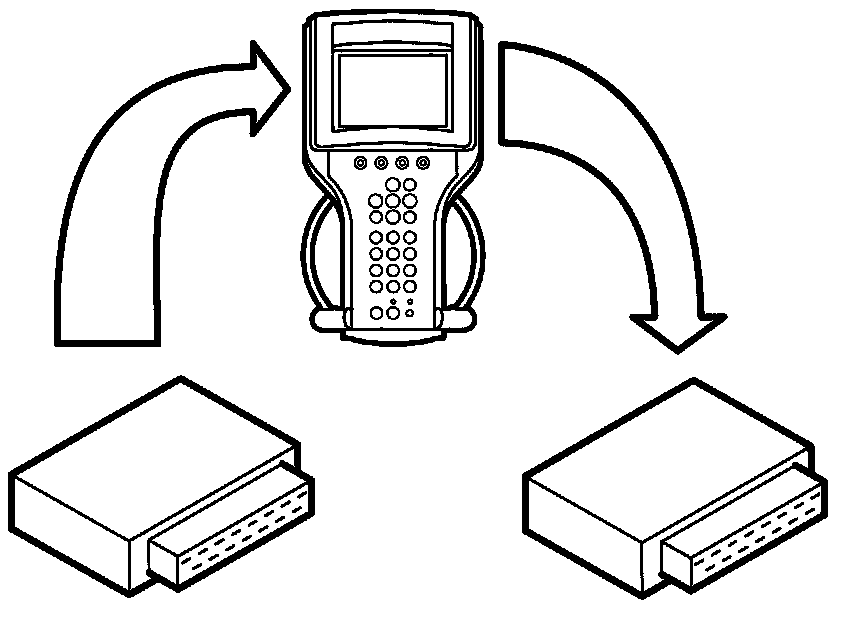

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
