B2911

B2911 00

ICM or CIM Not Added







On-board diagnosis

Type of diagnosis:
- Diagnostics carried out according to valid fix code from the transponder.

Enable criteria:
- Ignition ON.

Fault criteria:
- Incorrect immobilizer code received from ICM.

Diagnostic help

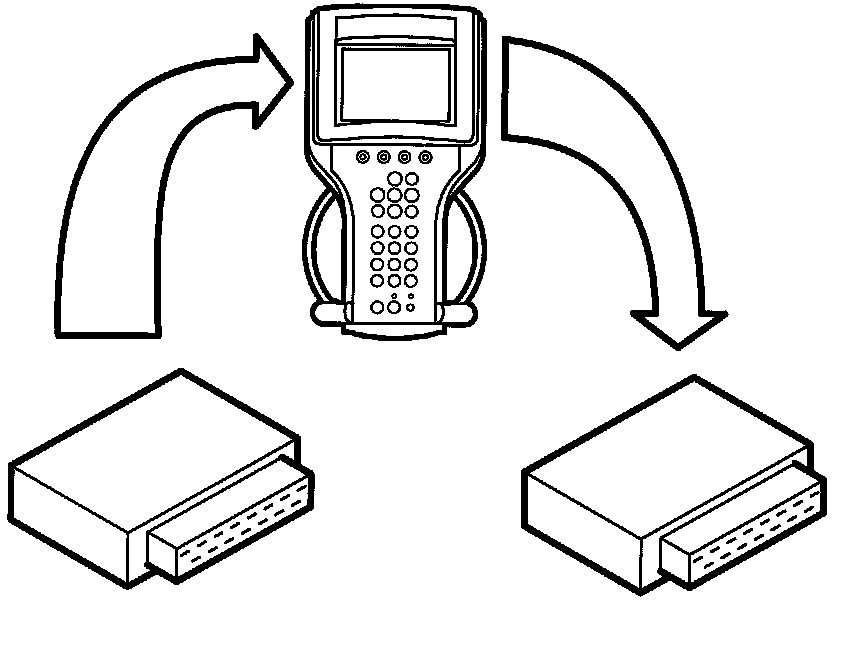

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
