B0092 05

B0092 05

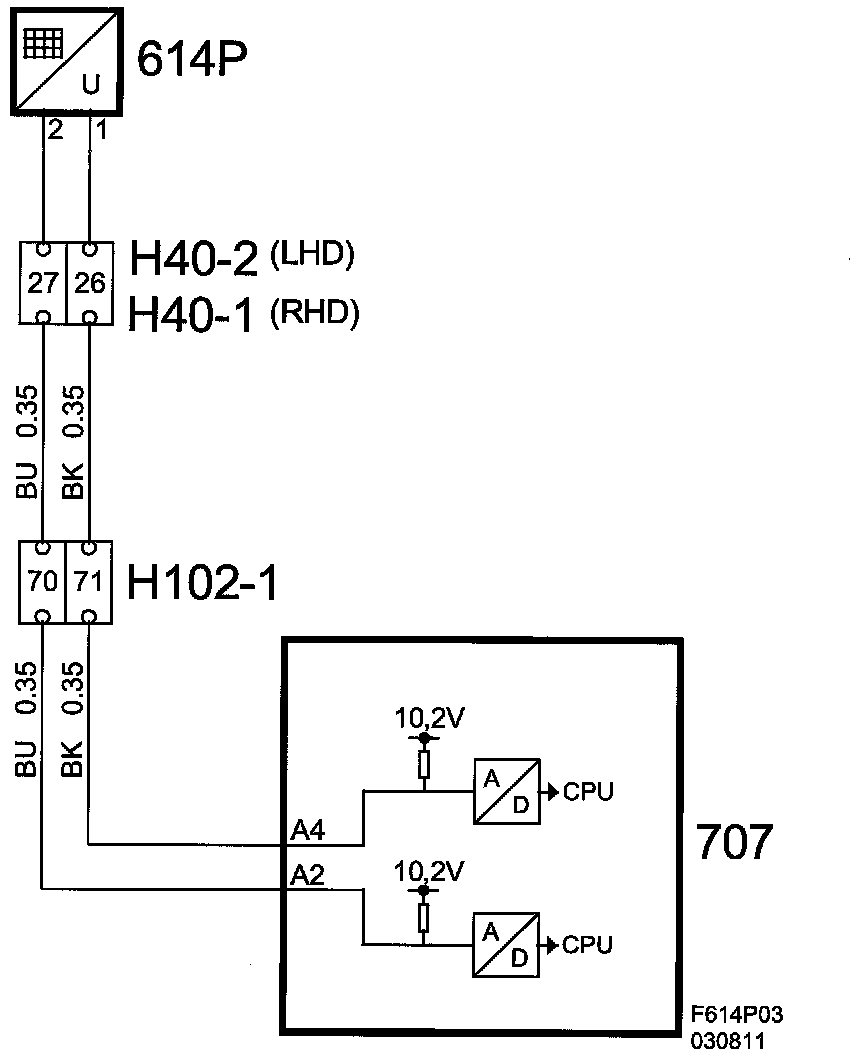

Passenger Seat Sensor Circuit, Open/Short To B+







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module output short circuit to B+.

System reaction to a fault:
- Control module output turned off for 2 seconds.

OK report:
- Fault criteria NOT fulfilled.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
