Transmission Case and Control Device

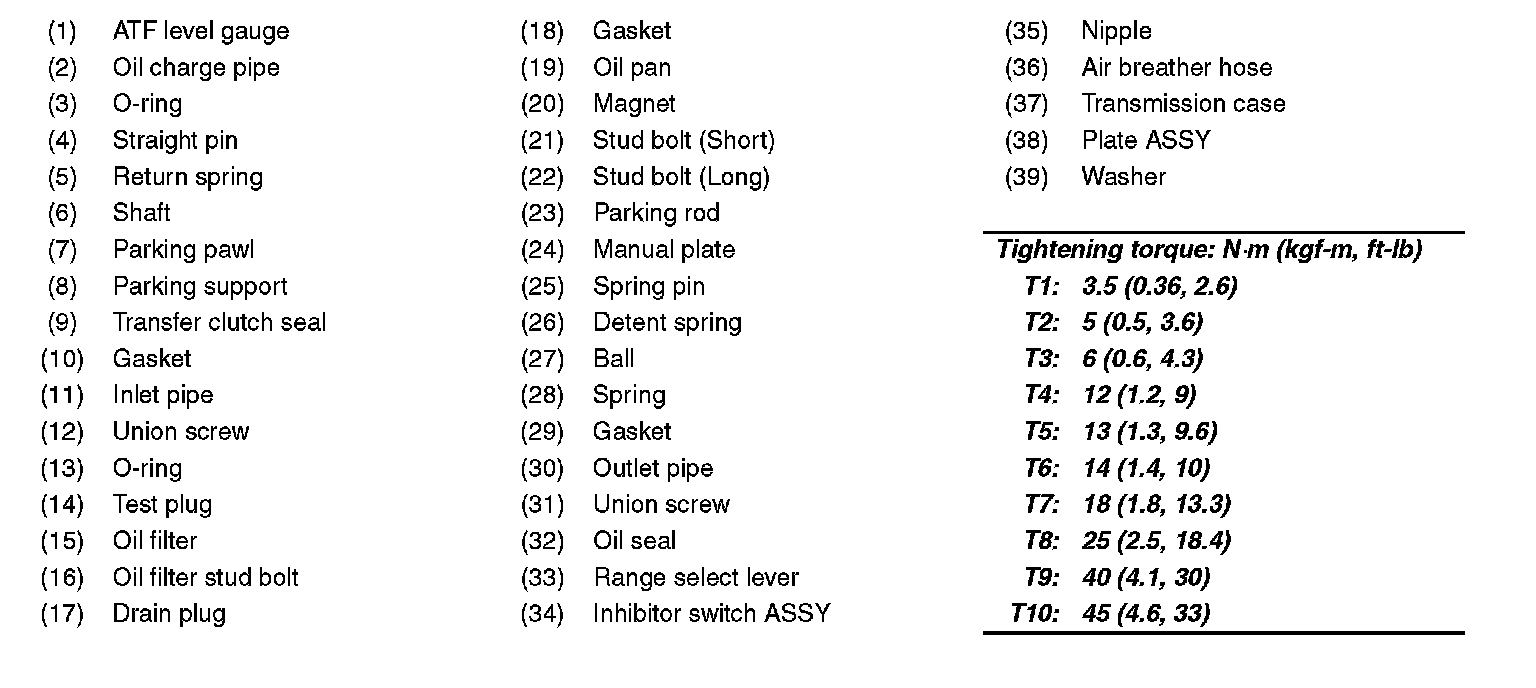

TRANSMISSION CASE AND CONTROL DEVICE 1:

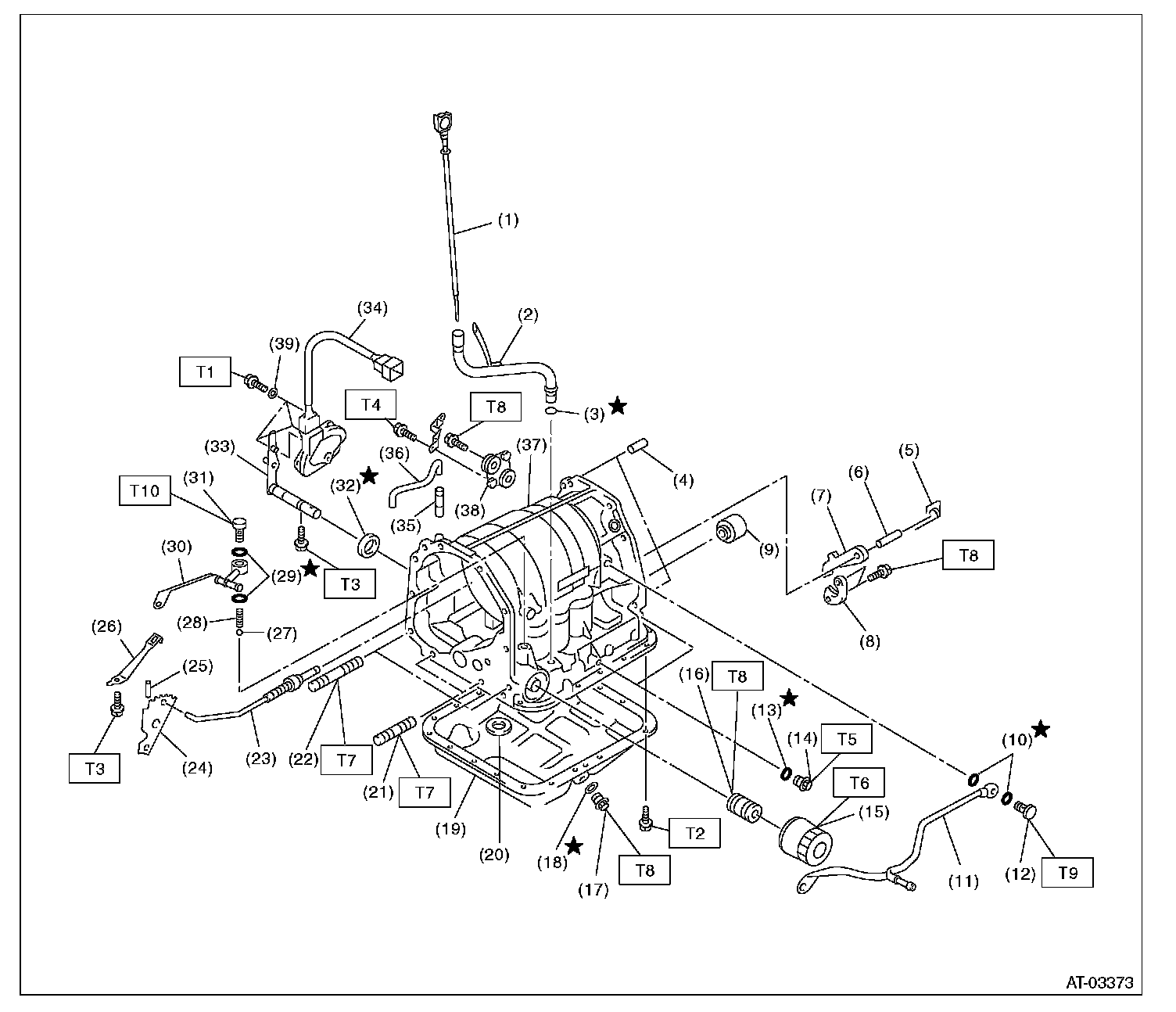

TRANSMISSION CASE AND CONTROL DEVICE 2:
