Home >> Saab >> 2006 >> 9-2X F4-2.5L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Transfer and Extension Case With VTD

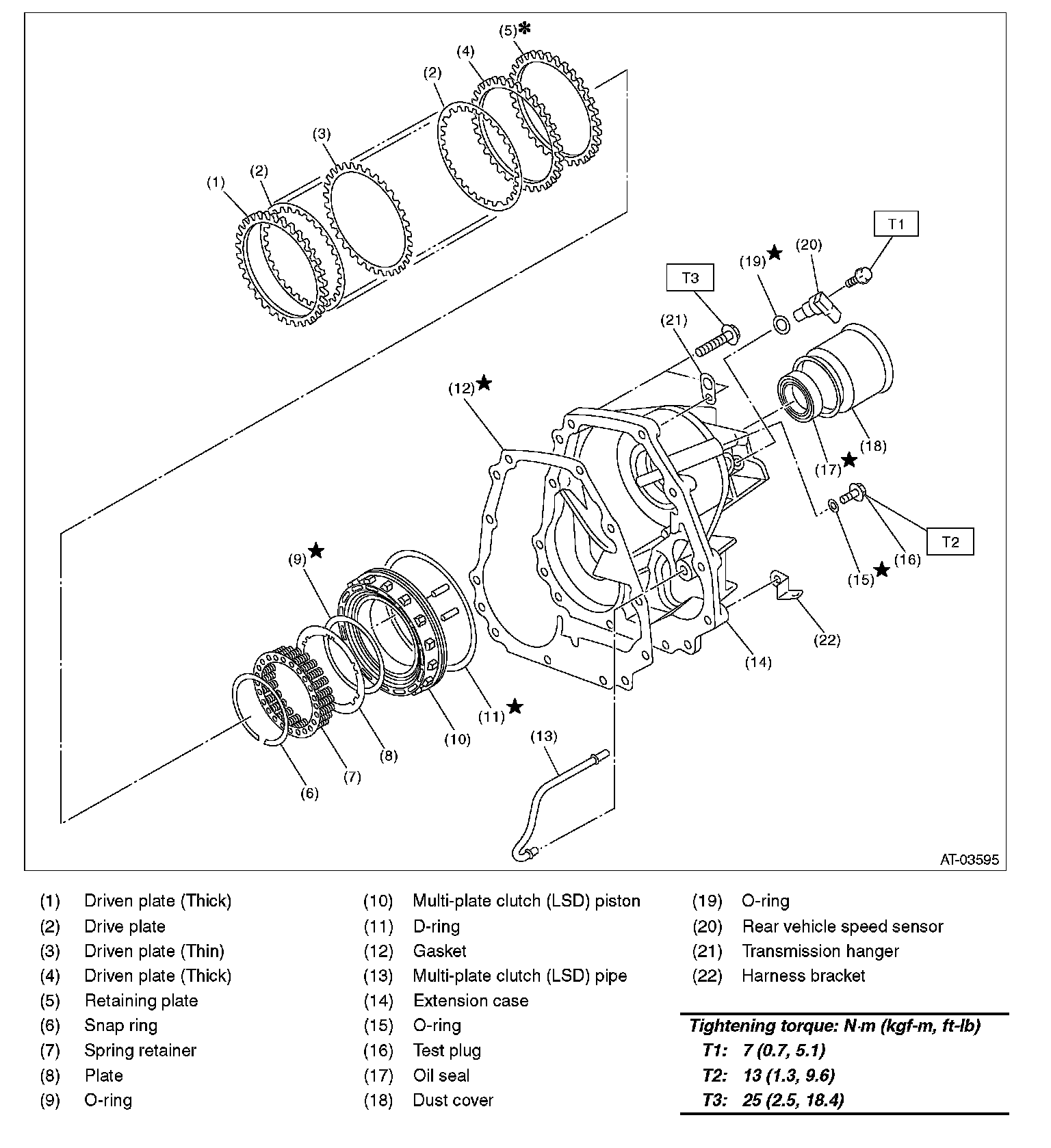

Transfer and Extension Case With VTD

TRANSFER AND EXTENSION CASE With VTD:
