Windscreen Wiper Motor, LHD

Windscreen Wiper Motor, LHD

To remove
1. Remove the windscreen wiper assembly.

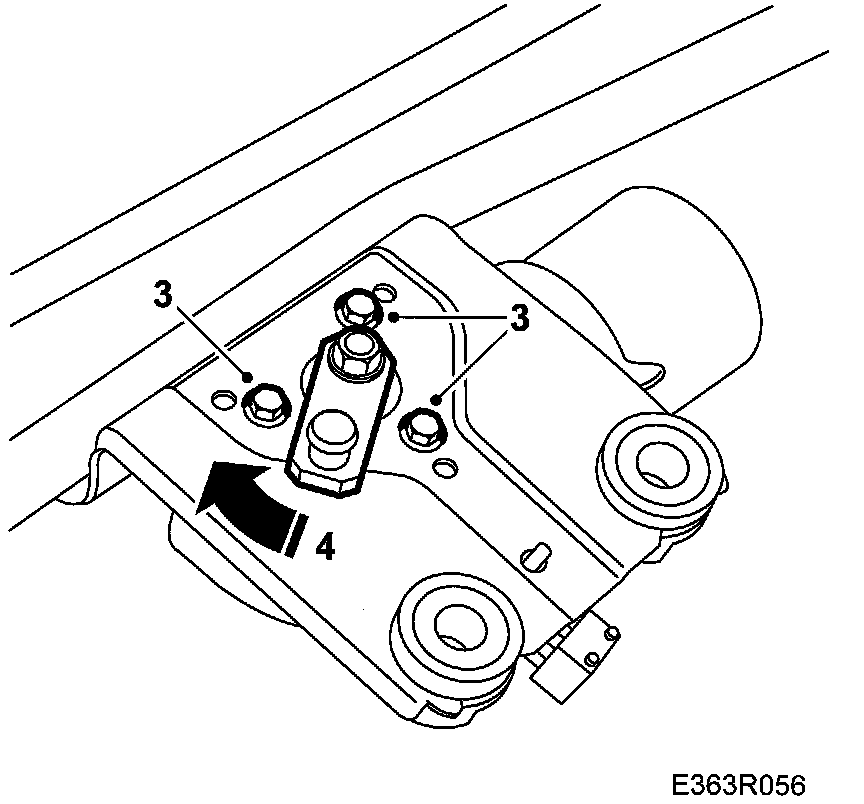

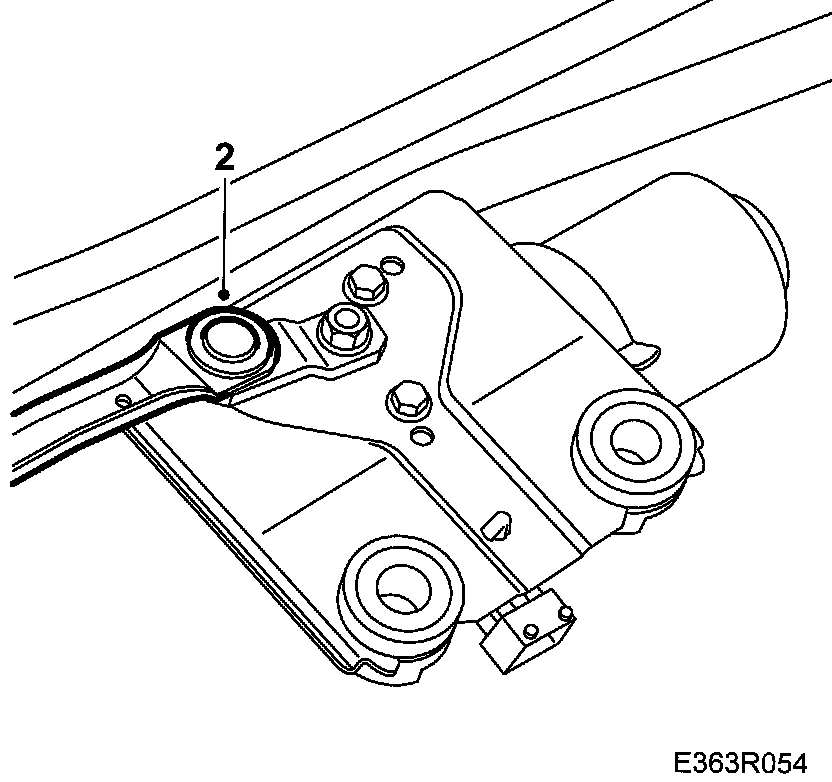

2. Remove the link arm from the wiper motor crank arm.







3. Turn the wiper motor's crank arm slightly.







4. Remove the connector clip from the mounting plate.
5. Remove the wiper motor from the mounting plate.

To fit

1. Position the wiper motor on the mounting plate.

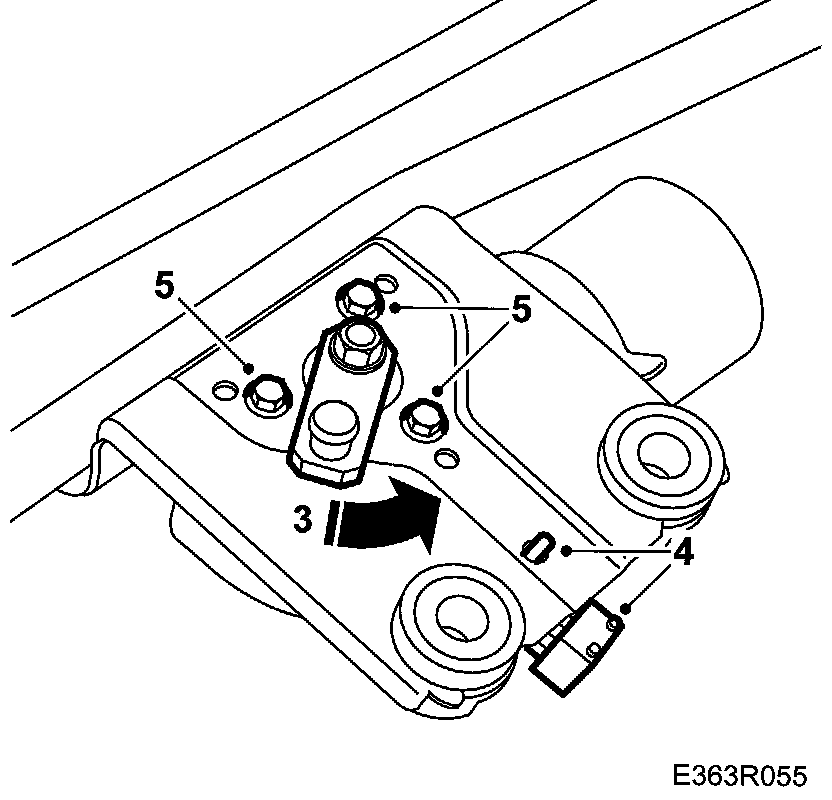

2. Turn the wiper motor's crank arm slightly.
3. Fit the bolts.







4. Turn the wiper motor's crank arm back to its original position.

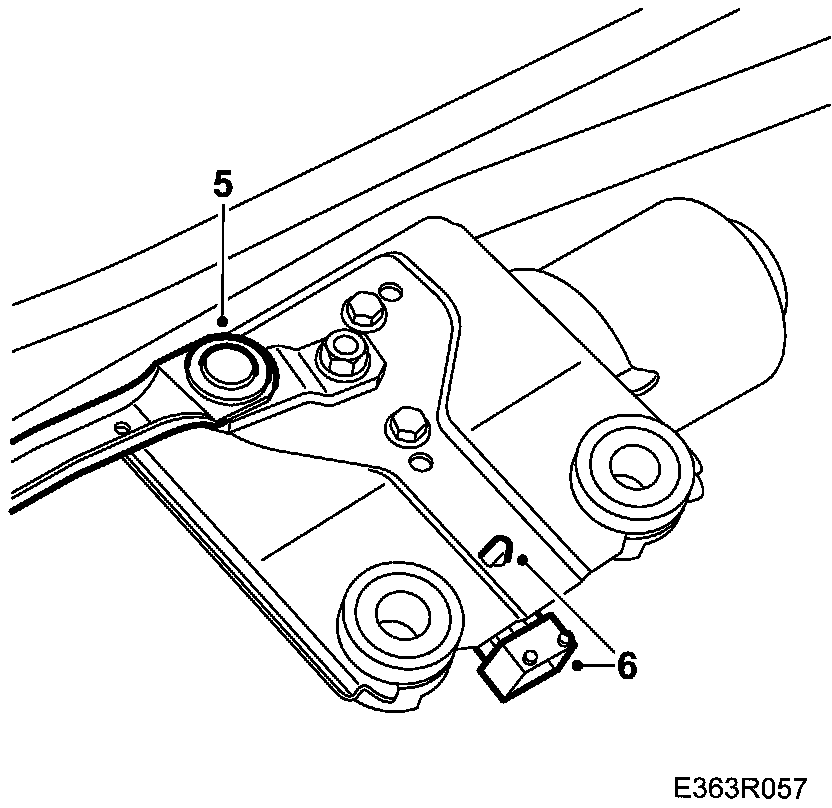

5. Press the link arm onto the wiper motor crank arm.







6. Fit the connector clip to the mounting plate.
7. Place the windscreen wiper assembly in the car and plug in the connector.
8. Turn the ignition key to ON.
9. Check the movement of the windscreen wiper assembly.
10. Fit the Windscreen wiper assembly.
Refer to Wiper Motor Linkage Service and Repair
11. Check the function of the system.
