Removal and Replacement

Washer Fluid Reservoir

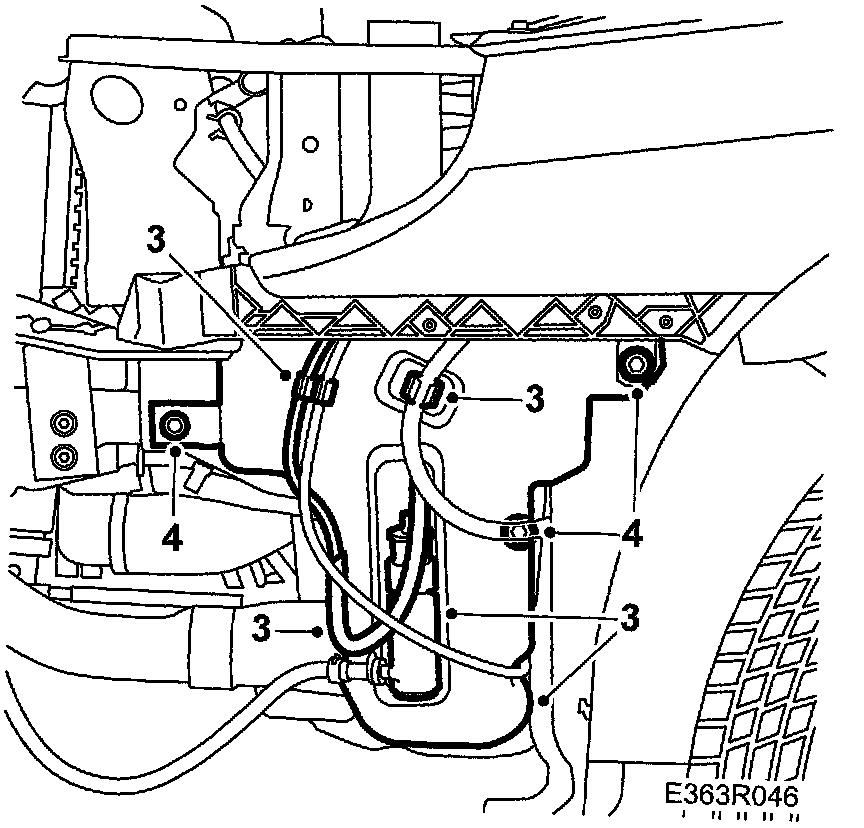

To remove

1. Drain the washer fluid from the reservoir.
2. Remove the bumper.
3. Pull out the two pumps and the level sensor from the reservoir and let them hang by their hoses and leads.







4. Remove the washer fluid reservoir.

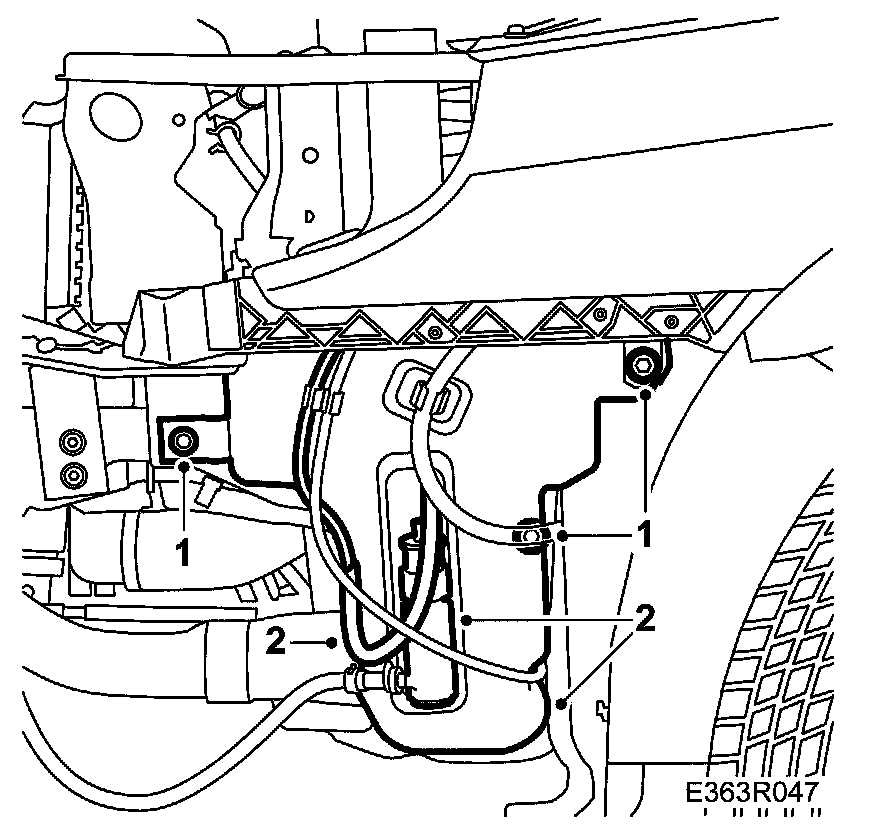

To fit

1. Place the reservoir in its correct position and fit the retaining screws.







2. Fit the pumps.
3. Fit the level sensor with its float pointing downwards.
4. Fit the bumper.
5. Lower the car.
6. Fill the reservoir with washer fluid.
