Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations >> Splice Locations >> Crimp Connection J48, Instrument Harness

Crimp Connection J48, Instrument Harness

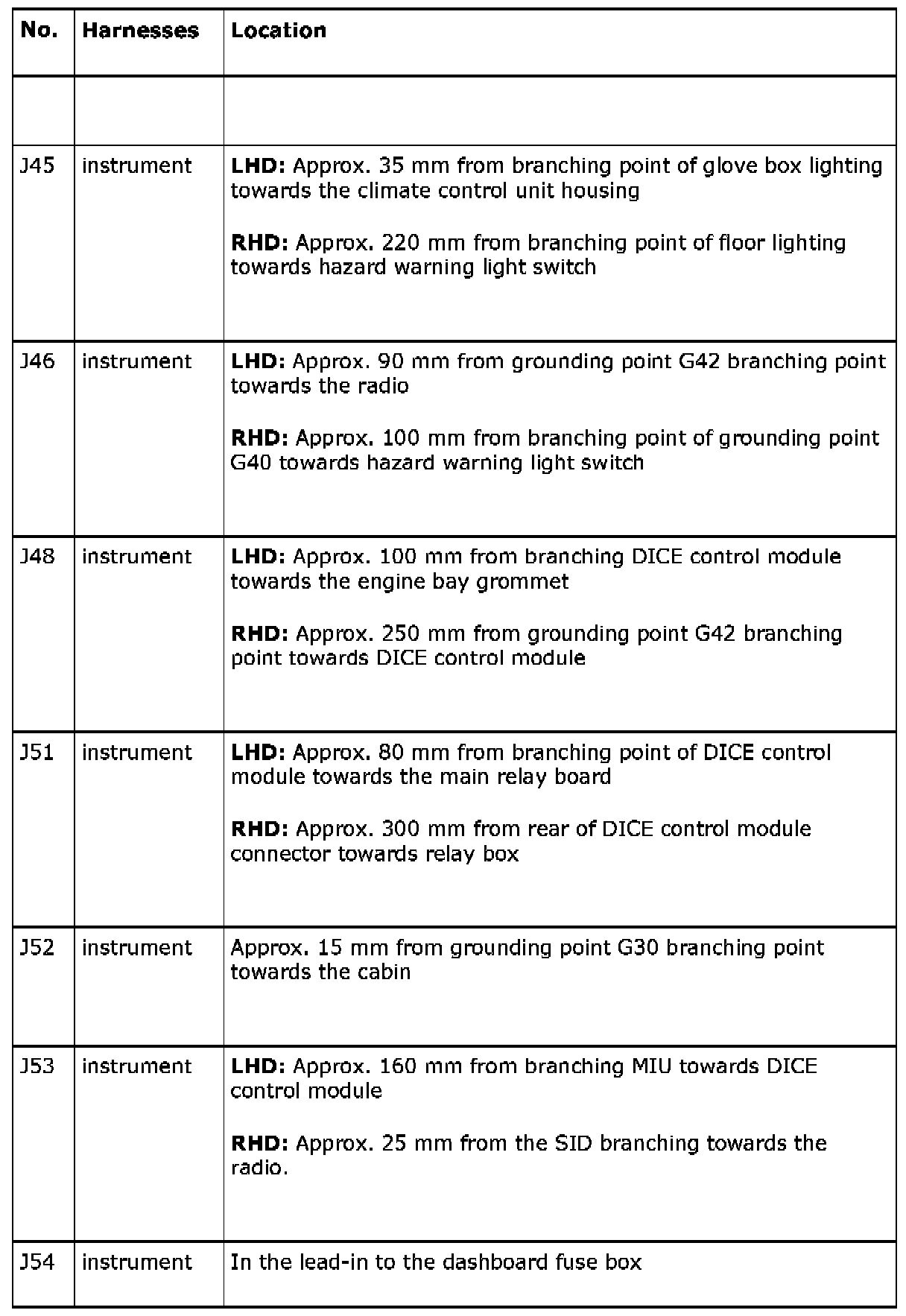

J45 To J54:
