Washer Nozzles, Headlamps

Washer Nozzles, Headlamps

To remove
1. Remove the direction indicator and headlamp.

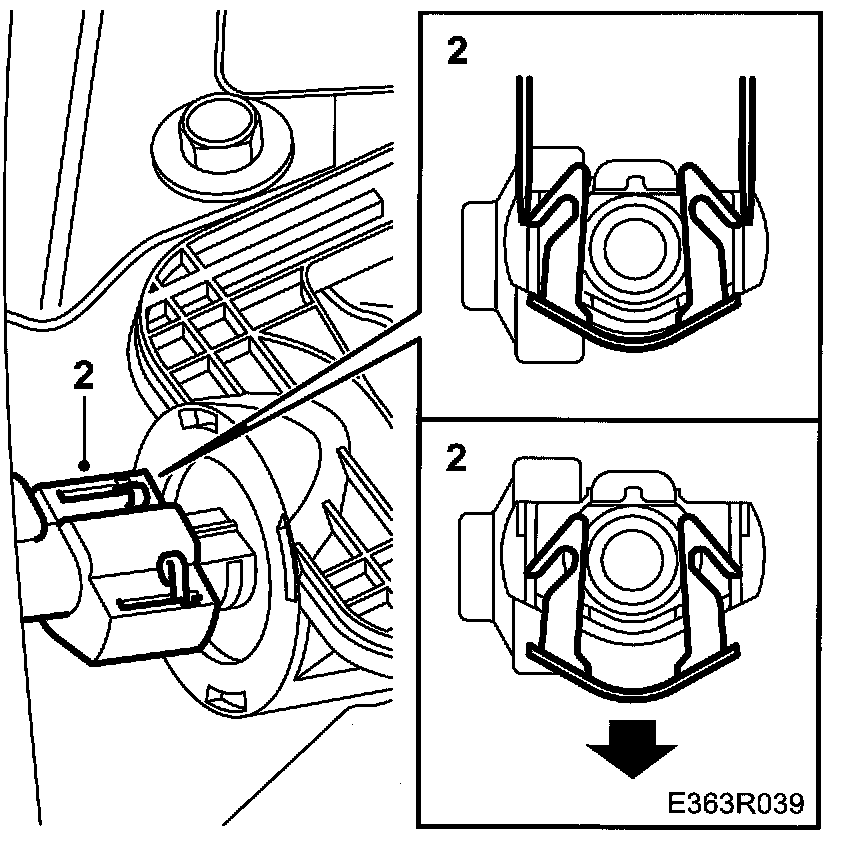

2. Remove the washer jet with associated check valve by pressing in the clip on both sides with two screwdrivers.

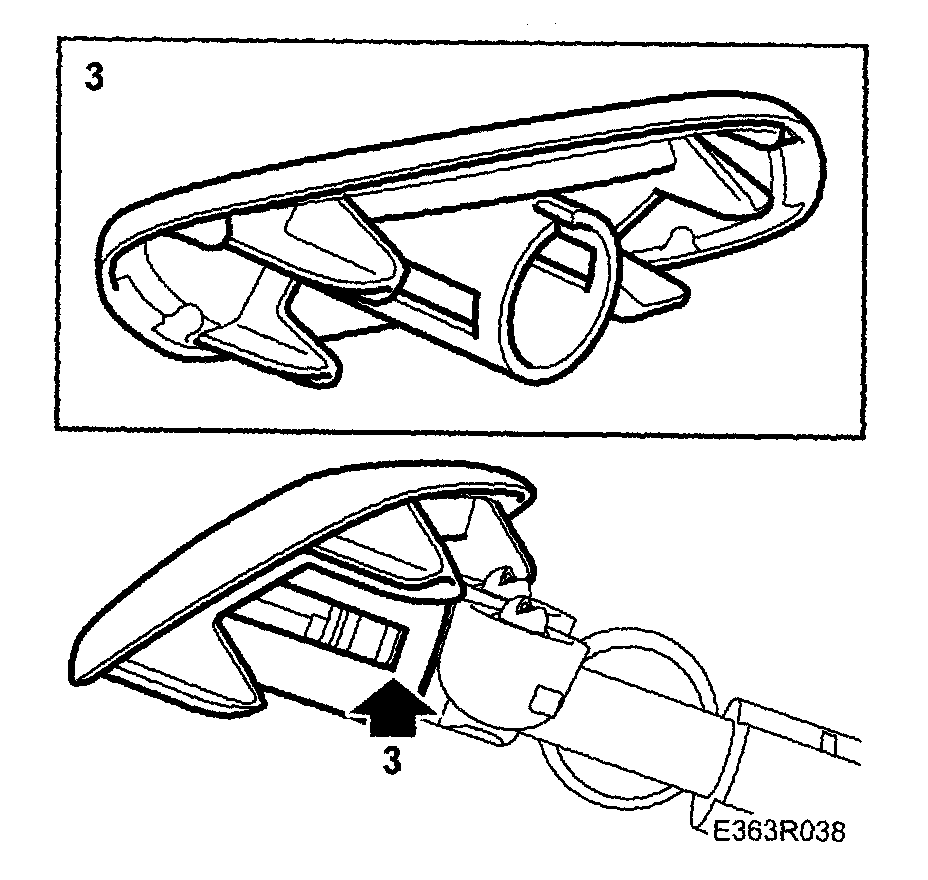

3. Depress the two catches and remove the protective cover.







To fit

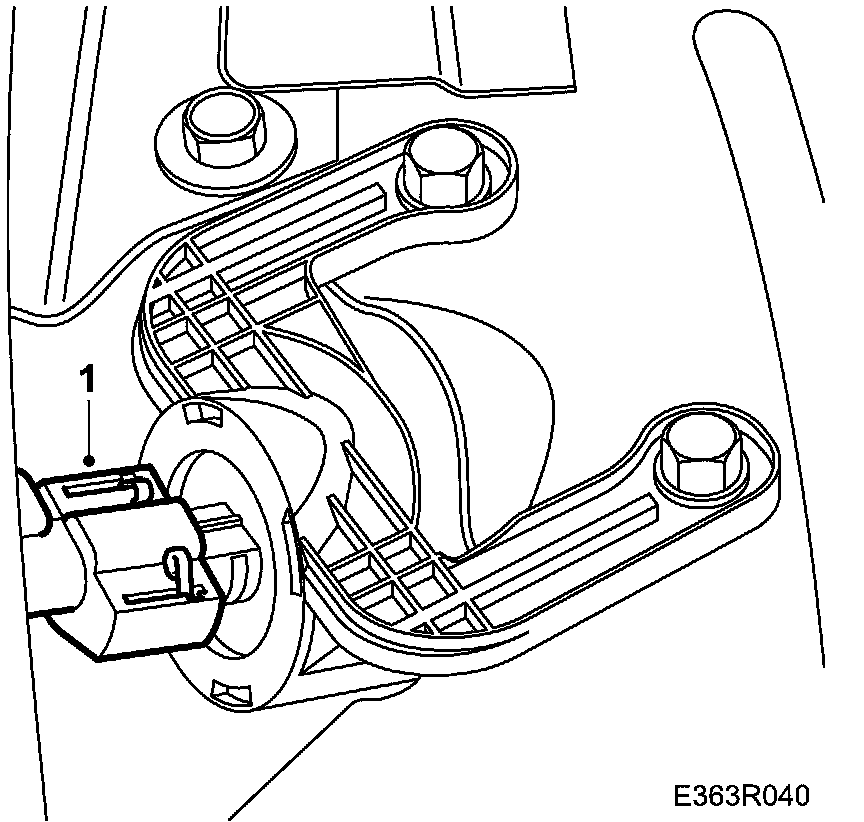

1. Fit the clip to the washer nozzle and fit the washer nozzle.

IMPORTANT: Check that the clip locks correctly. If not, use a new clip.

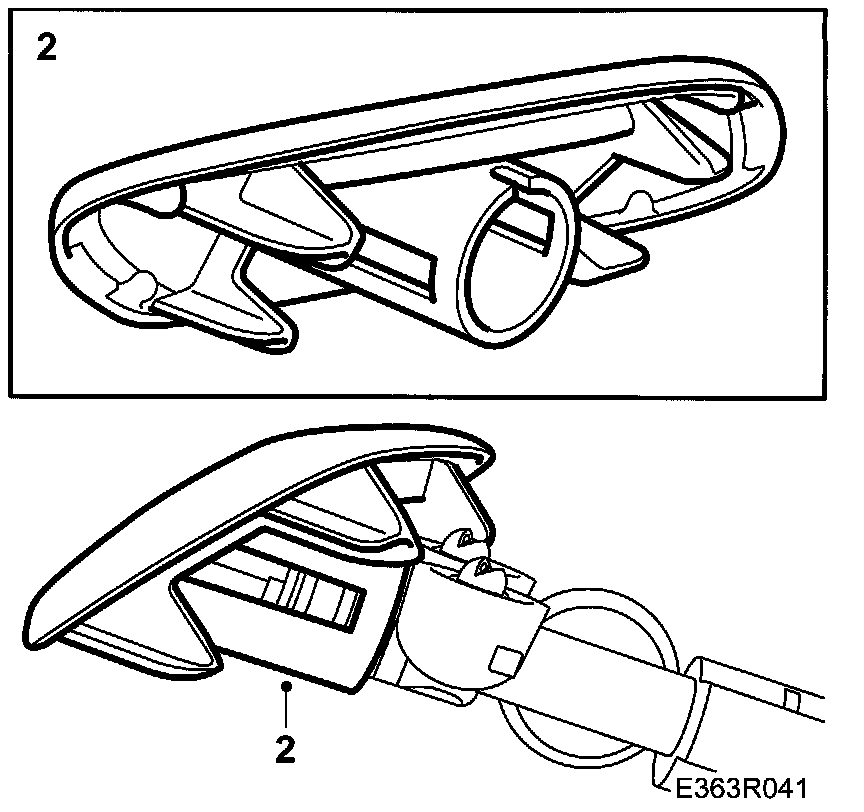

2. Pull out the telescopic cylinder and press on the protective cover.







3. Fit the direction indicator and headlamp.
