Headlamp Washer Pump: Service and Repair

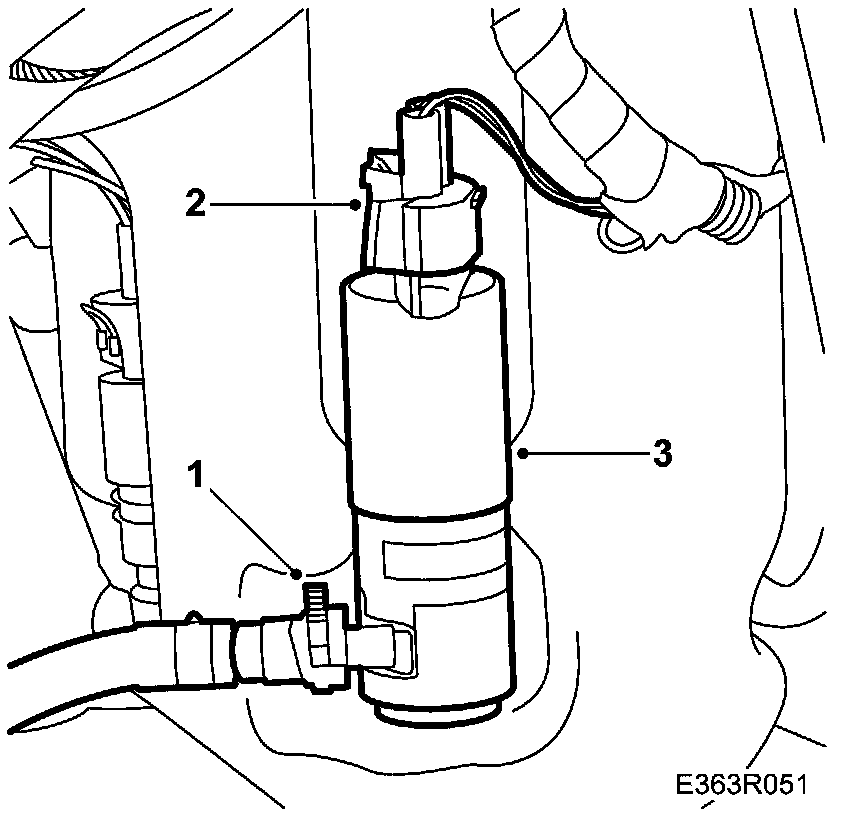

Washer Pump, Headlamps

To remove
1. Drain the washer fluid reservoir.
2. Raise the car.
3. Detach the washer pump from the washer fluid reservoir.







4. Unplug the pump.
5. Detach the pump hose by pressing in the clip.

To fit

1. Connect the pump hose by pressing in the clip.







2. Plug in the pump.
3. Press the washer pump onto the washer fluid reservoir.
4. Lower the car.
5. Fill with washer fluid.
