Headlamp Washer Hose: Service and Repair

Headlamp Washer Hoses

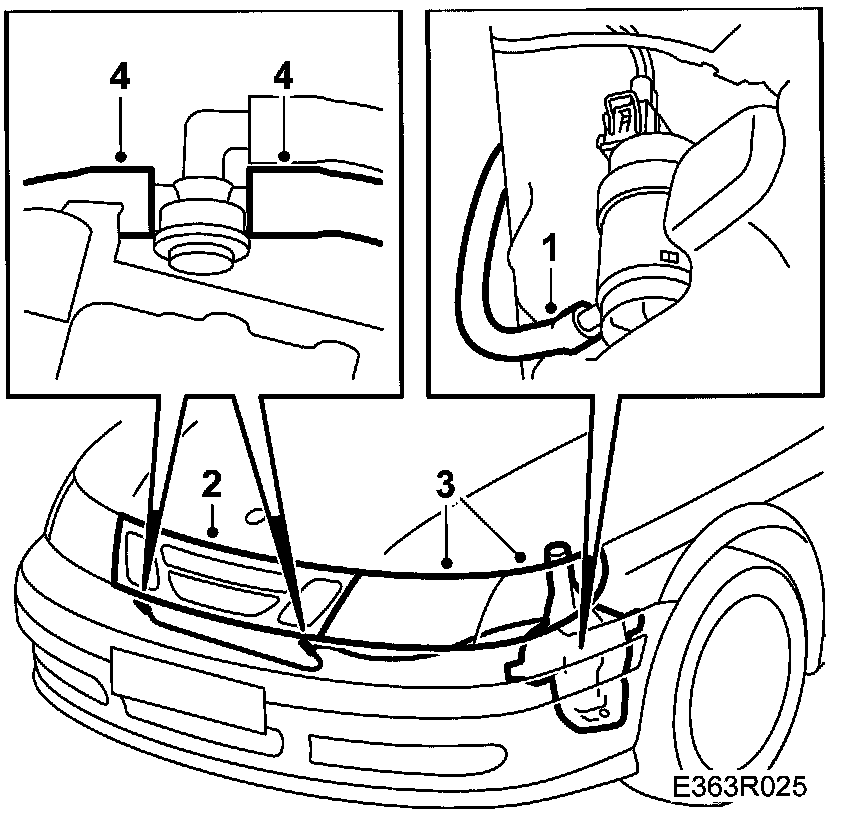

To remove







1. Disconnect the hose from the washer pump.
2. Remove the grille.
3. Remove the direction indicator and headlamp.
4. Pull up the hose.

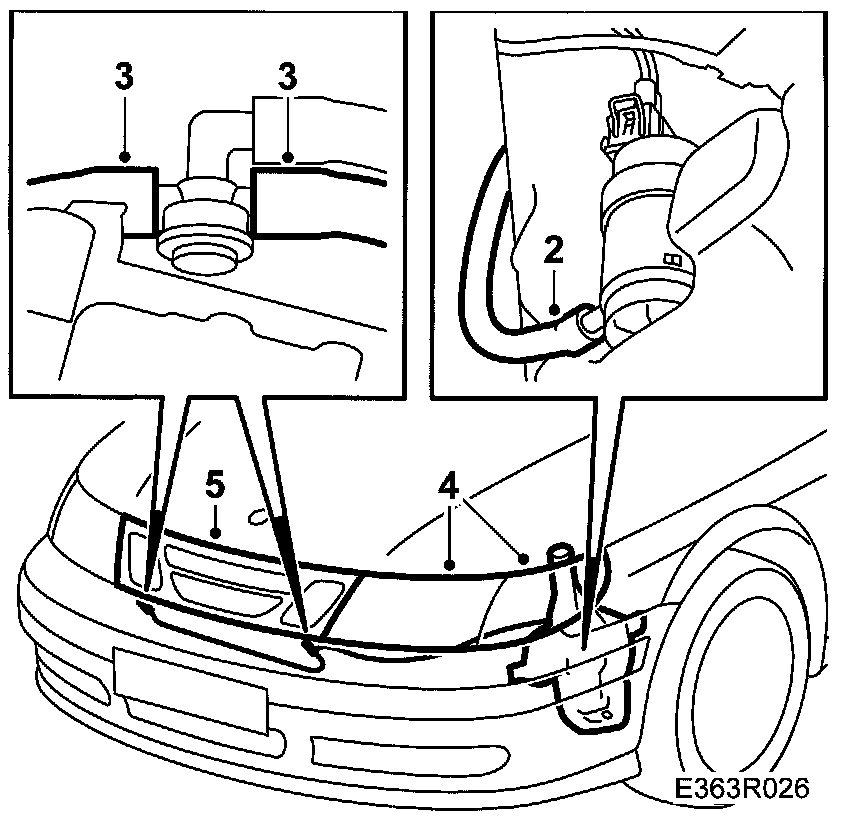

To fit







1. Fit the hose in its original position.
2. Connect the hose to the nozzles.
3. Fit the direction indicator and headlamp.
4. Fit the grille.
