Wiper and Washer Systems: Adjustments

Washer Pattern Adjustment

Adjust the position of the jets

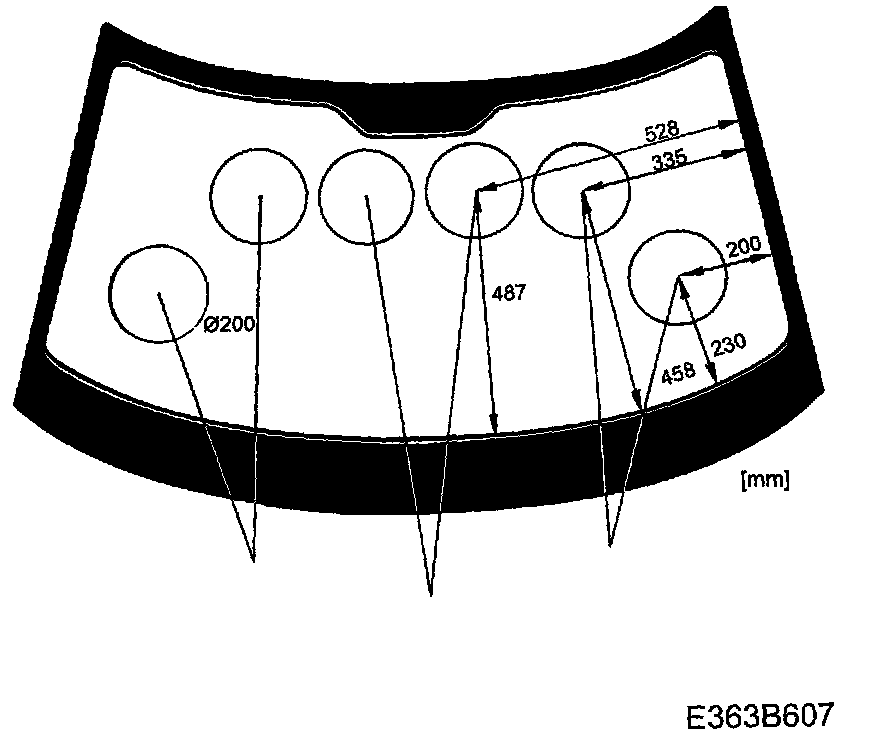

1. Check how the washer fluid strikes the windscreen. Adjust the washer nozzles if needed, see illustration.
