O-Ring & Sealing Ring In Retainer

O-Ring And Sealing Ring In Seal Retainer, Left-Hand

To Remove





Removed gearbox

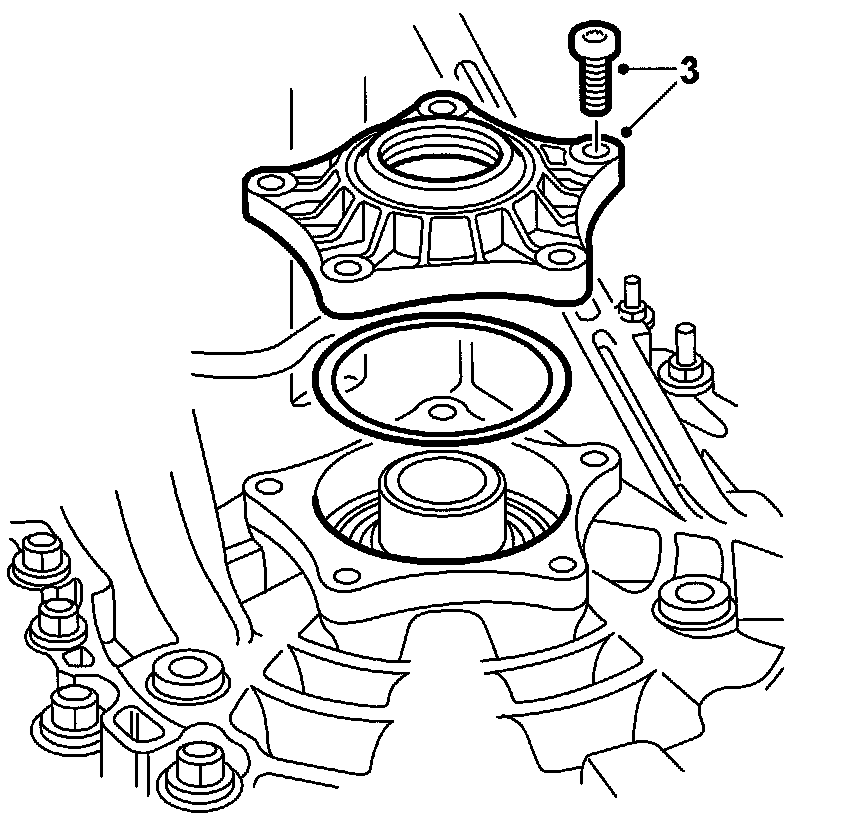

1. Undo the five bolts on the seal retainer and remove the seal retainer. Keep shims, bolts and the seal retainer in a safe place.

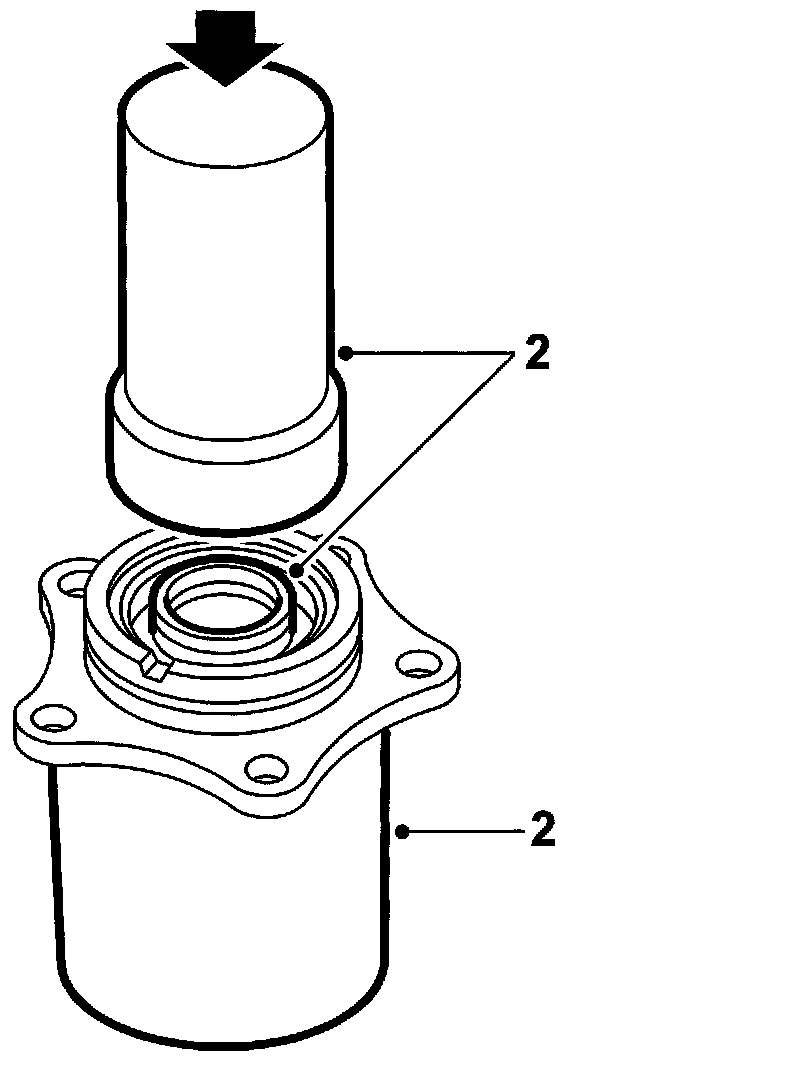

2. Press out the sealing ring using 87 91 311 Sleeve, driver shaft bearing and support 87 92 236.

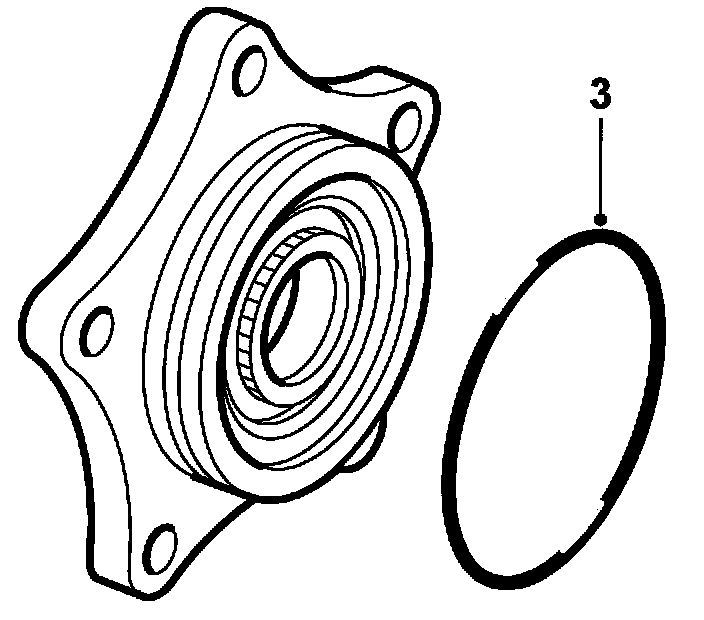

3. Detach the O-ring with a small screwdriver or similar.





To Fit

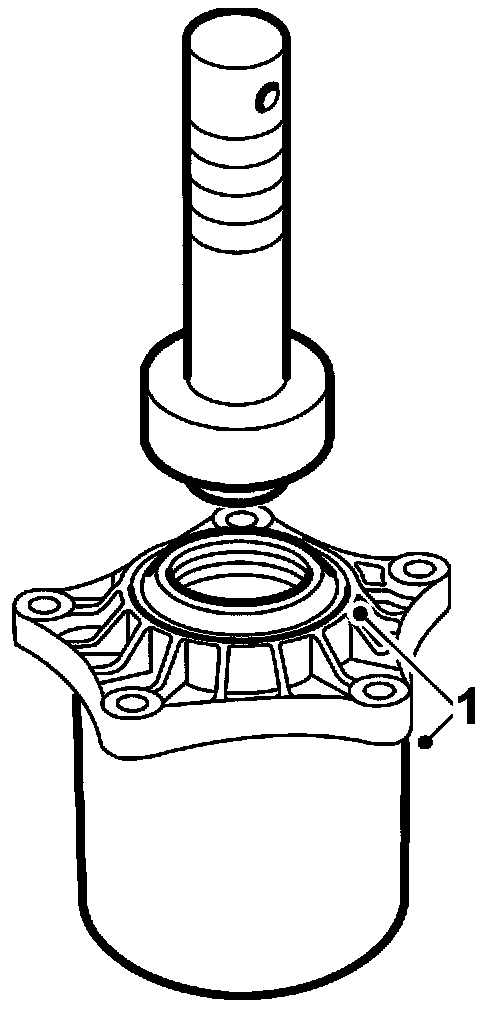

1. Press on the seal ring with drift 87 92 657 until it stops. Use tool 87 92 236 as support.

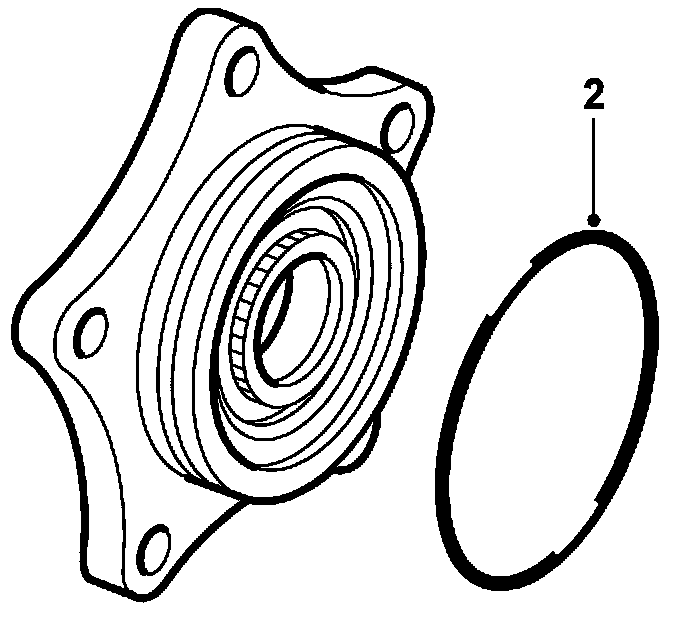

2. Lubricate a new O-ring and carefully fit it.





3. Fit the seal retainer and shims with the bolts. Tighten alternately.





Tightening torque 22 Nm (16 ft. lbs.)
