System Overview
System Overview
System Overview

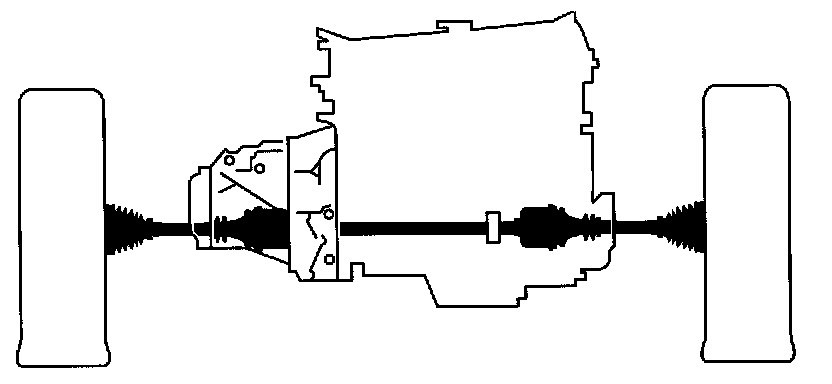

Power is transmitted from the gearbox to the driven wheels via an inner and outer universal joint and two equally long drive shafts, offering good directional stability, even during fast acceleration.
