SPORT Mode Cannot Be Selected



Sport Mode Cannot Be Selected

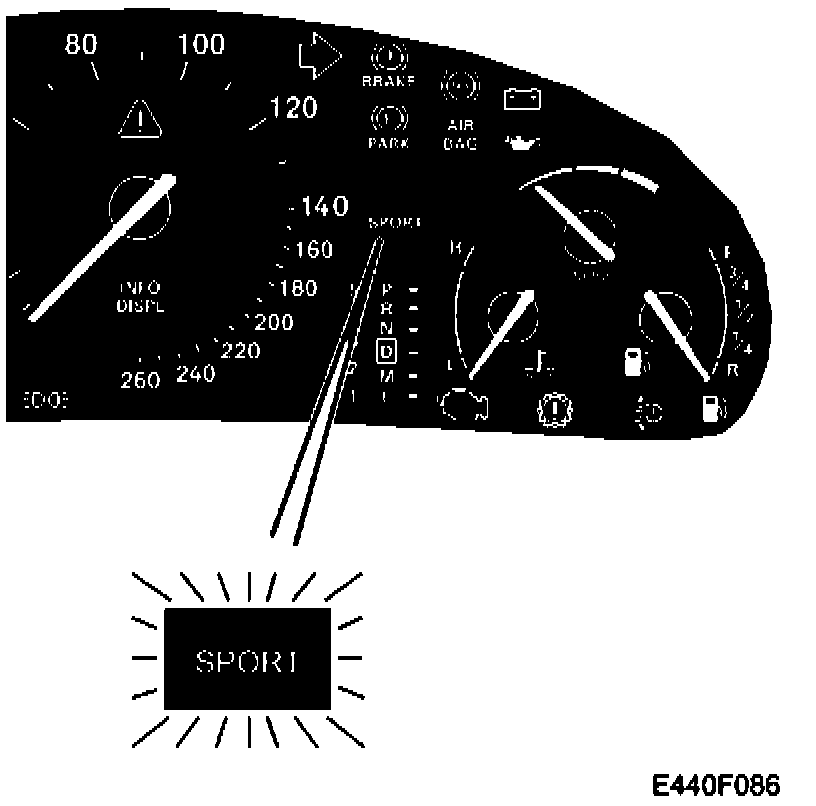

SPORT Indicator On Cluster:





Fault Symptoms
Sport mode cannot be selected.

Conditions
The wiring or switch is faulty.

Diagnostic Help
SPORT mode can be read using the diagnostic tool.

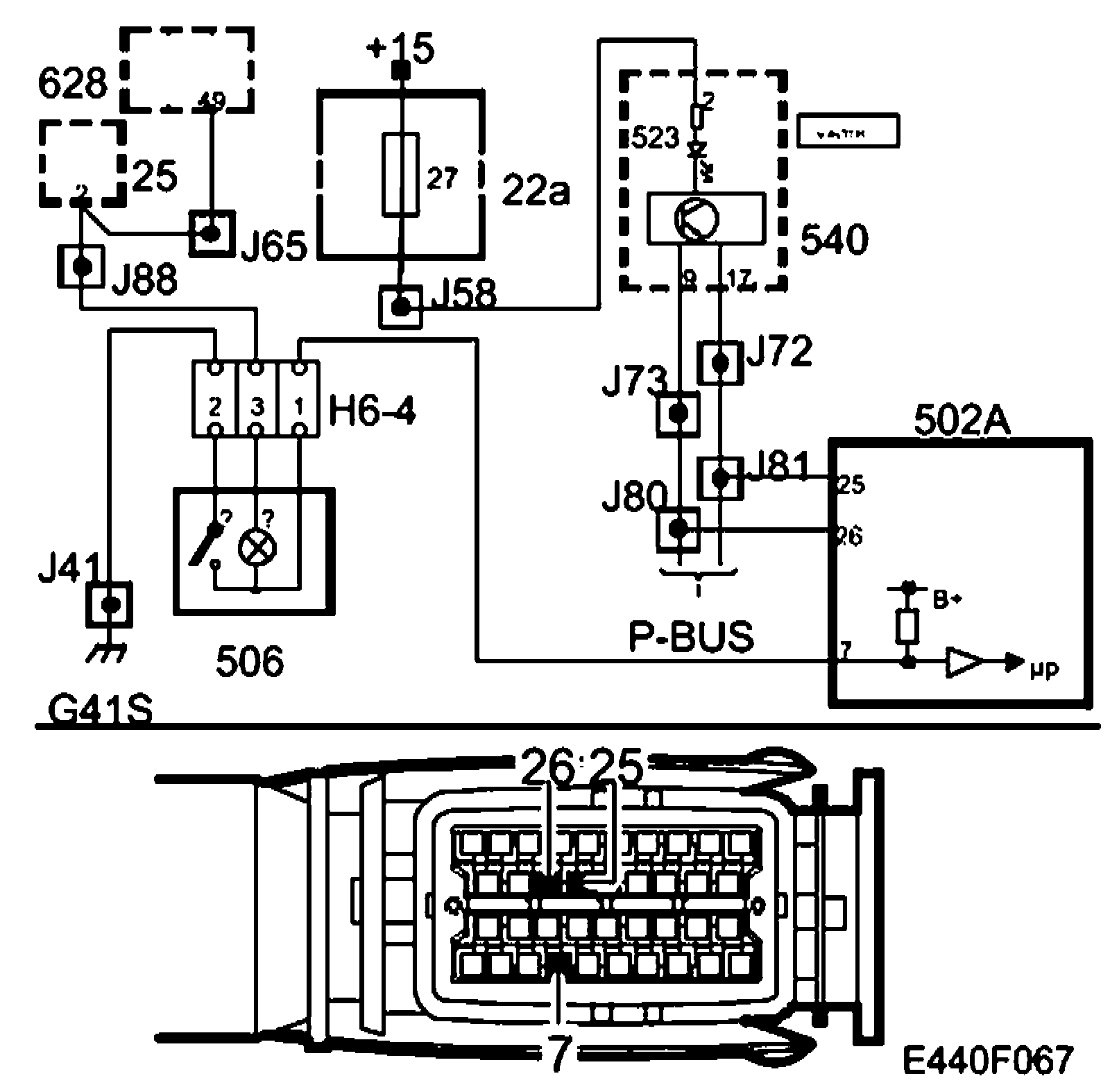

Diagram:

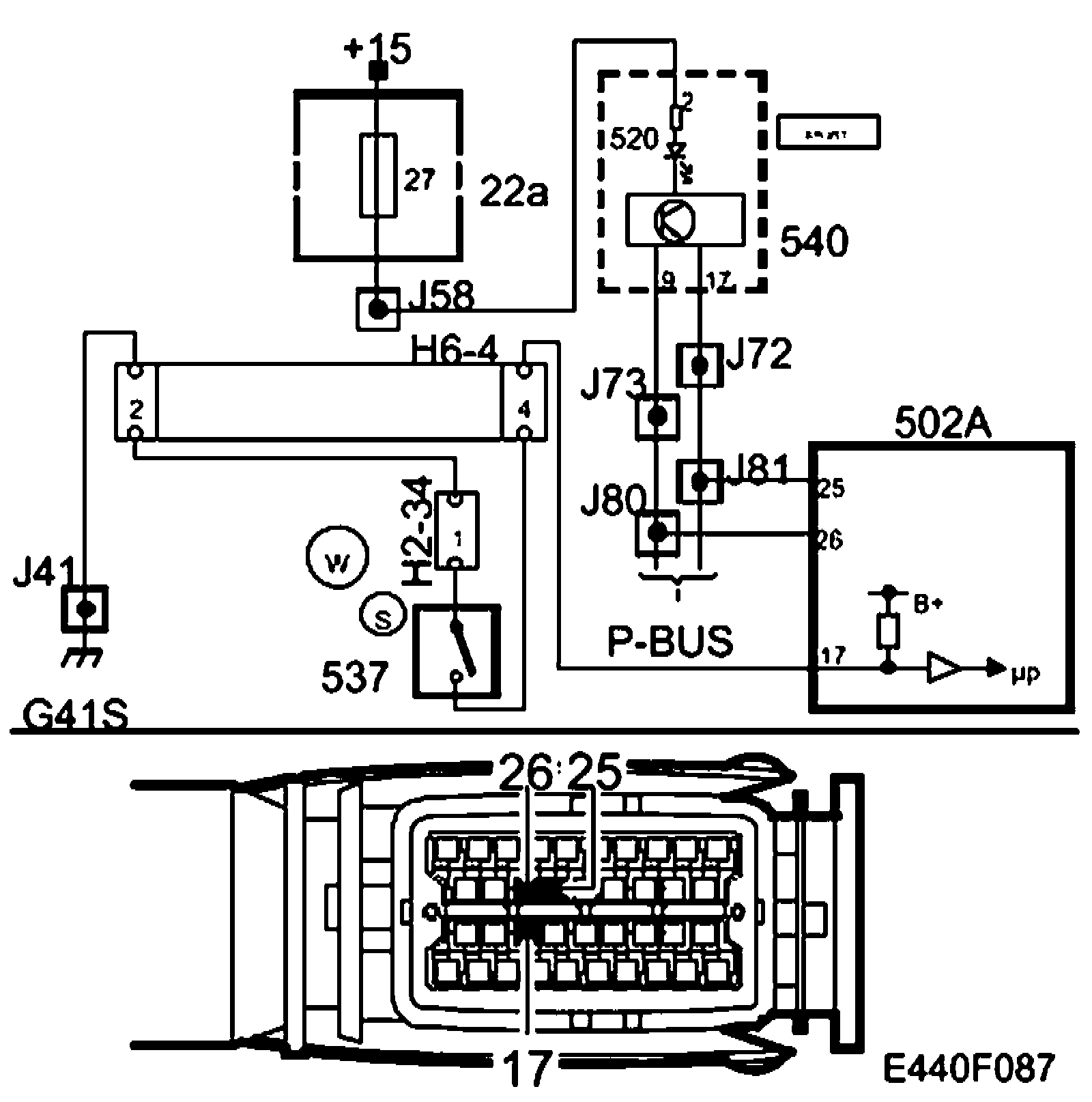

Diagram:
