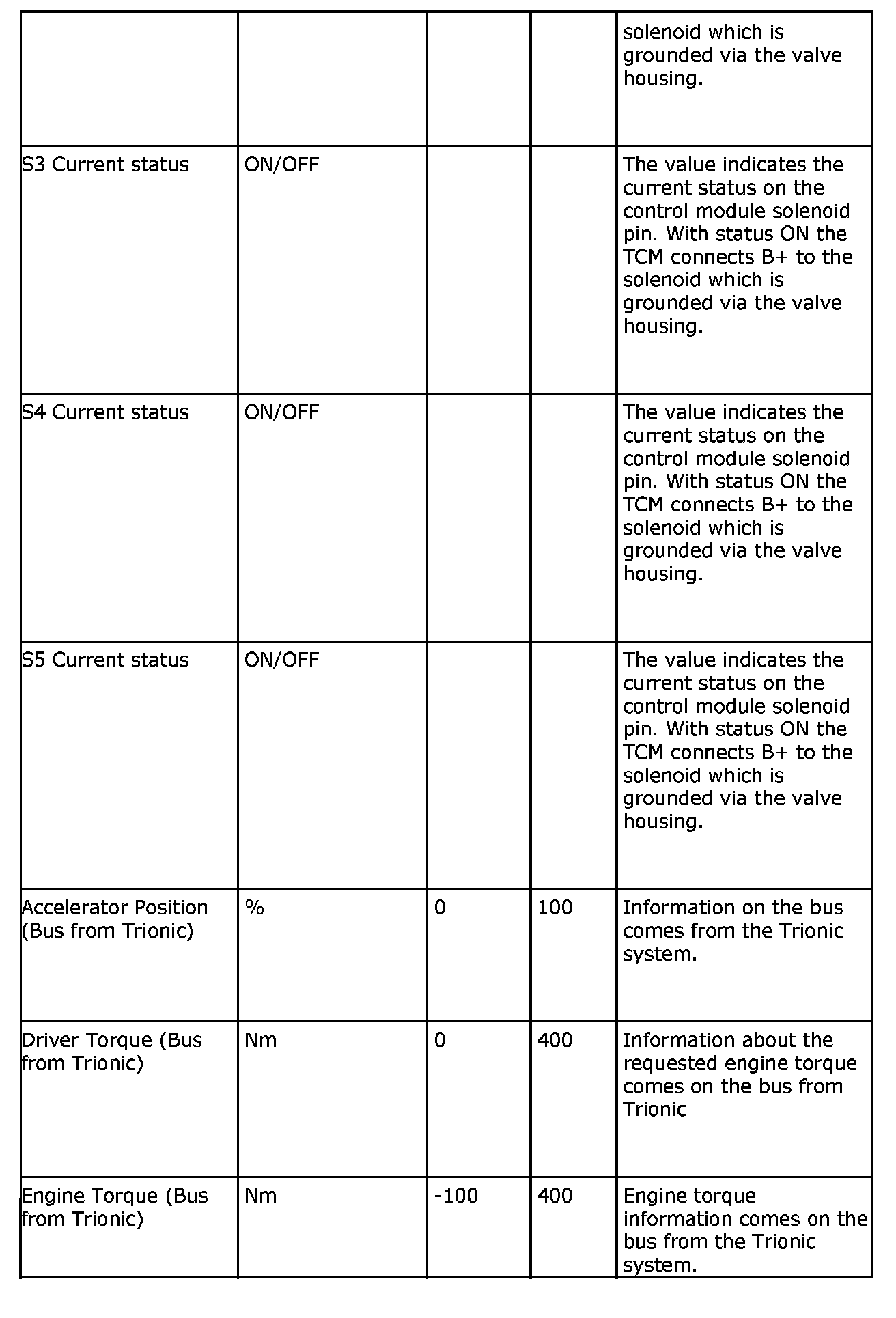

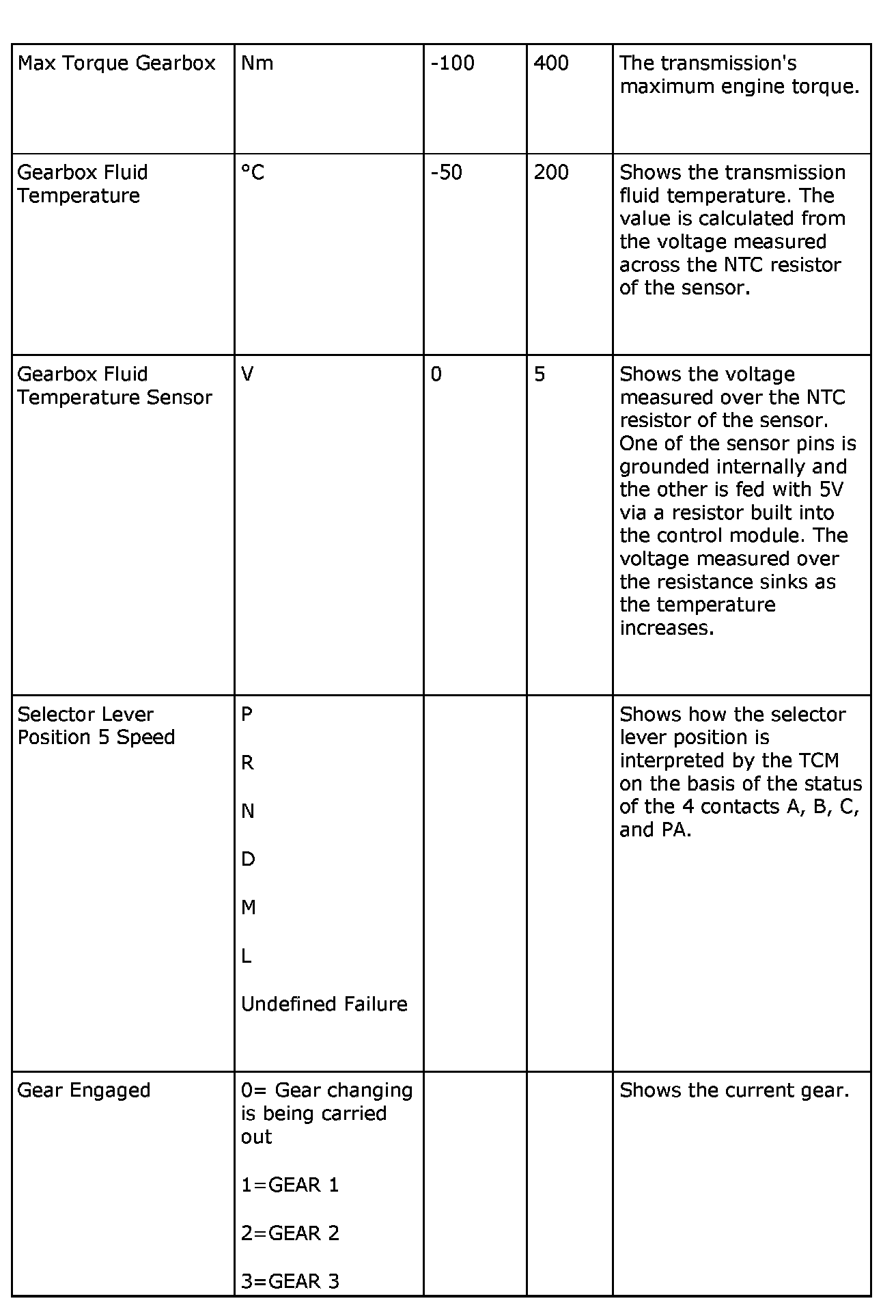

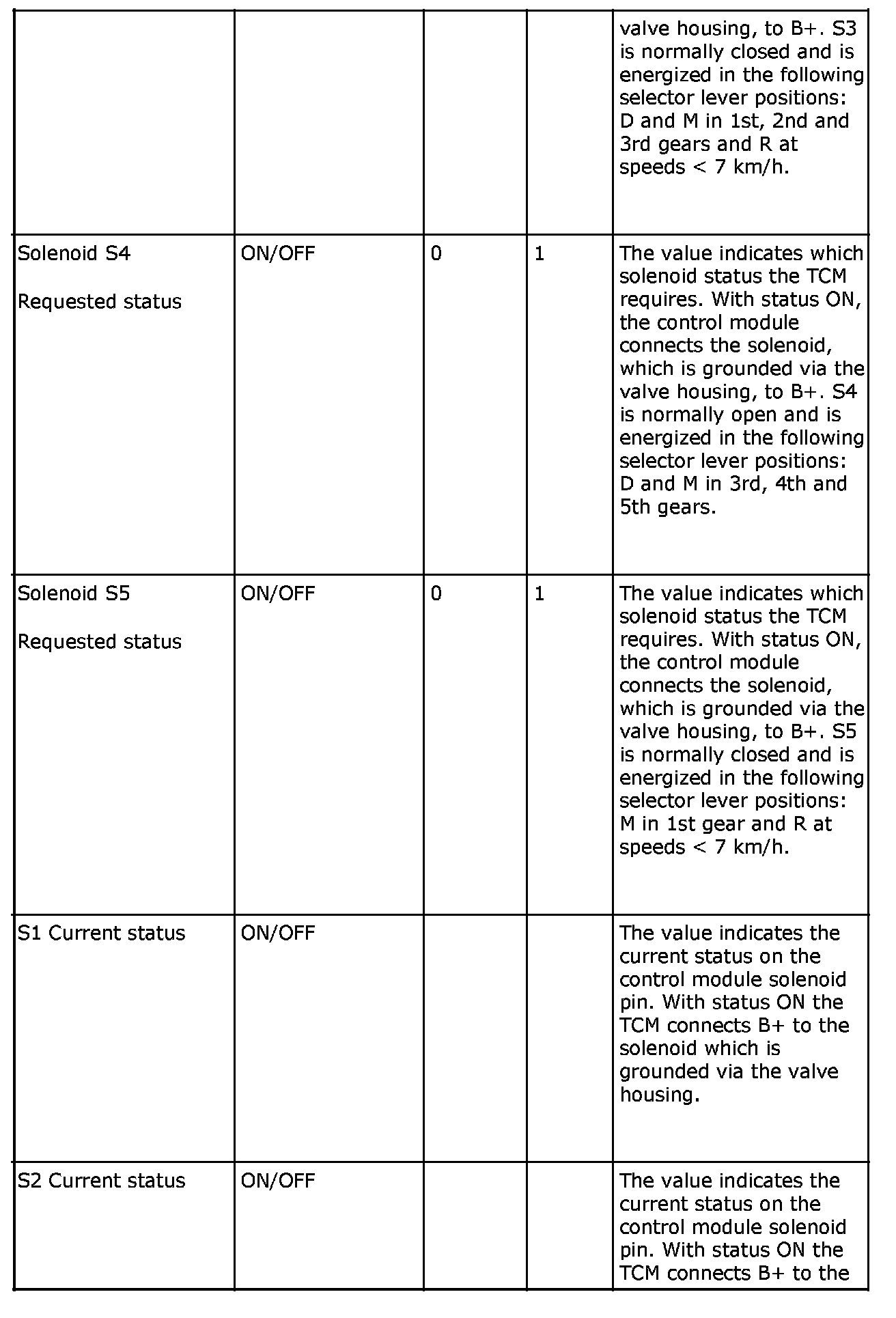

Menu "Read Values"

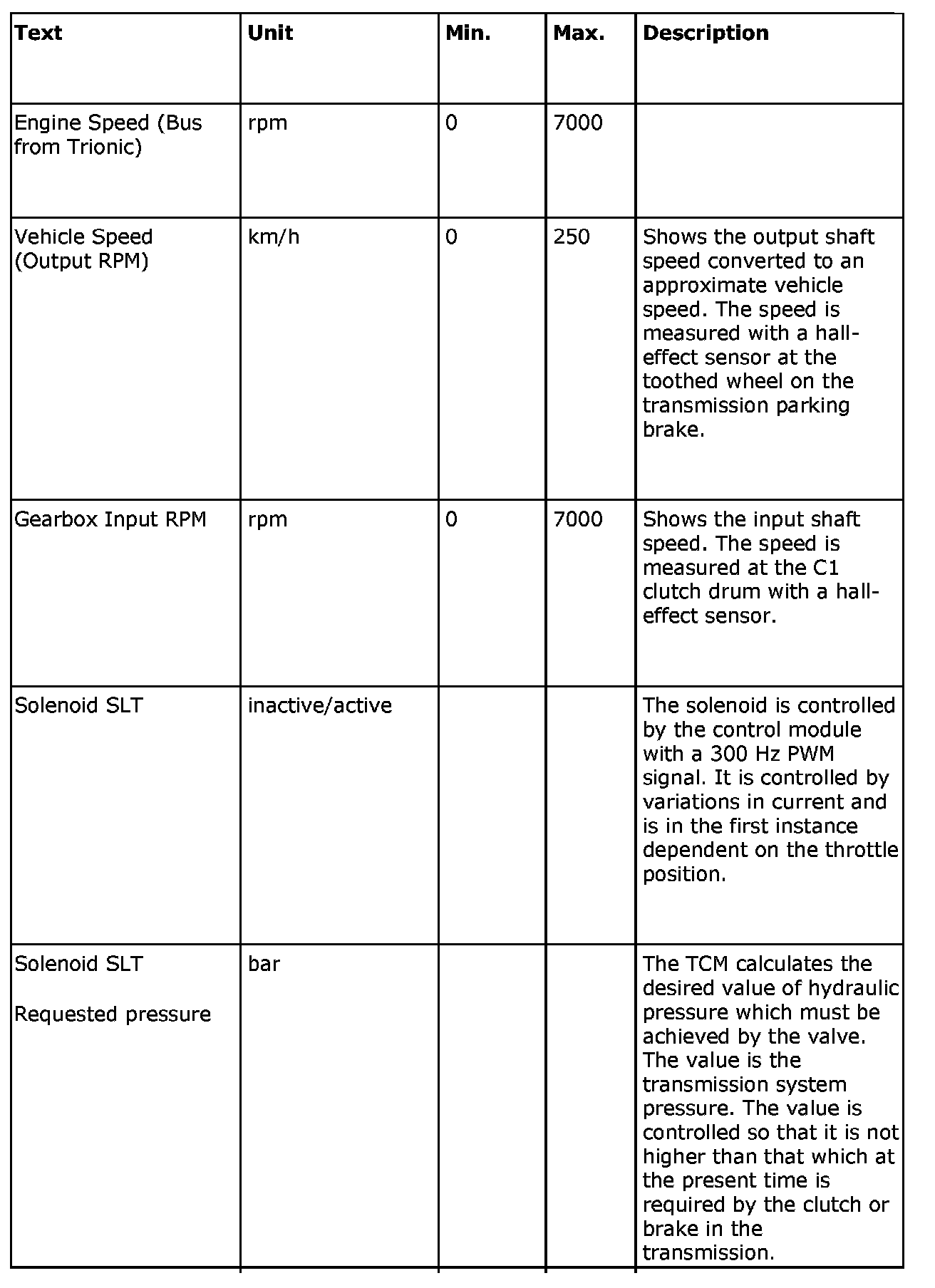

Part 1:

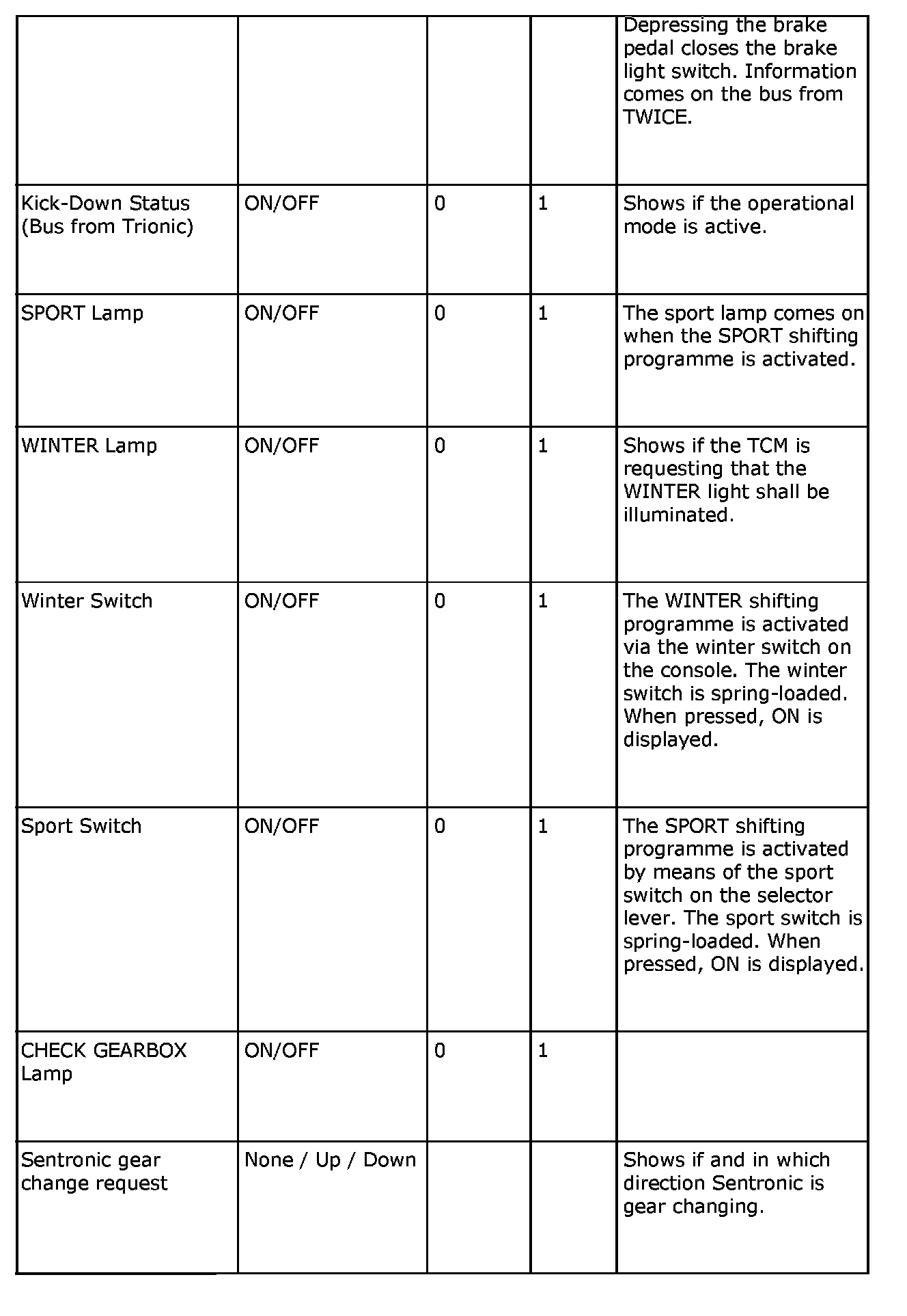

Part 2:

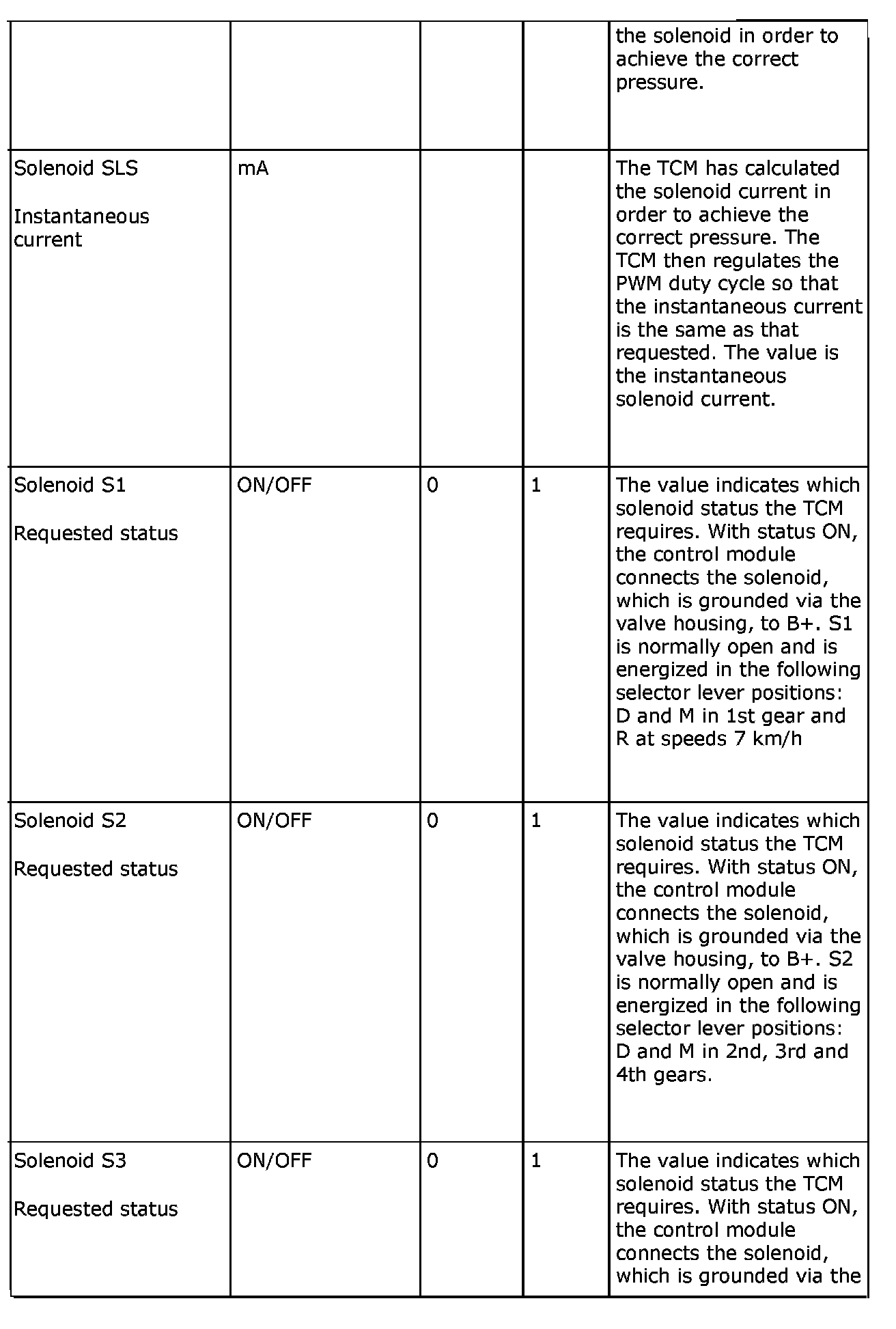

Part 3:

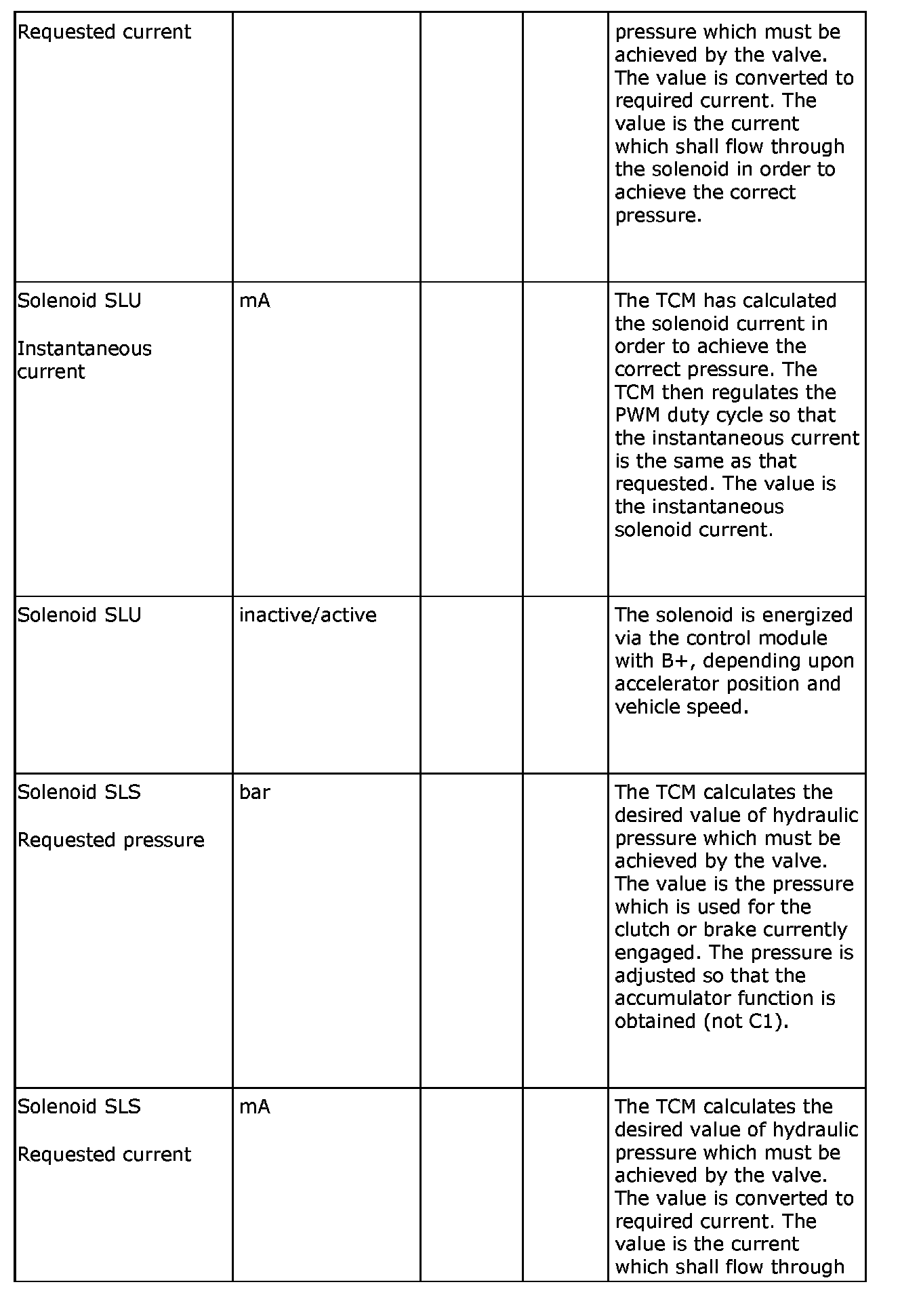

Part 4:

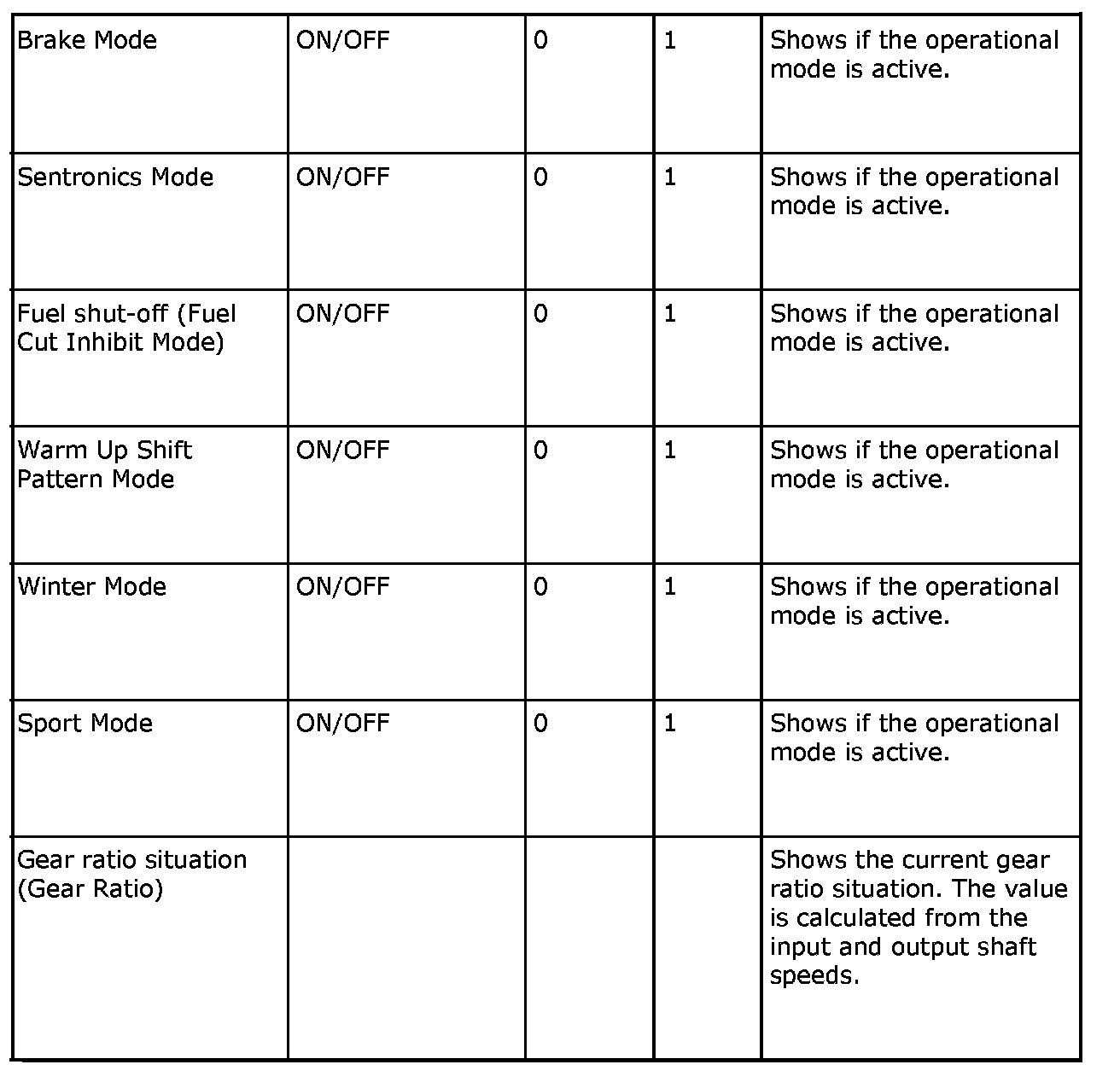

Part 5:

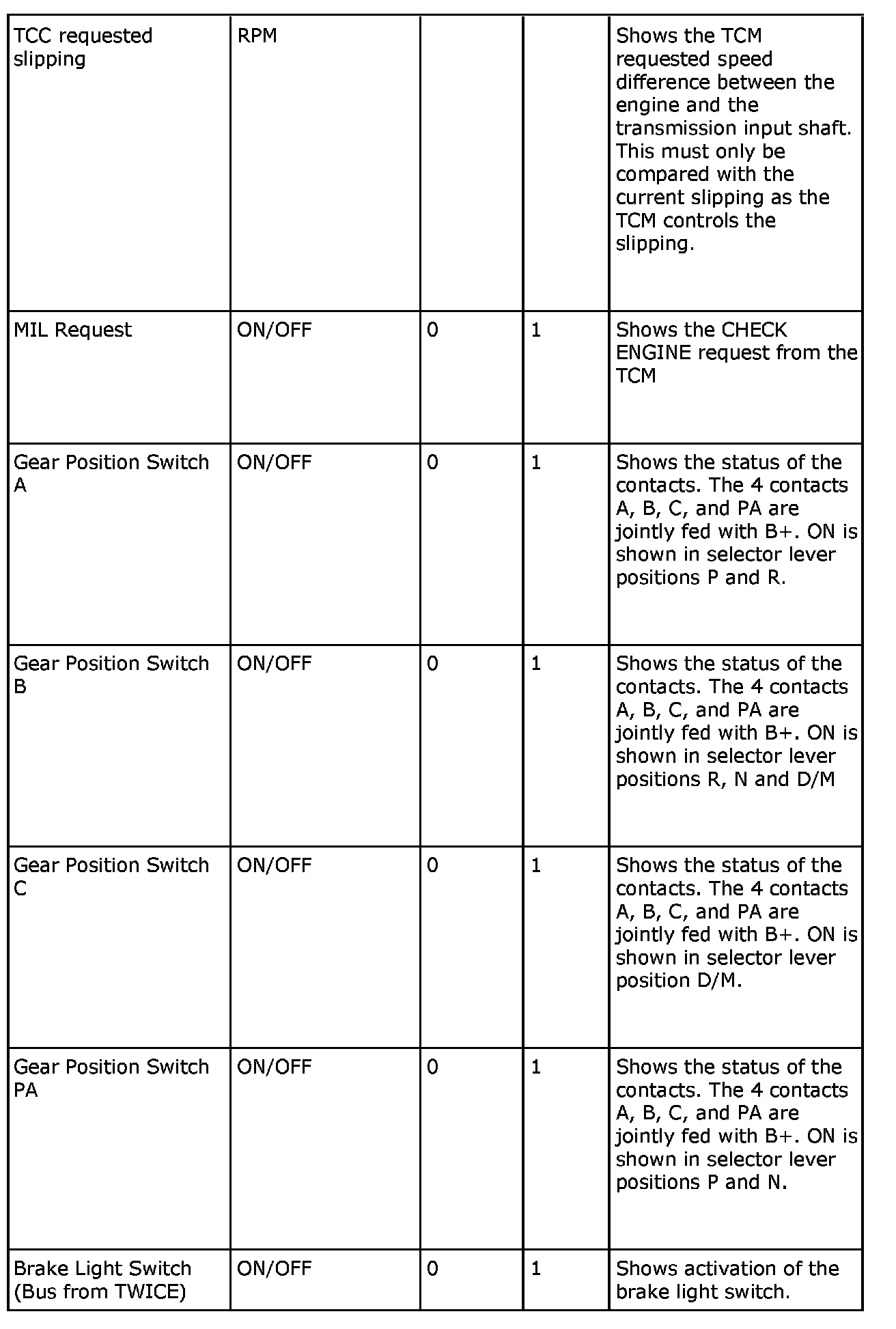

Part 6:

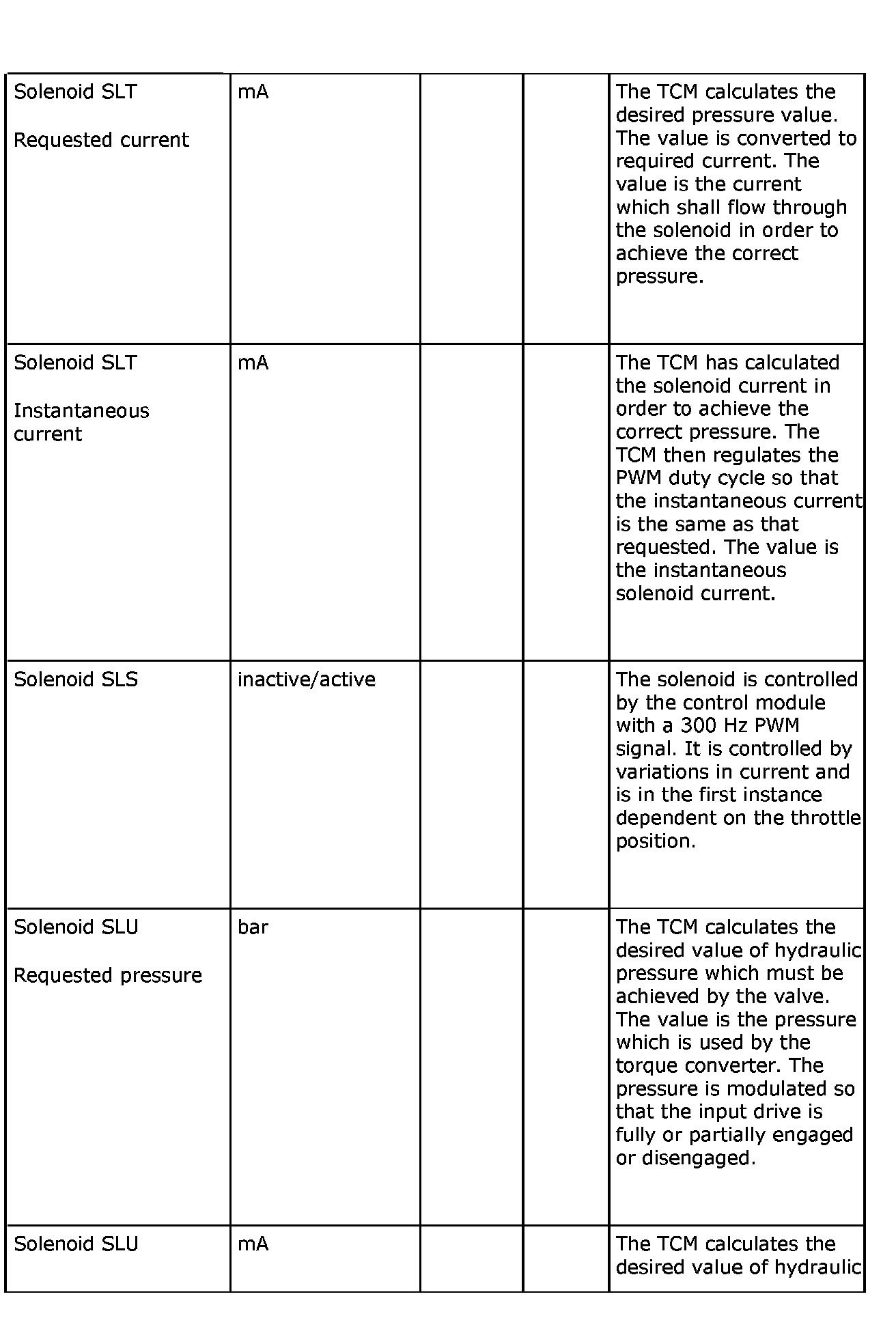

Part 7:

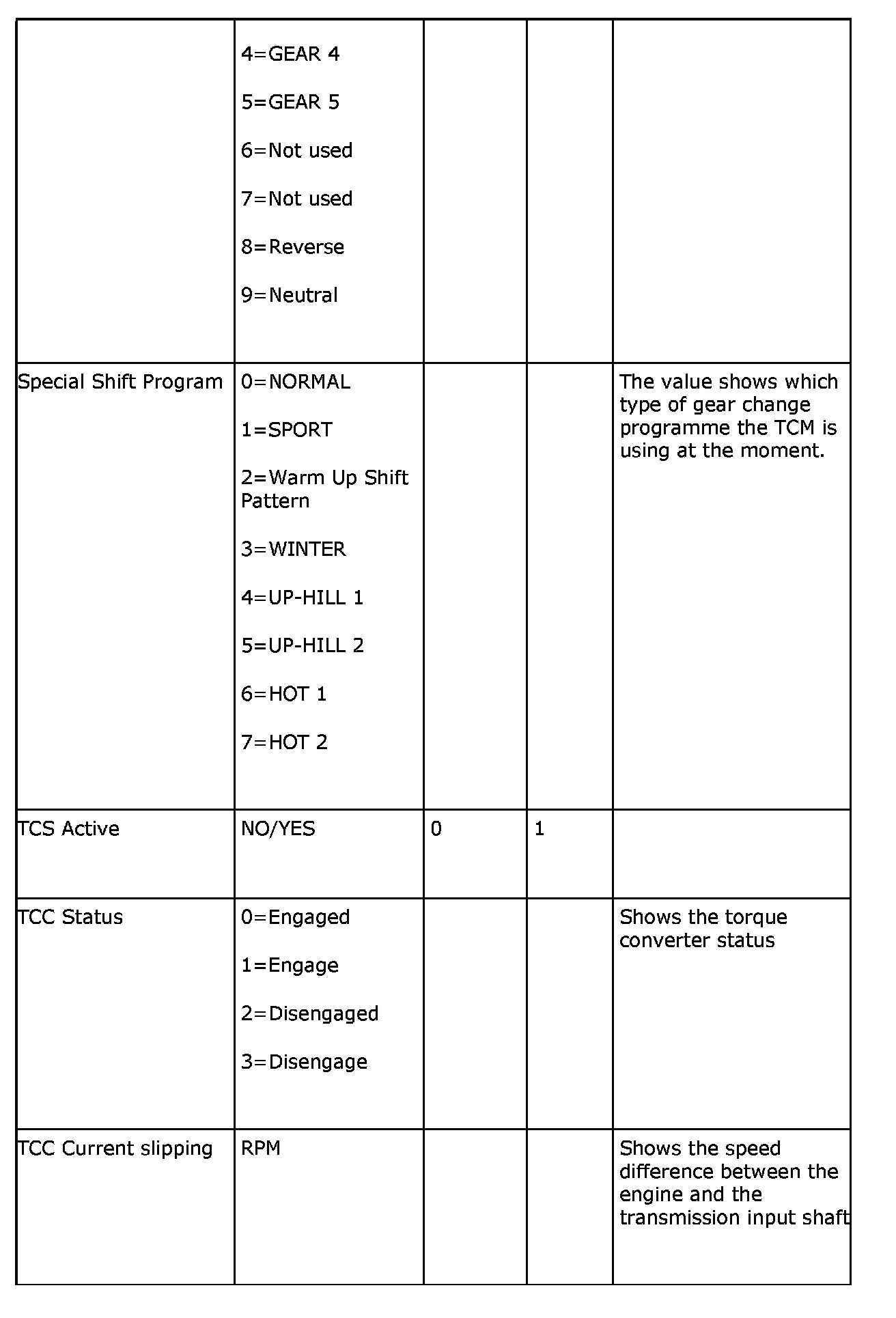

Part 8:




Part 9:




Part 10:





Part 11:





Menu "Read values"
