Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Power and Ground

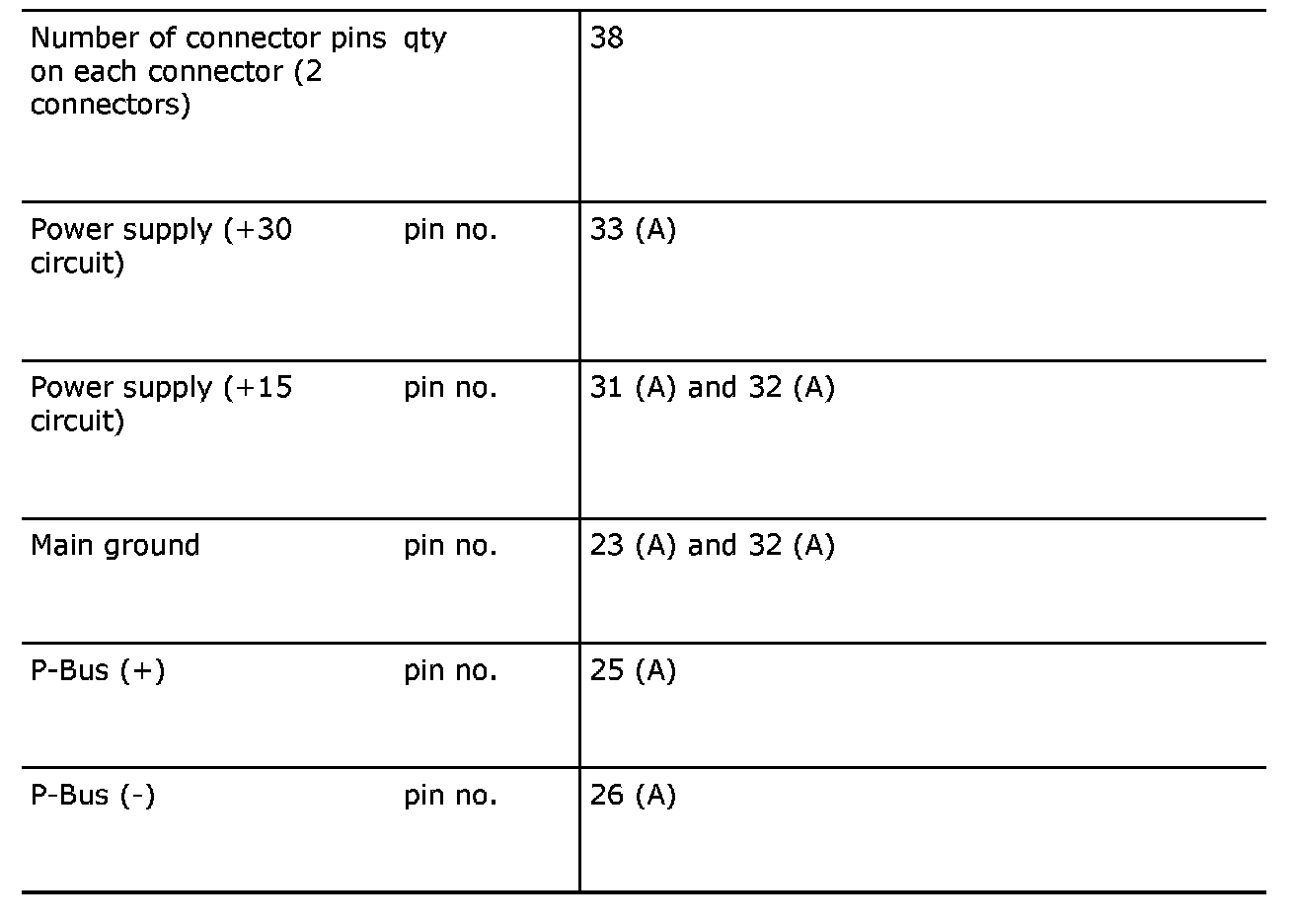

Power and Ground
