Solenoid Valves, Pressure Regulation (SLT and SLS)
Solenoid Valves, Pressure Regulation (SLT and SLS)

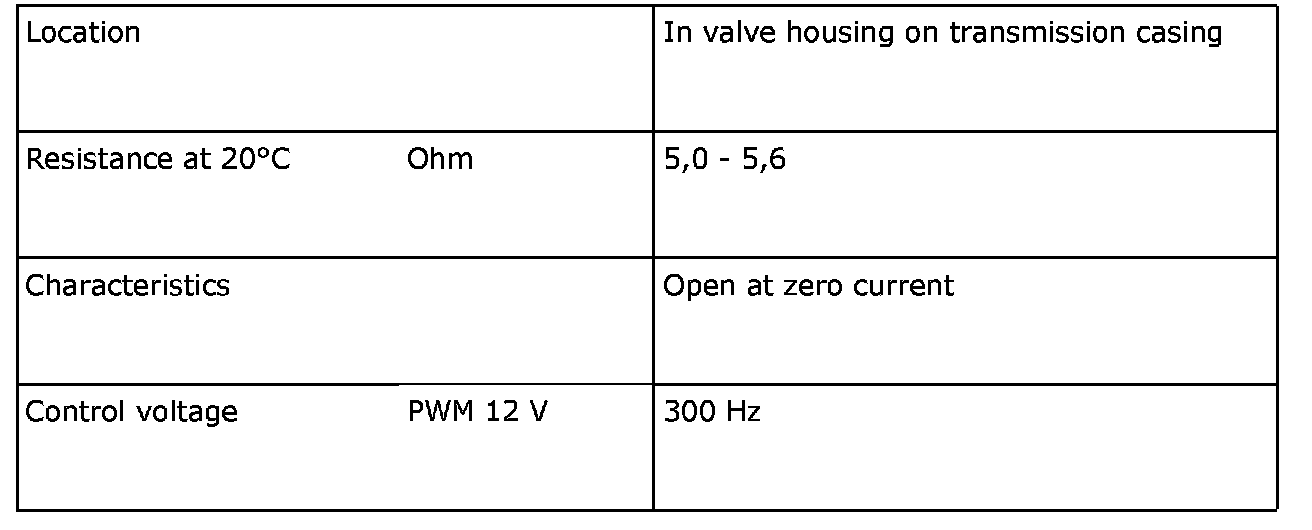

Solenoid valves, pressure regulation (SLT and SLS)

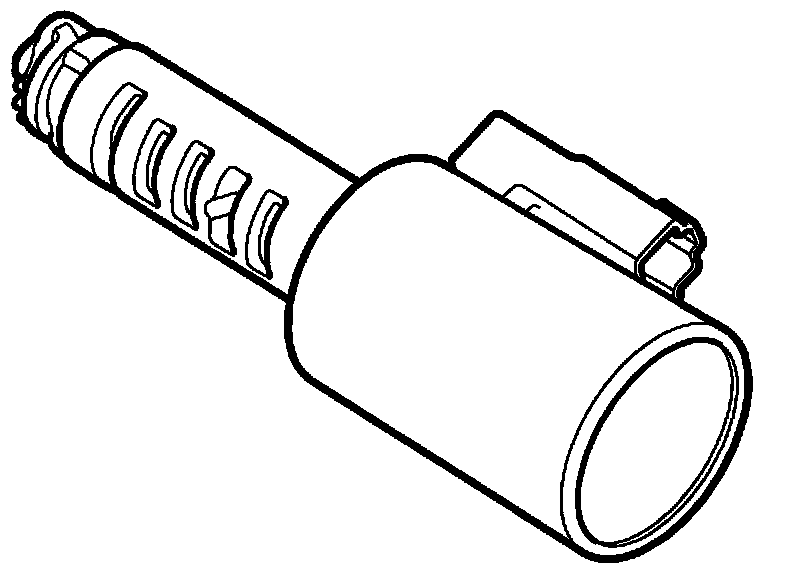

SLT

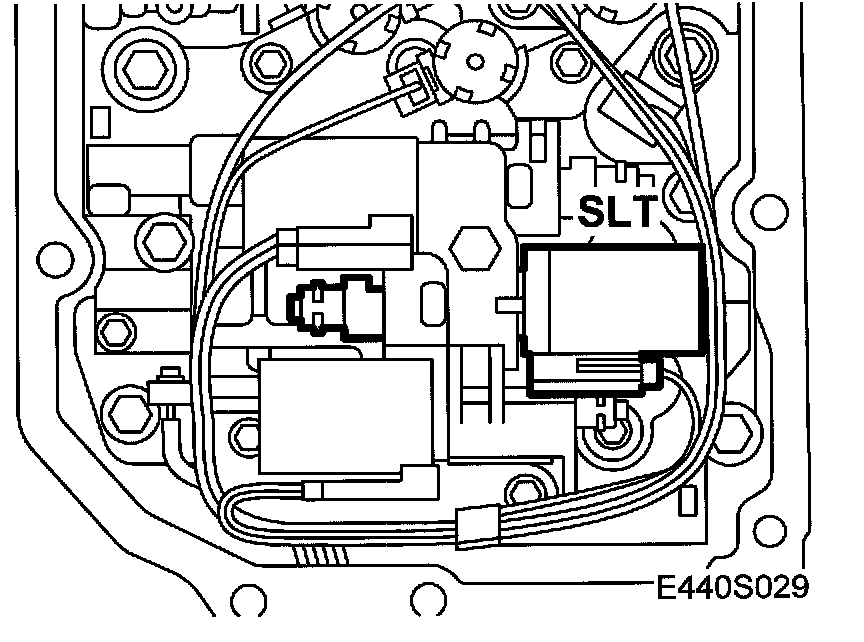

SLT

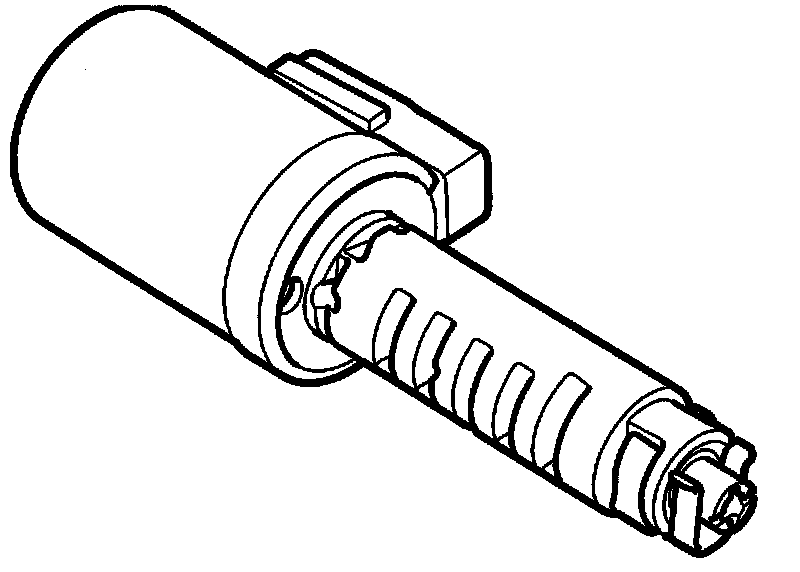

SLS

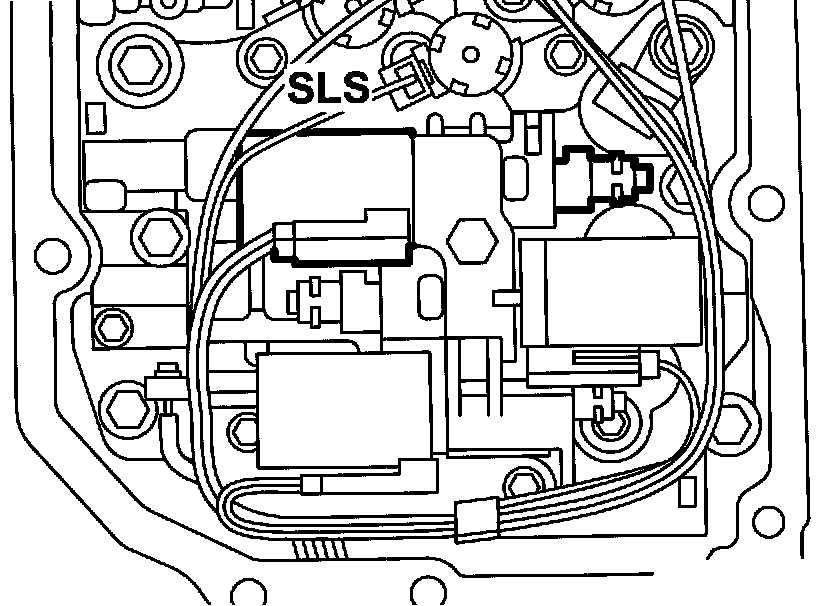

SLS
