Indication Display

Indication Display

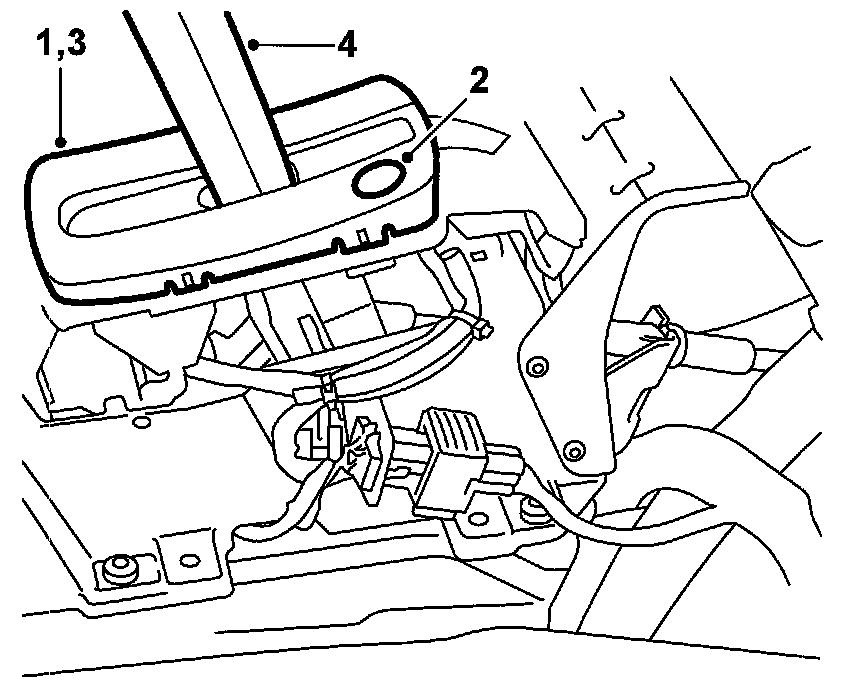

To Remove





1. Remove the edging around the indication display.
2. Dismantle the selector lever casing.
3. Lift up the indication display.
4. Unsolder the WINTER button.
5. Lift off the indication display.

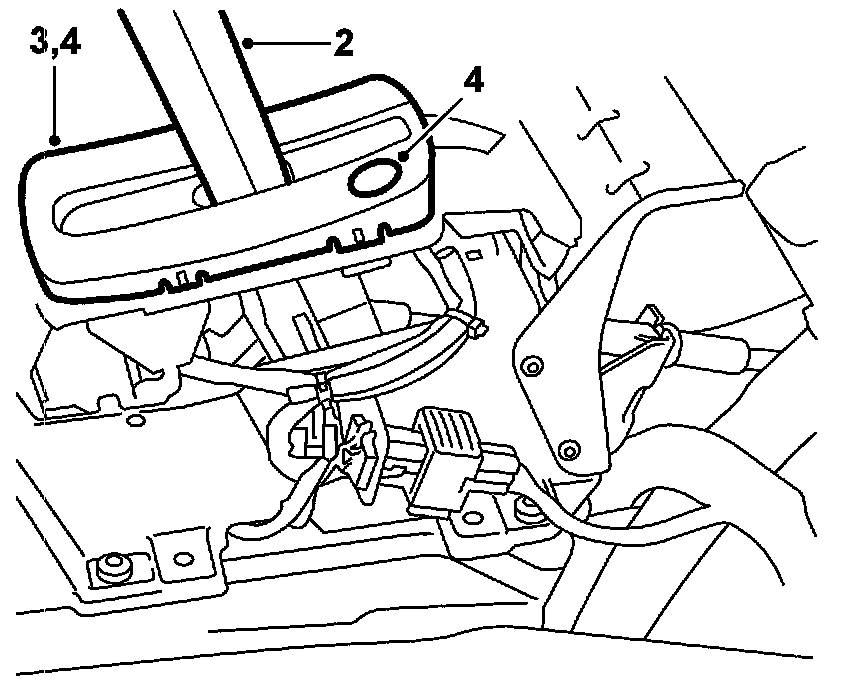

Fitting





1. Enter the indication display over the lever.
2. Solder on the WINTER-button.
3. Press on the indication display.
4. Assemble the selector lever casing.
5. Fit the edging around the indication display.
