Shift Linkage: Adjustments

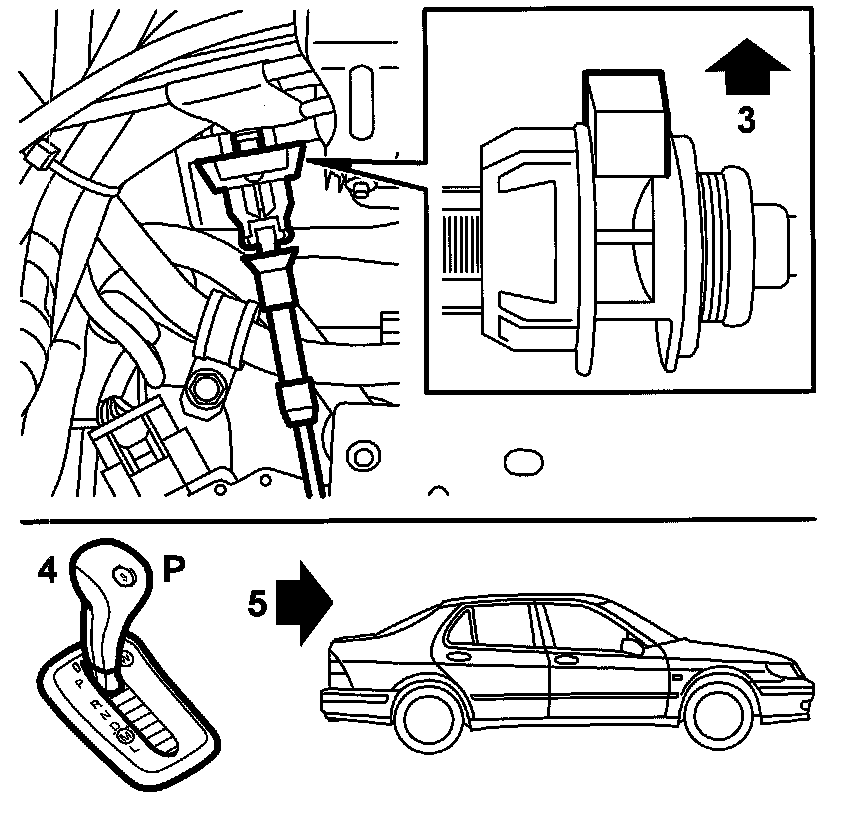

Checking And Adjustment, Selector Lever Cable1. Check that the play in the selector lever is the same in position N as in position D. If it is not, adjust the cable as follows.
2. Move the selector lever to position P (inside the car).
3. Lift up the cable adjustment catch.
4. Move the gear selector on the transmission to position P.
5. Roll the vehicle until the P lock engages.
6. Press the selector lever rearwards and press down the adjustment catch so that it locks the cable ferrule.
NOTE: There is a play in the P-position (inside the car). The selector lever should be held rearward when the catch is pressed down.
7. Check that the play is the same in positions N and D.
