Drive Shaft Seal, Right-Hand Side

Drive Shaft Seal, Right-Hand Side

To Remove
1. Remove the intermediate shaft.

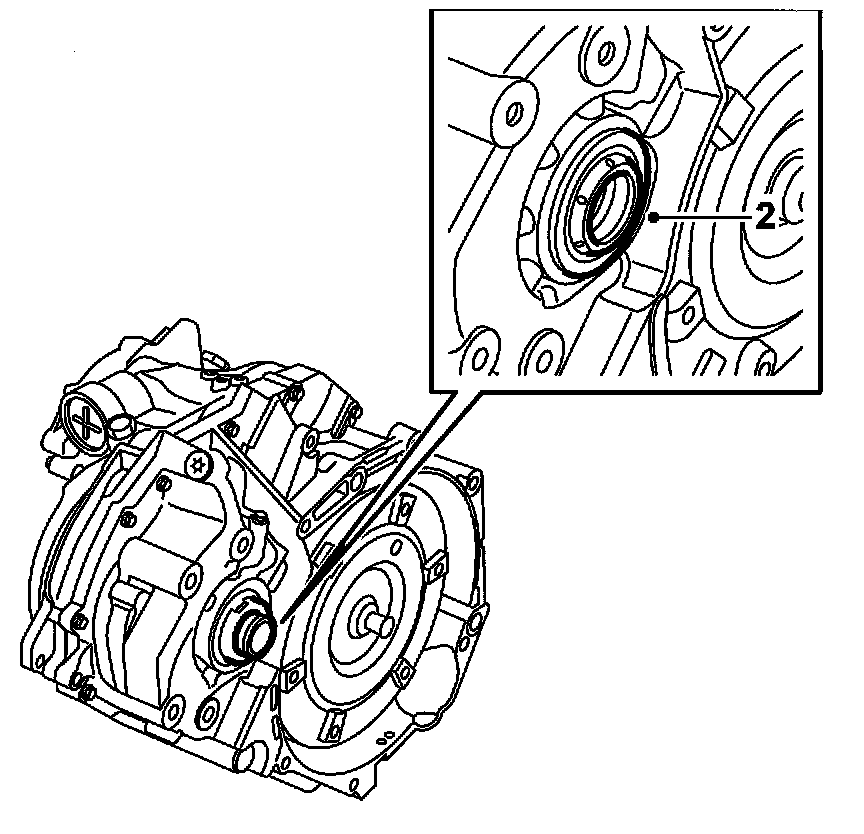

2. Remove the seal using a large screwdriver.





Fitting

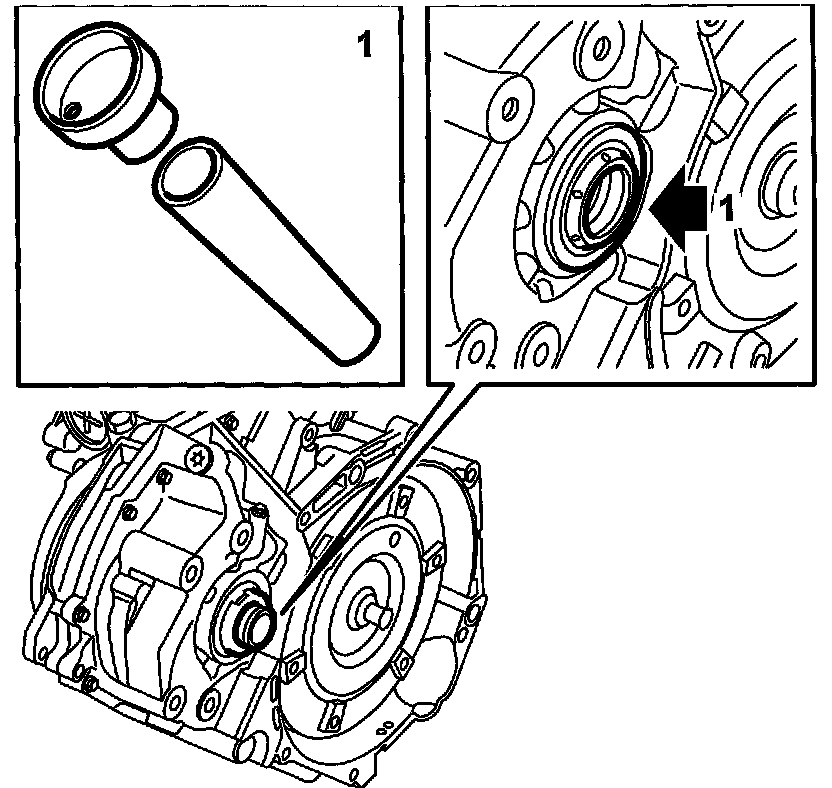

1. Lubricate and fit the new seals with tools 83 90 122 and 83 90 148.





2. Fit the intermediate shaft.
