Front Suspension

Anti-Roll Bar Link

To Remove





1. Raise the car.
2. Remove the wheel.

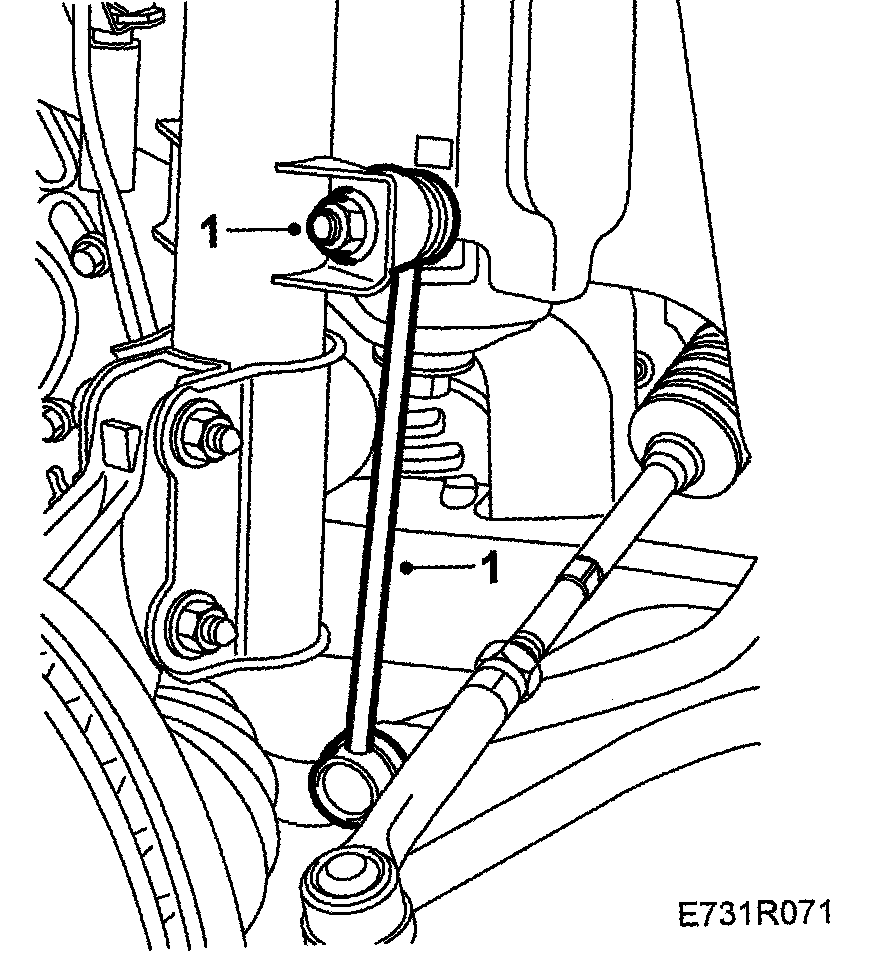

3. Undo the anti-roll bar link's nuts and remove the link.

To Fit

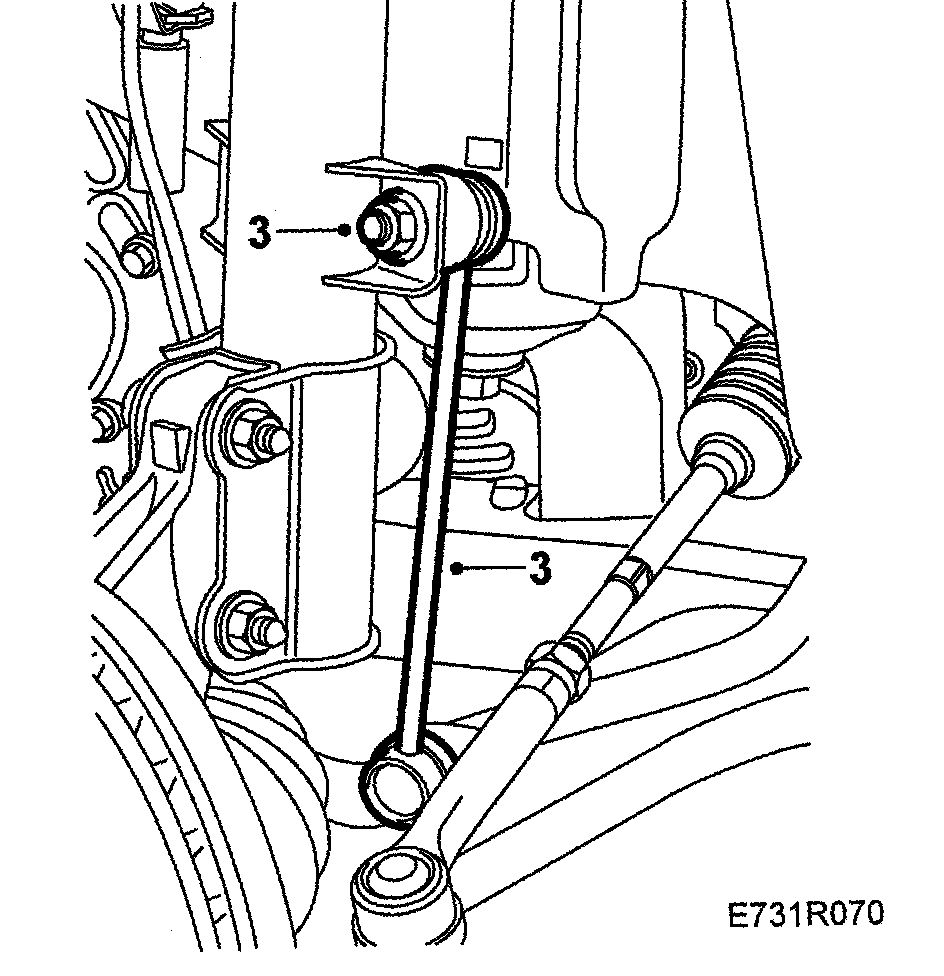

1. Bolt the anti-roll bar link to the MacPherson strut and the anti-roll bar.
Tightening torque 90 Nm (65 ft. lbs.).
2. Fit the wheel.
Tightening torques
aluminium rim 110 Nm (81 ft. lbs.)
pressed steel rim 50 Nm + 2 x 90°, max. 110 Nm (37 ft. lbs. + 2 x 90°, max. 81 ft. lbs.)
Lower the car to the floor.
