Front Suspension

System Overview

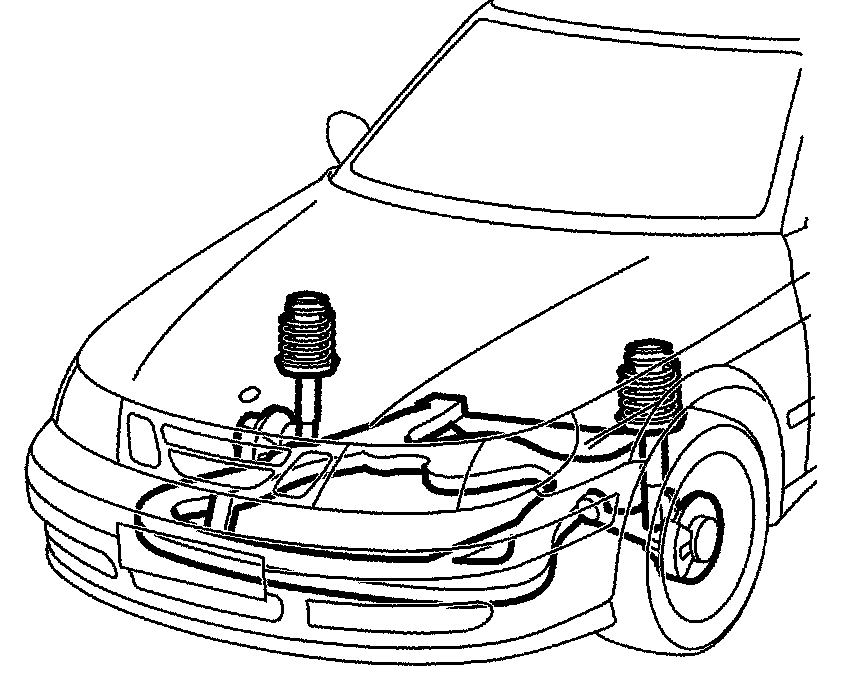

The wheel suspension comprises a MacPherson strut with cylindrical coil spring and double-action gas dampers. There is also an anti-roll bar and a subframe.
