Transverse Link Bush

Transverse Link Bush

To Remove

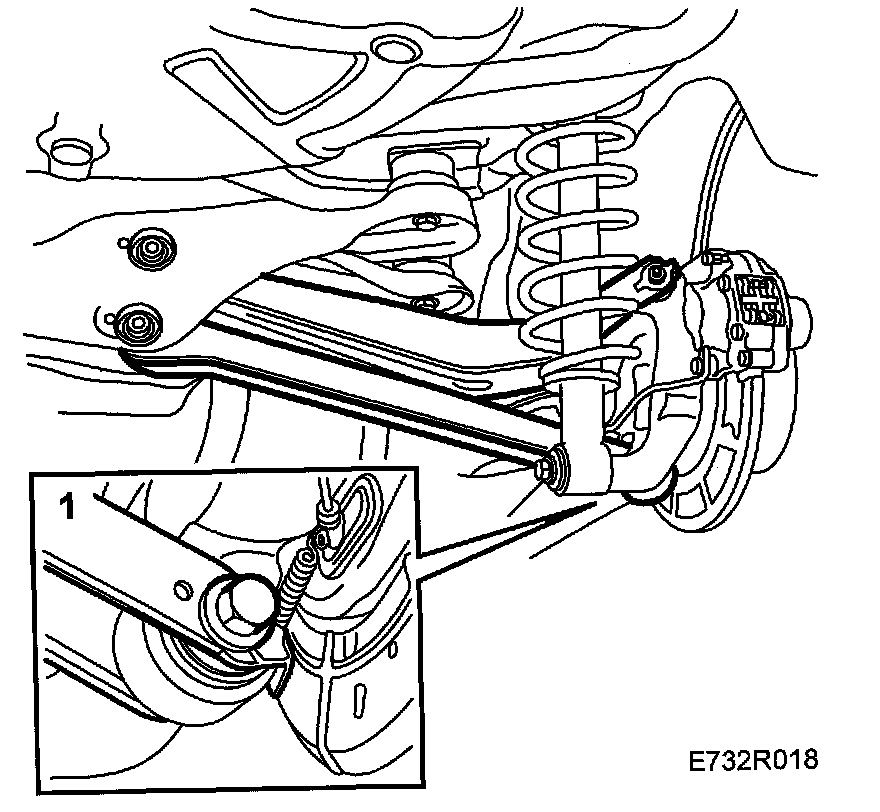

1. Remove the transverse link in question.

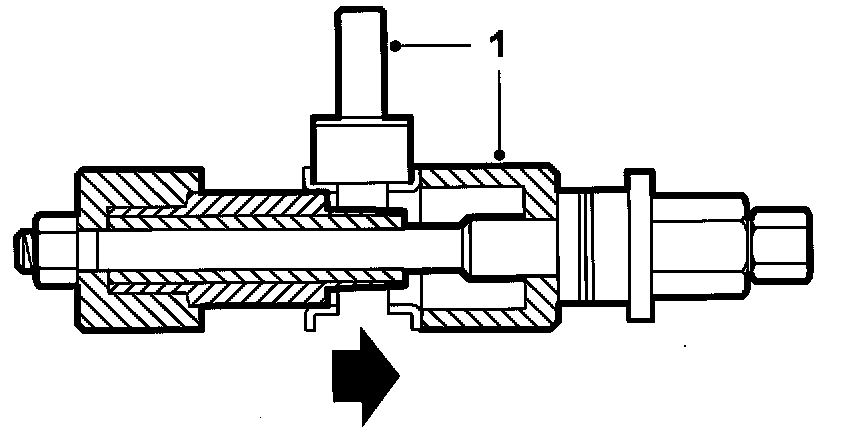

2. Press the bush out, using tool 89 96 761 (KM-906-70, KM-906-31, KM-906-32 and KM-906-34).





To Fit

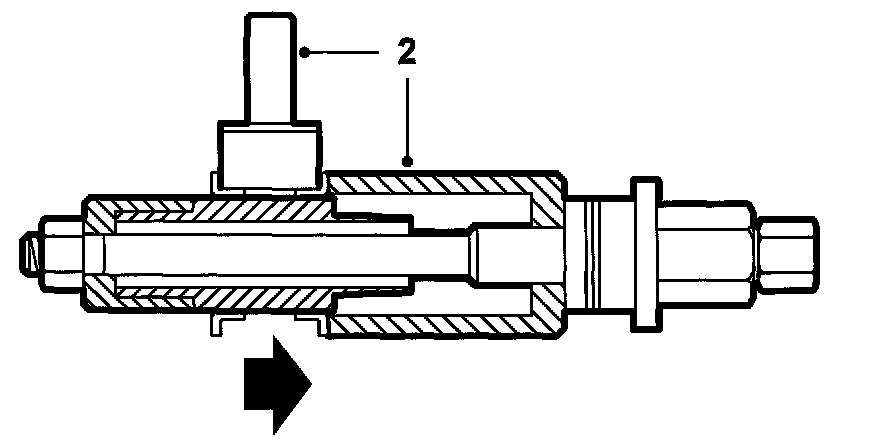

1. Press in a new bush, using tool 89 96 761 (KM-906-70, KM-906-33, KM-906-34 and KM-906-35).
2. Fit the transverse link.
