Clutch Switch: Service and Repair

Replacing The Clutch Starting Interlock Contacts

To Remove

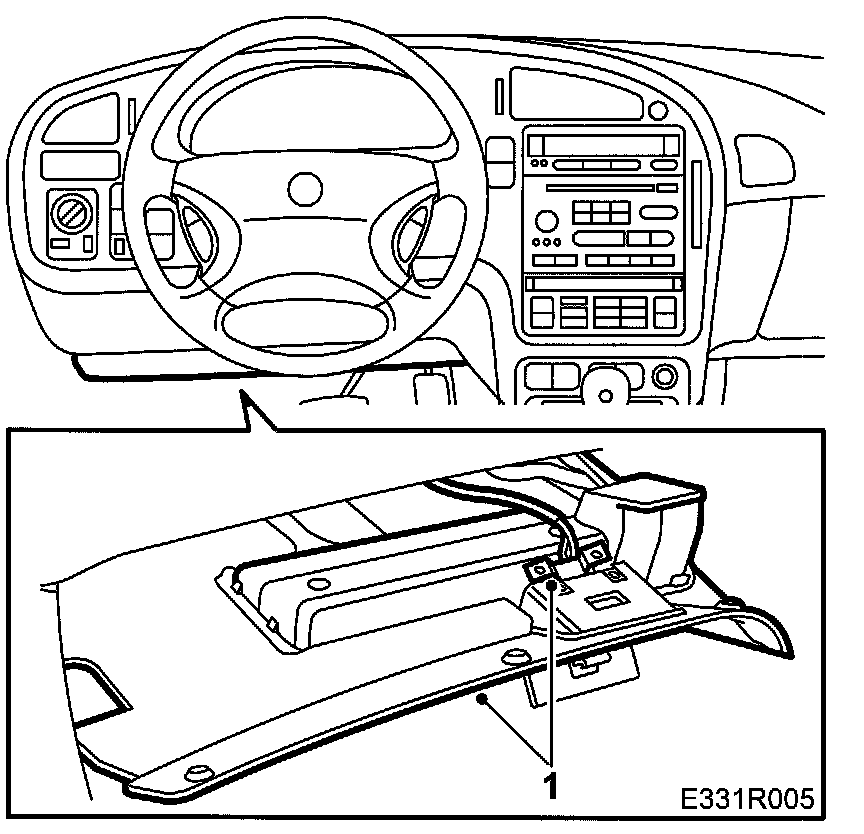

1. Remove lower panel from driver's side.

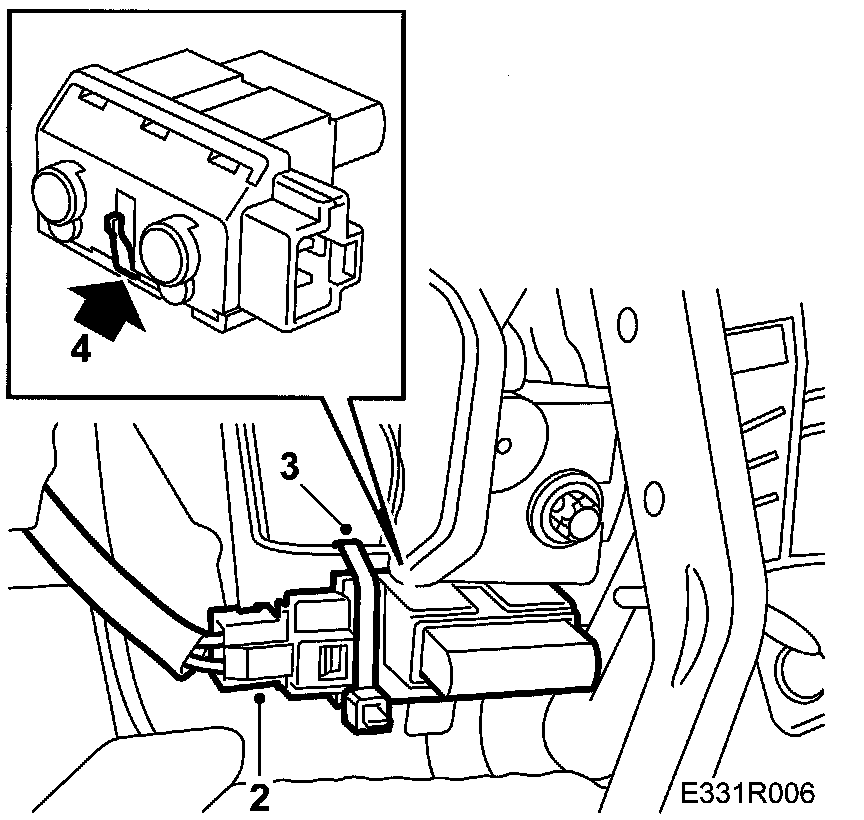

2. Unplug the connector from the contact.
3. Cut the cable tie.
4. Press in the catch and pull down the contact.

To Fit






1. Replace the contact.
2. Fit a new cable tie.
3. Plug in the connector.

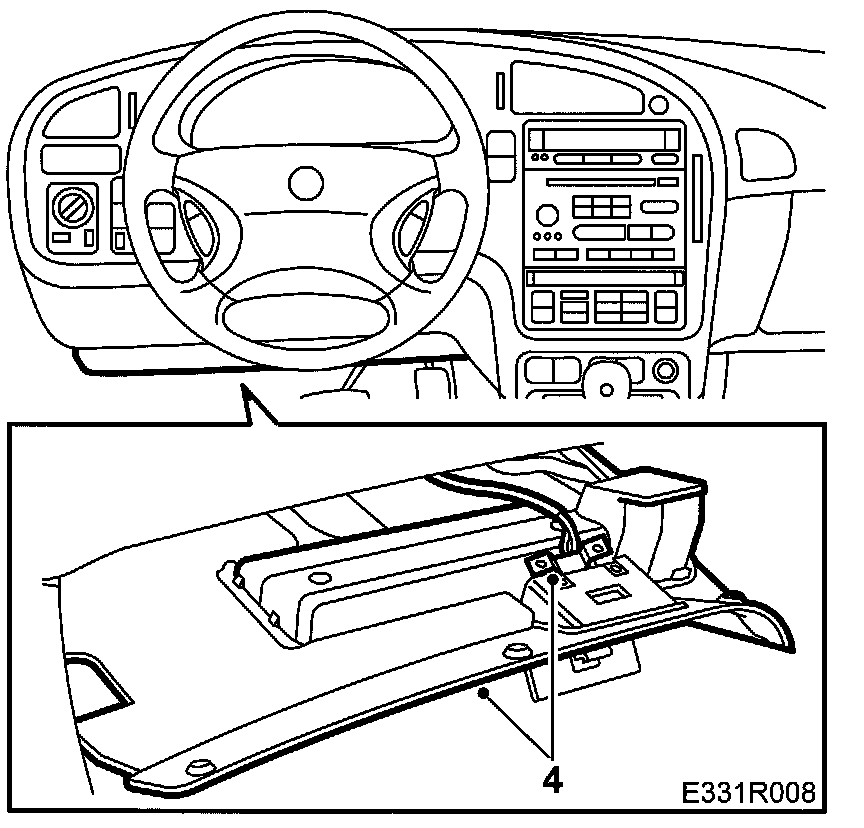

4. Replace the lower panel on the driver's side.
