Front Bumper

Wiring Harness, Front Bumper

Removal
1. Remove right-hand direction indicator and headlamp.

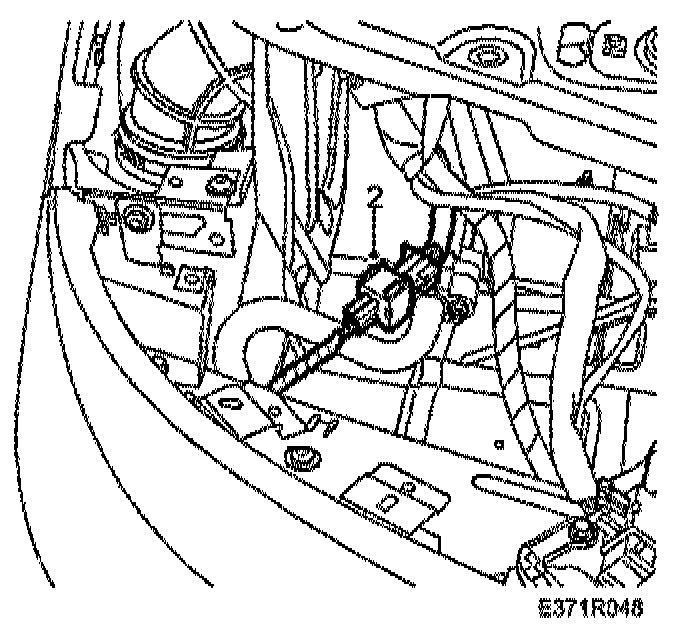

6 Pin Connector:

2. Unplug the 6-pin connector for the bumper wiring harness at the A/C pipe.
3. Raise the car.

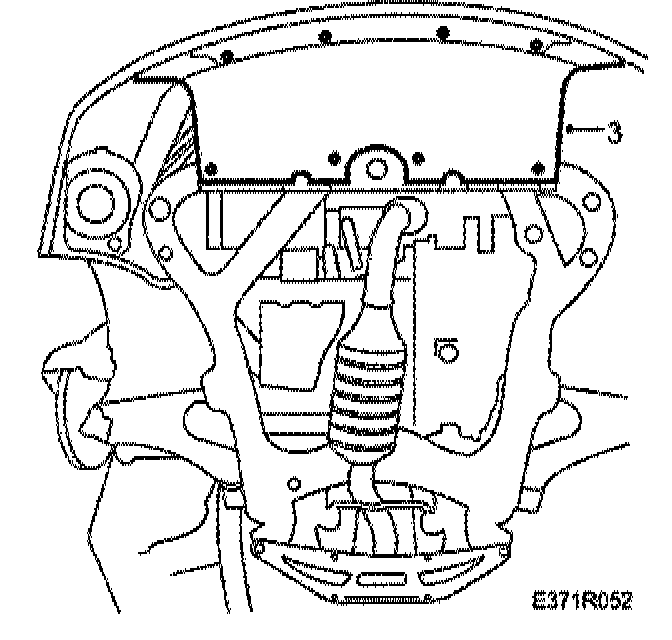

Spoiler Shield:

4. Remove the spoiler shield screws. Bend down the lower section of the bumper shell and remove the spoiler shield.

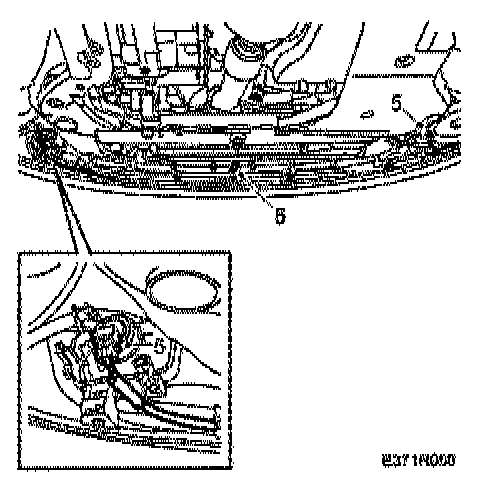

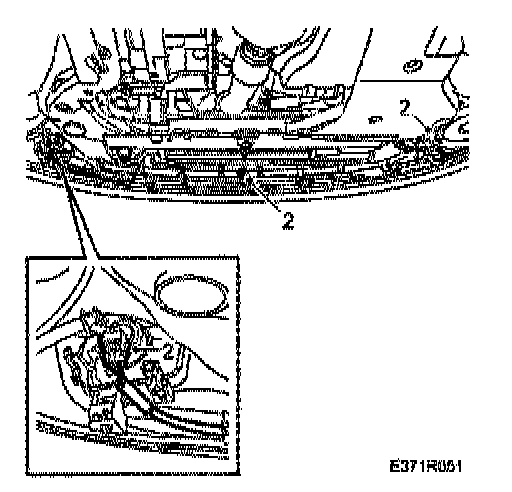

Connector Housings:

5. Detach the connector housings to the outside temperature sensor and any fog lights.
6. Remove the wiring harness.

Refitting
1. Fit the wiring harness.

Connector Housings:

2. Attach the connector housings to the outside temperature sensor and any fog lights.

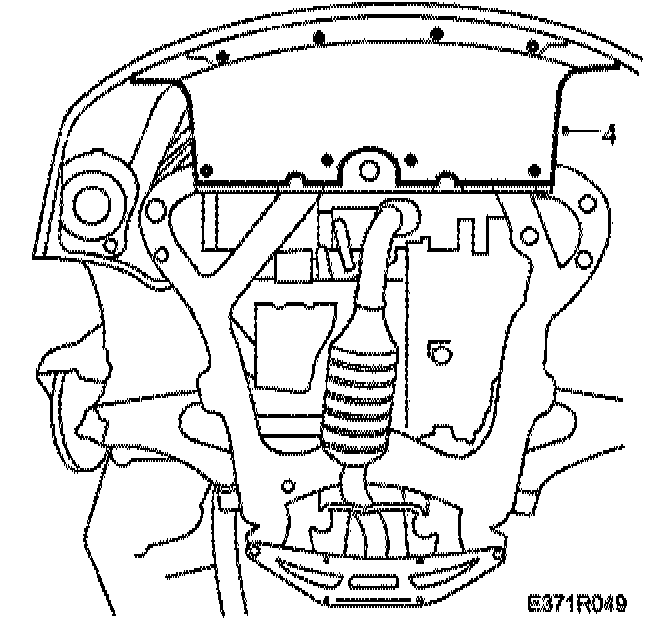

Spoiler Shield:

3. Fit the spoiler shield by guiding the shield in towards the bumper shell. Fit the screws.
4. Lower the car.

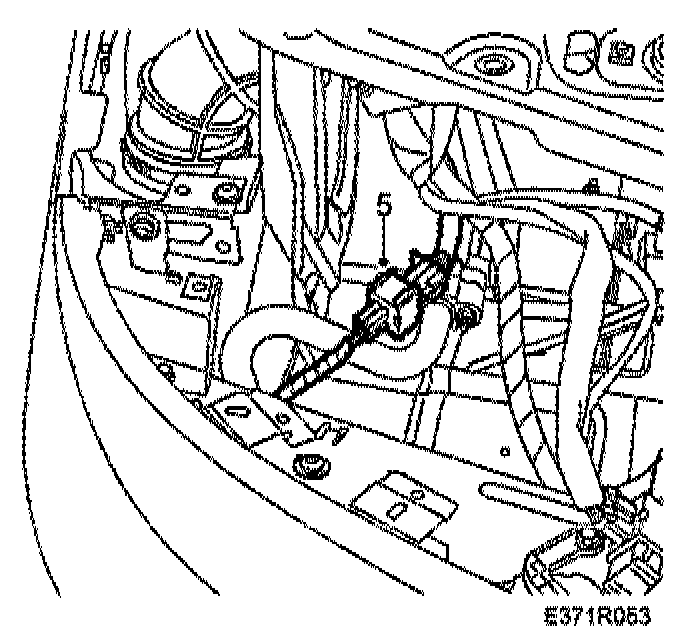

6 Pin Connector:

5. Assemble the 6-pin connector.
6. Fit right-hand direction indicator and headlamp.
