Electrical - Connector Modification
Bulletin Number: 371-2574Date: July, 2005
Market:
all
Changing connector H42 to H24
This bulletin advises on a change in the electrical system and comes into immediate effect. The October edition of WIS will include this information.
Cars affected
Saab 9-5 M05 - with engine alternative B205, B235 and D223L from and including Vehicle Identification Number 53529059-
Parts required
Not affected.
Background

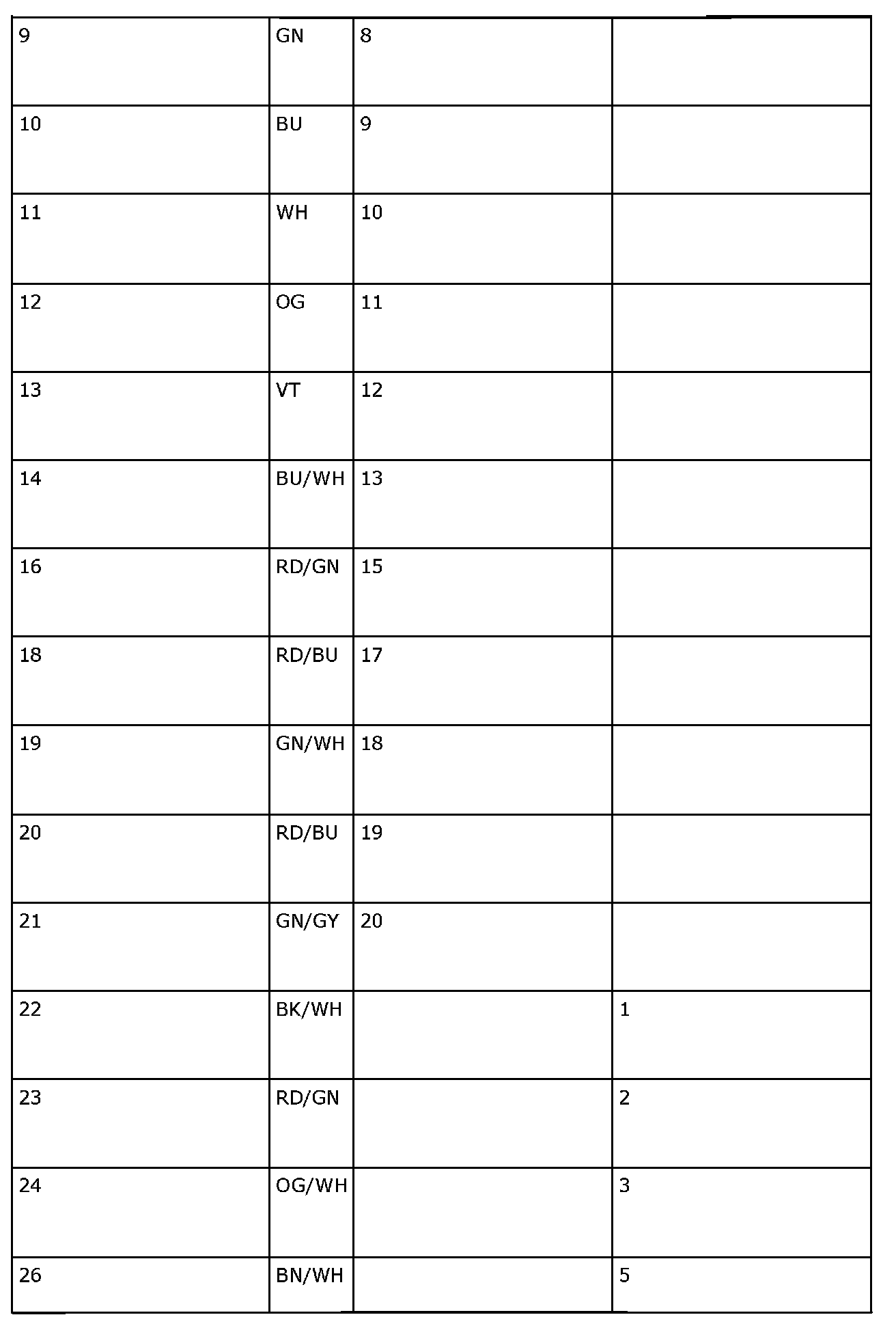

In order to improve quality, connector H42-5, located in the engine bay, has been replaced by two 24-pin connectors H24-1 and H24-2 with the same location. The table shows which pins in H42-5 correspond to the pins in H24-1 and H24-2.
Warranty/Time Information
