Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Ground Locations >> Grounding Point G5

Grounding Point G5

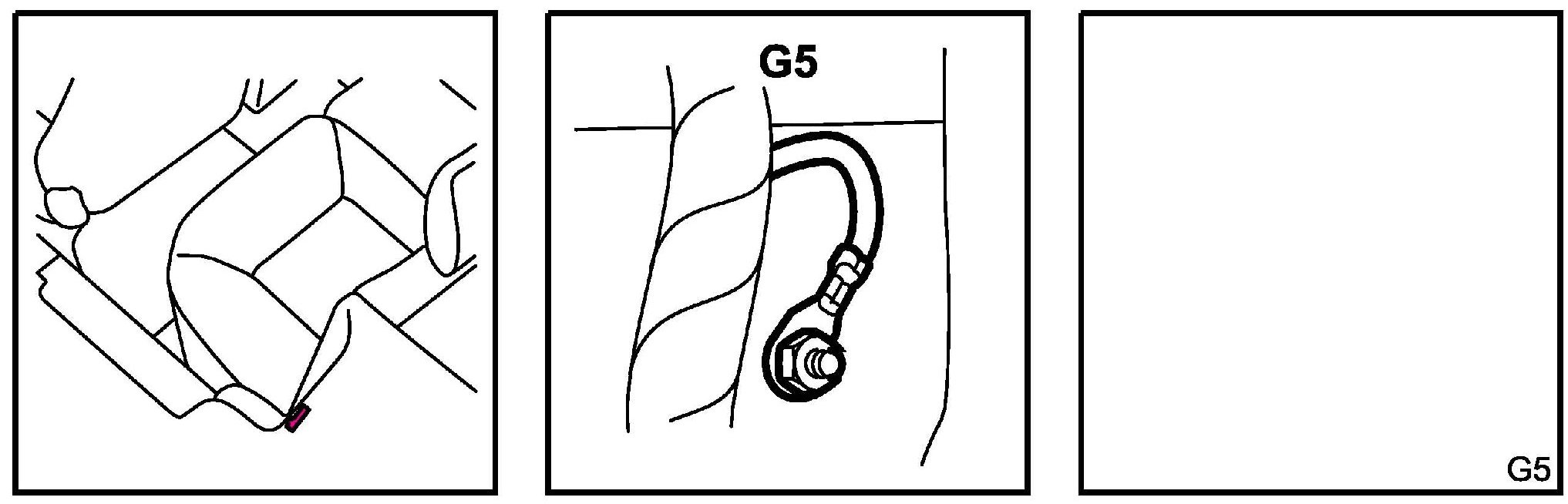

Location: Under left-hand corner of rear seat.

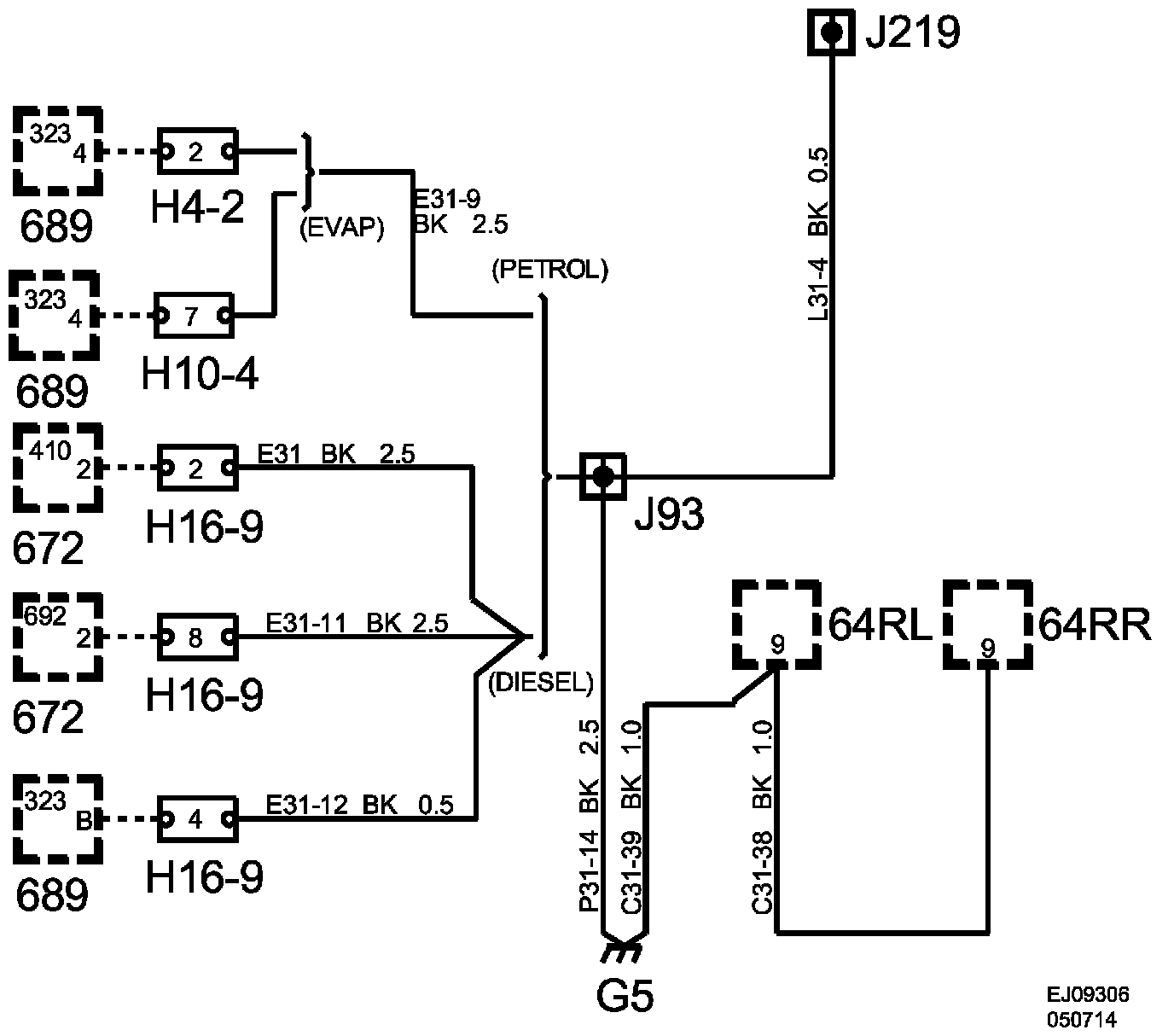

Grounding Point G5:

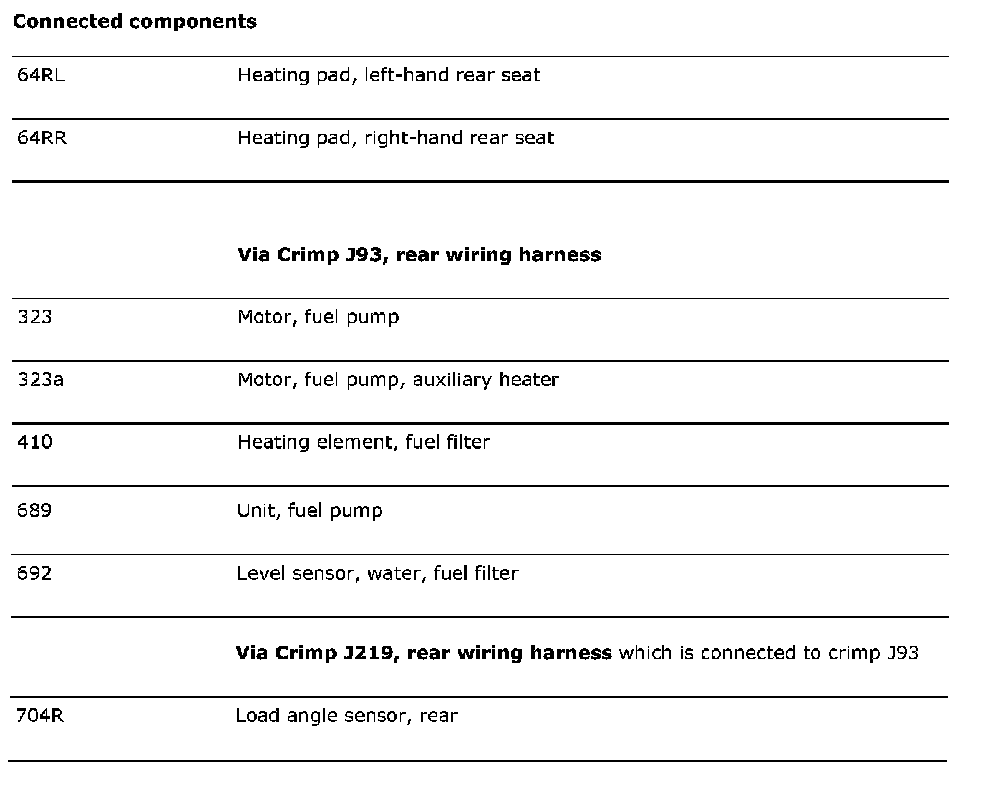

Connected Components:
