Grounding Point G14



Location: On seat member under left-hand seat.

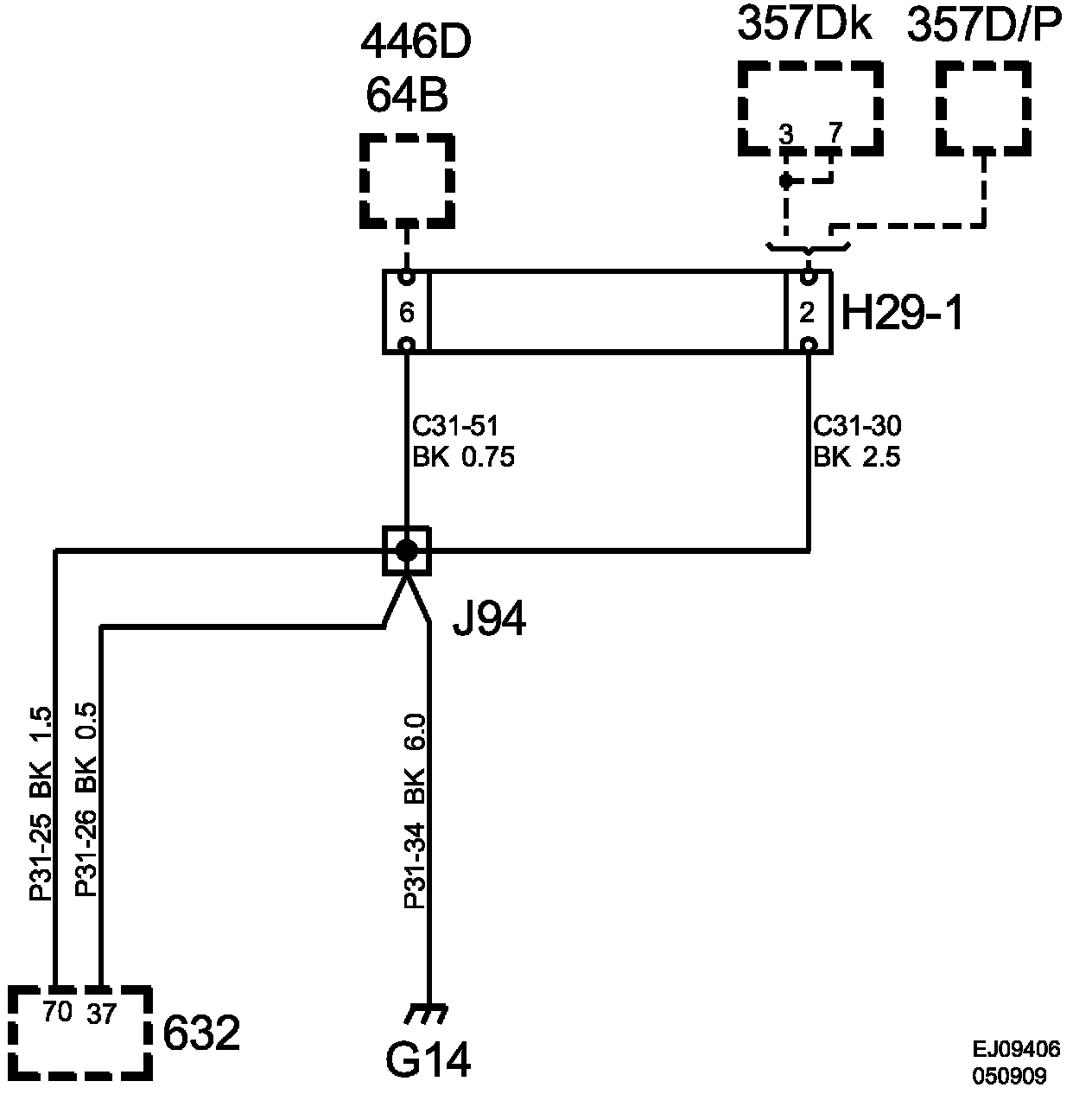

Grounding Point G14:

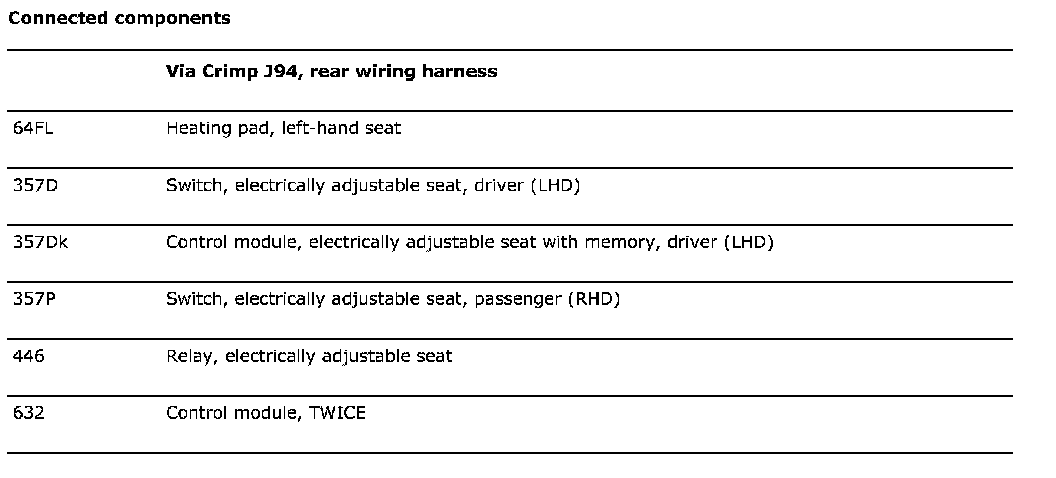

Connected Components:
