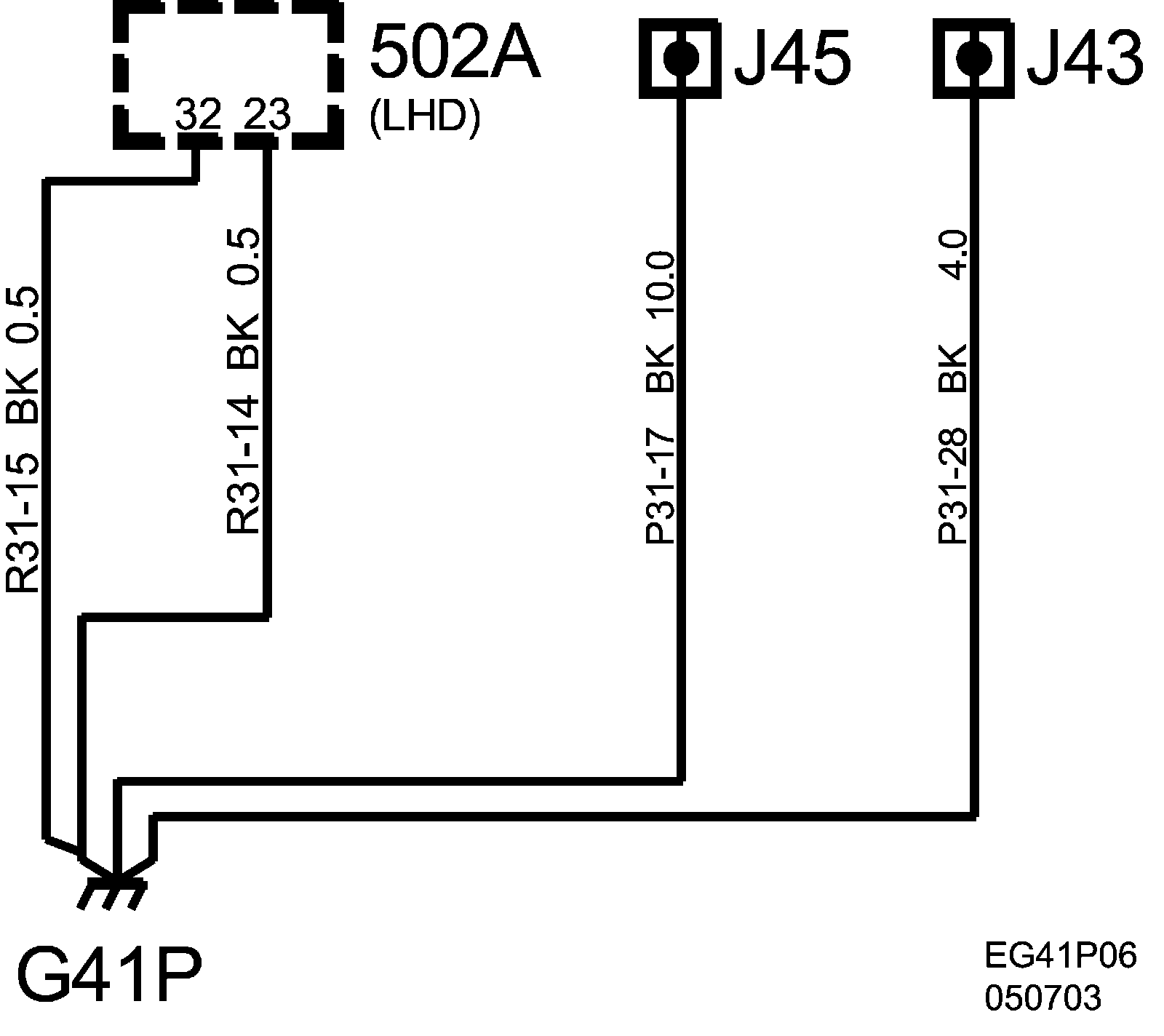

Grounding Point, G41P
Grounding Point, G41P
Grounding Point, G41P:

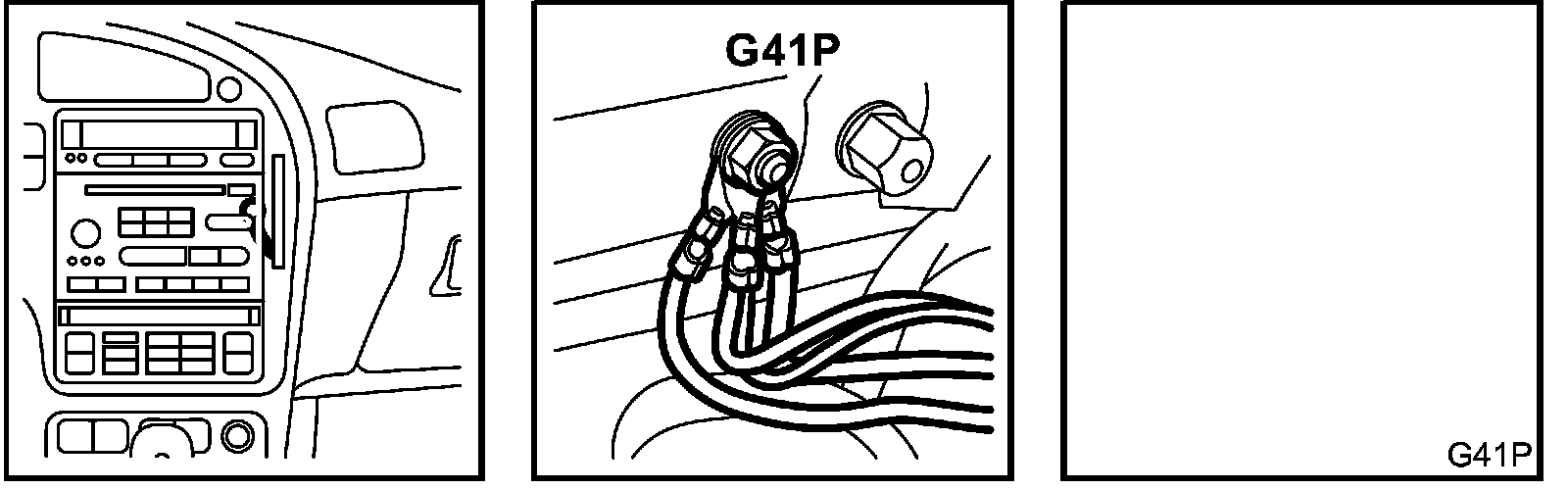

Location:
Left grounding screw on middle of knee member (in cabin)

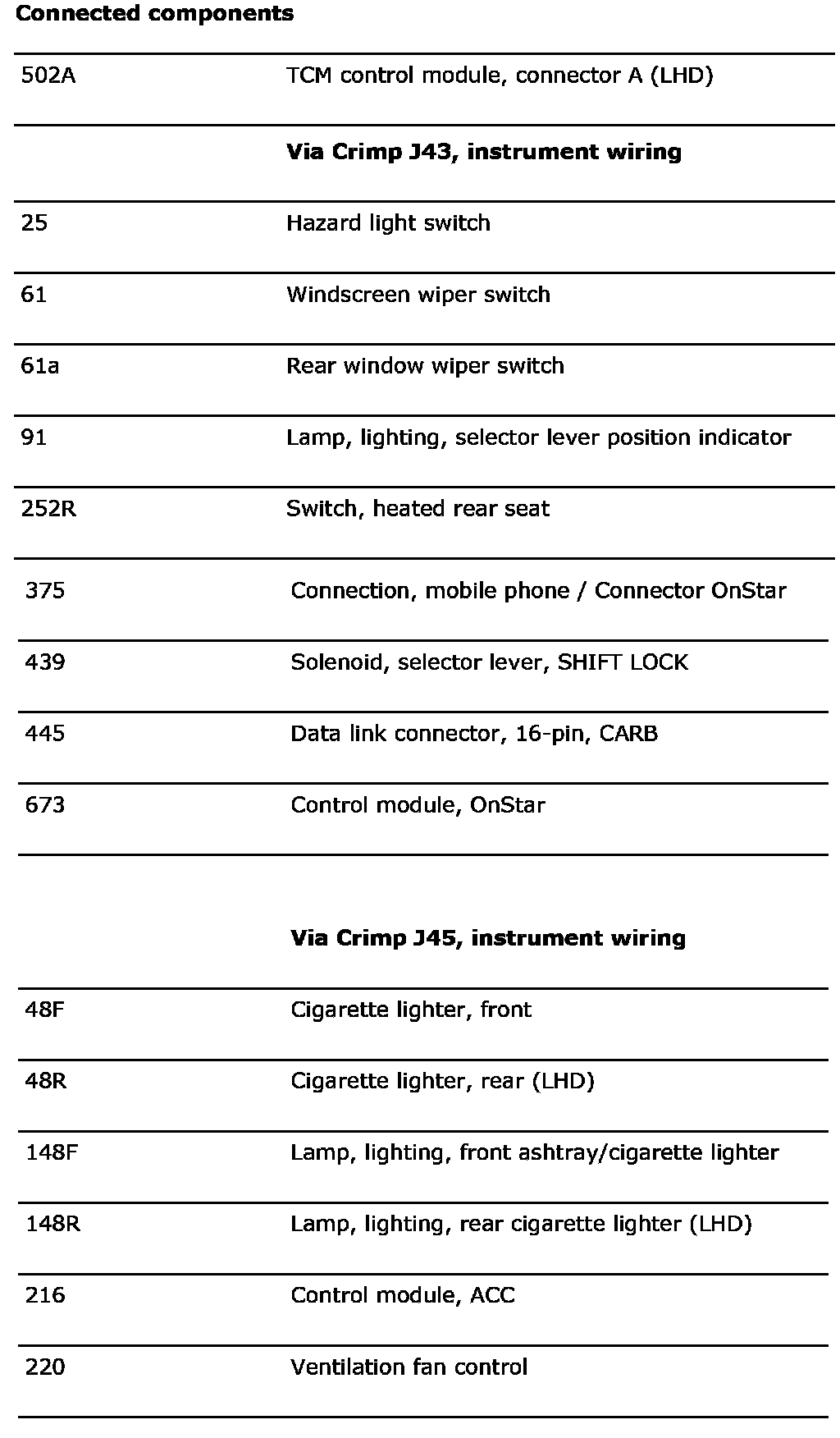

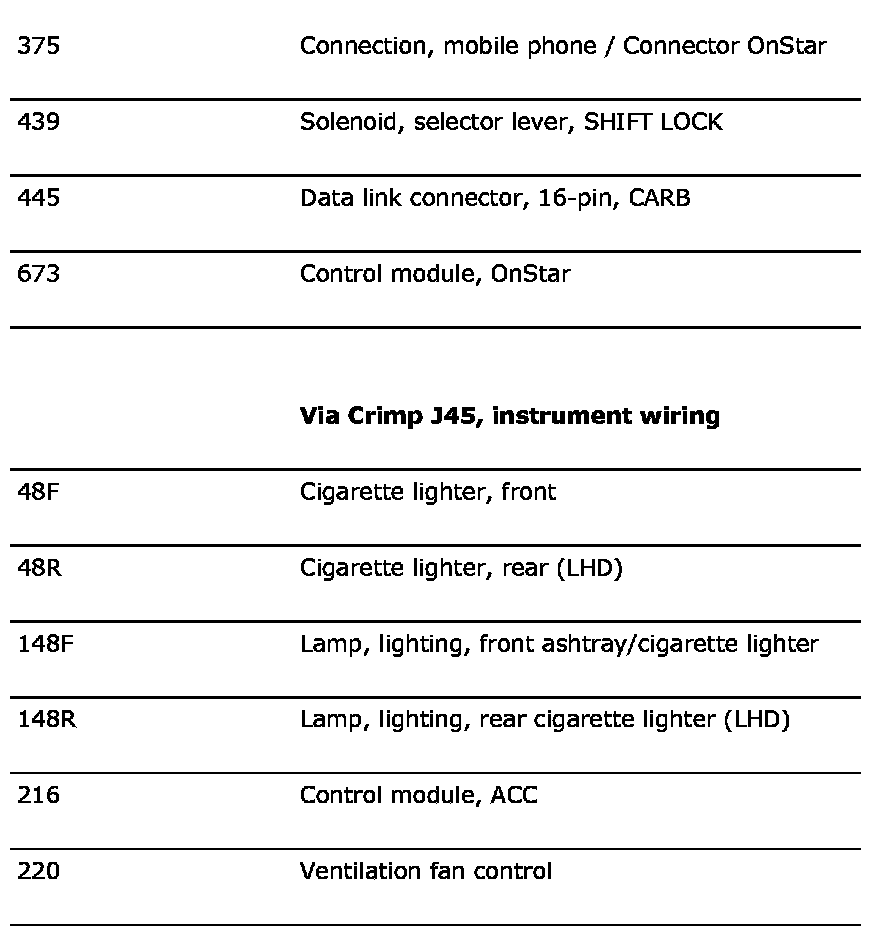

Connector Components (Part 2):
