Grounding Point G4
Grounding Point G4
Grounding Point G4

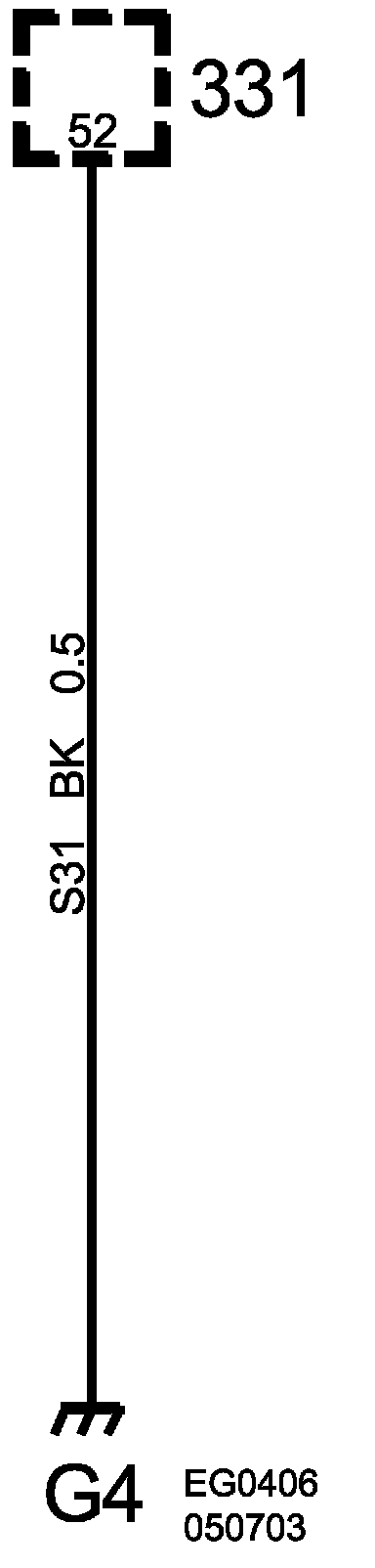

Grounding Point G4:

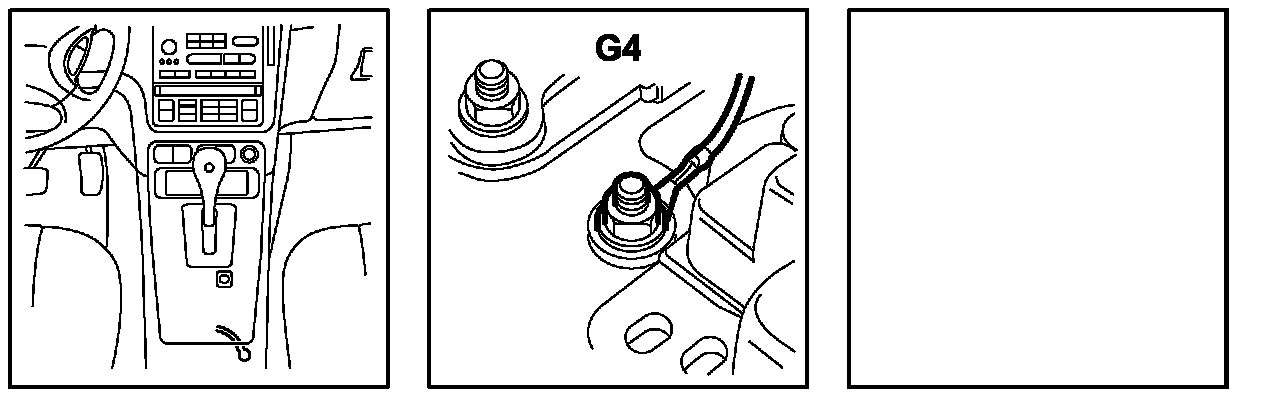

Location:
On centre console between front seats.

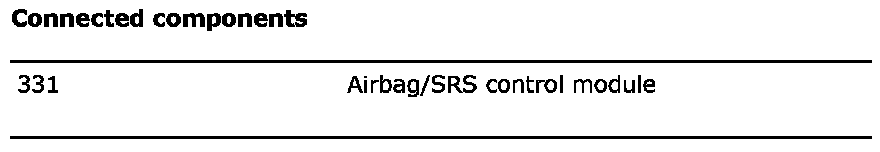

Connected Components:
