Grounding Point G24
Grounding Point G24
Grounding Point G24

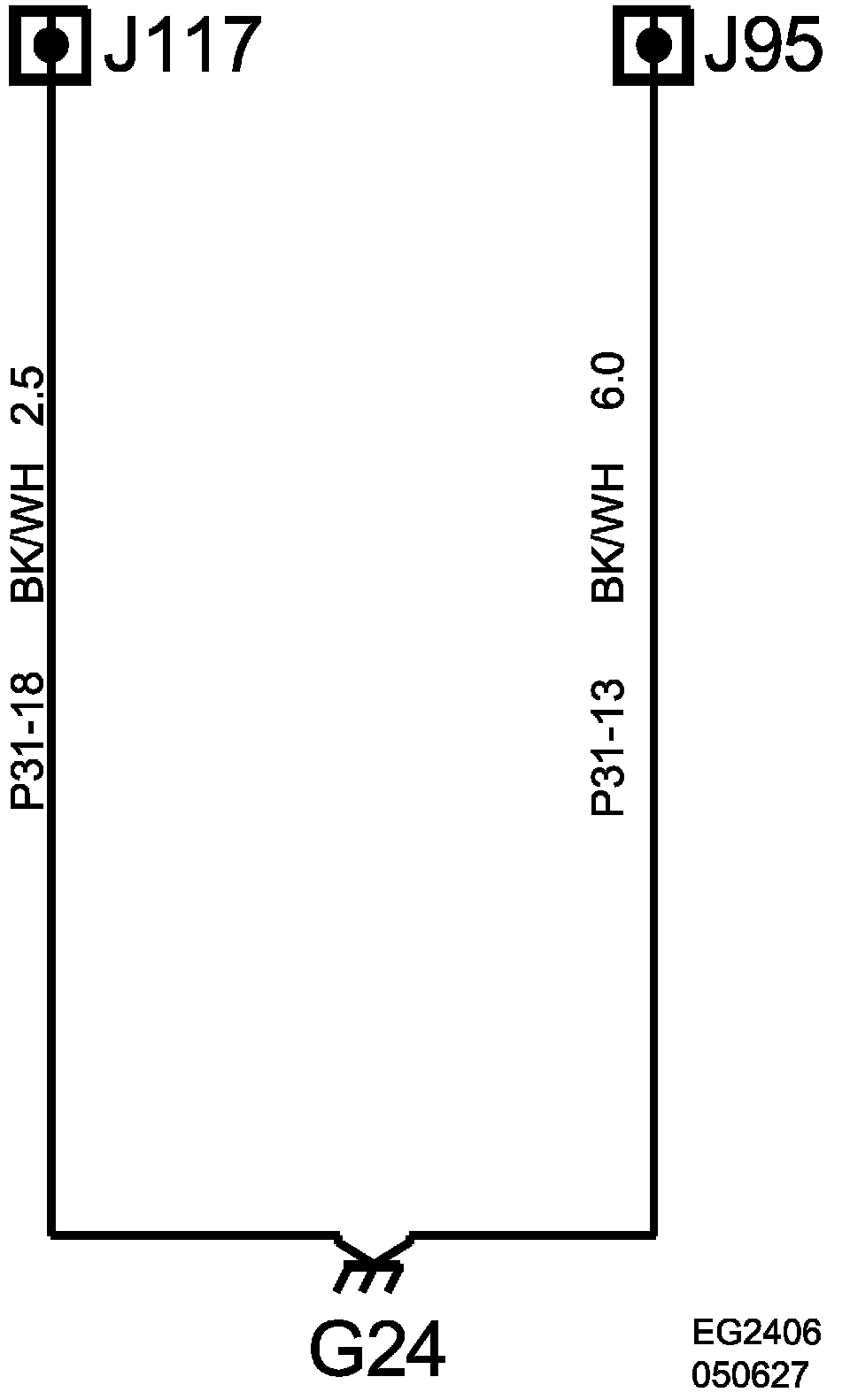

Grounding Point G24:

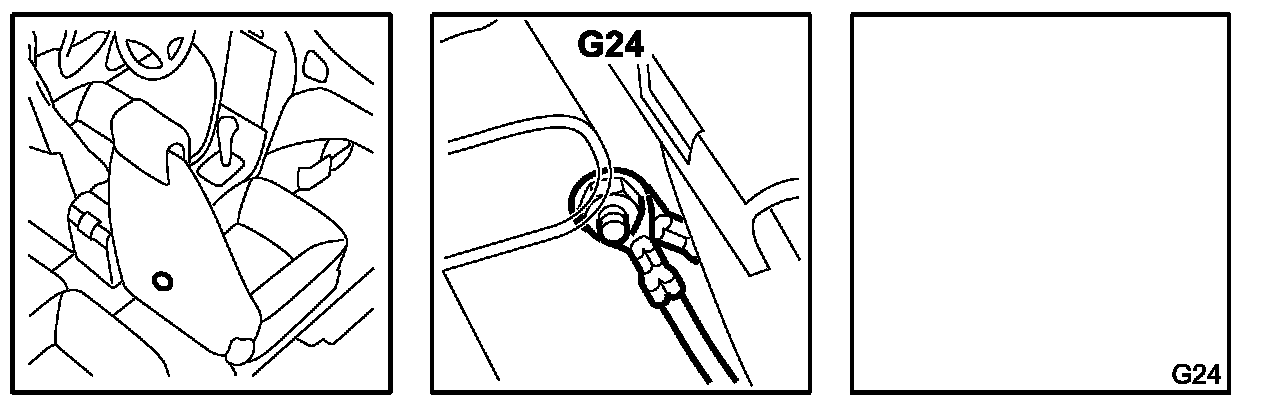

Location:
On seat member under RH seat.

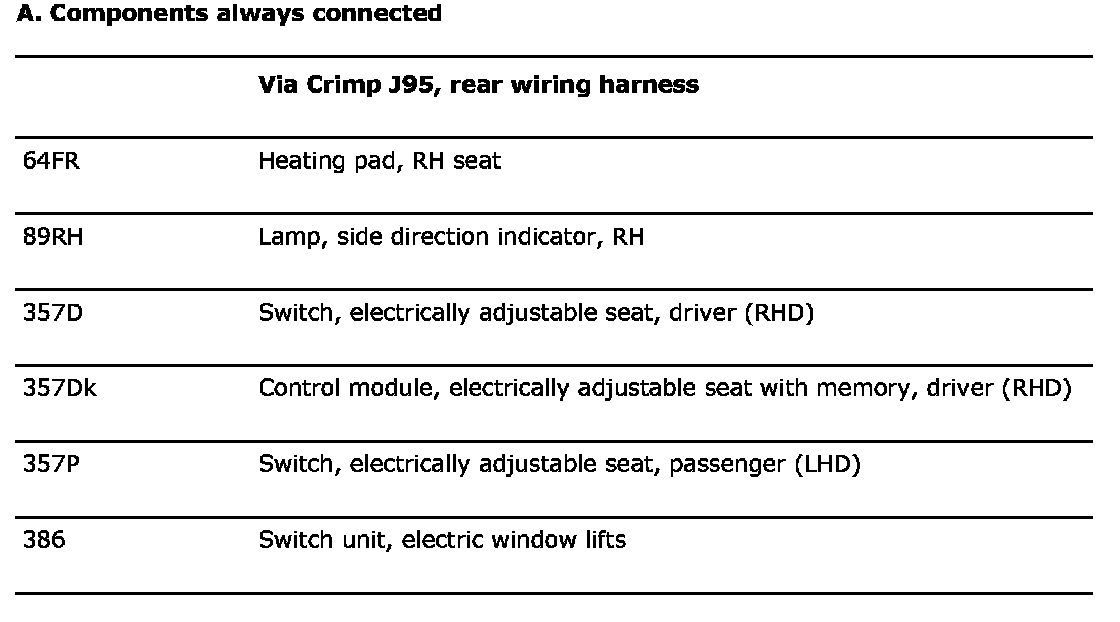

Connected Components (Part 1):

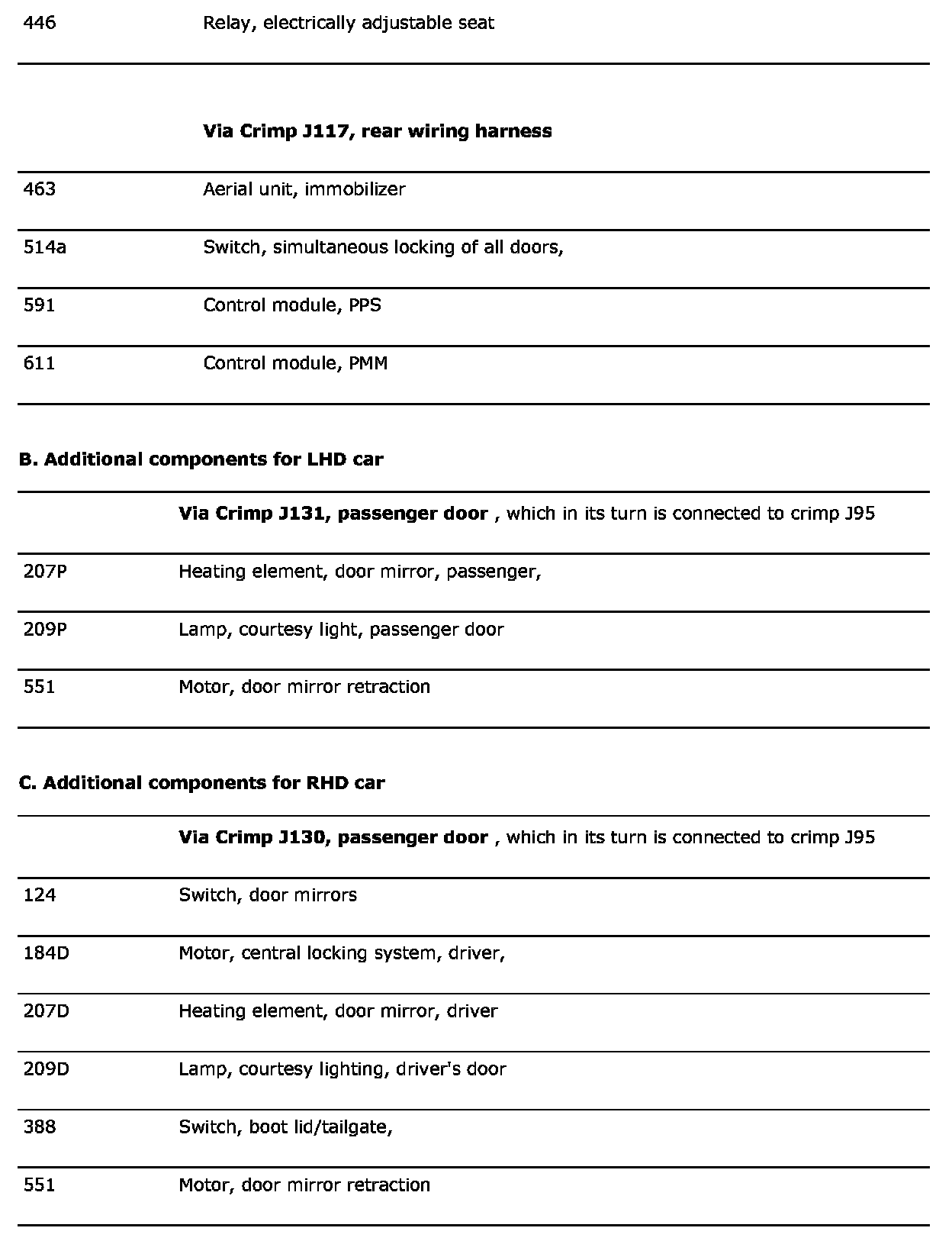

Connected Components (Part 2):
