Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Board 342a In Engine Bay

Fuse Board 342a In Engine Bay

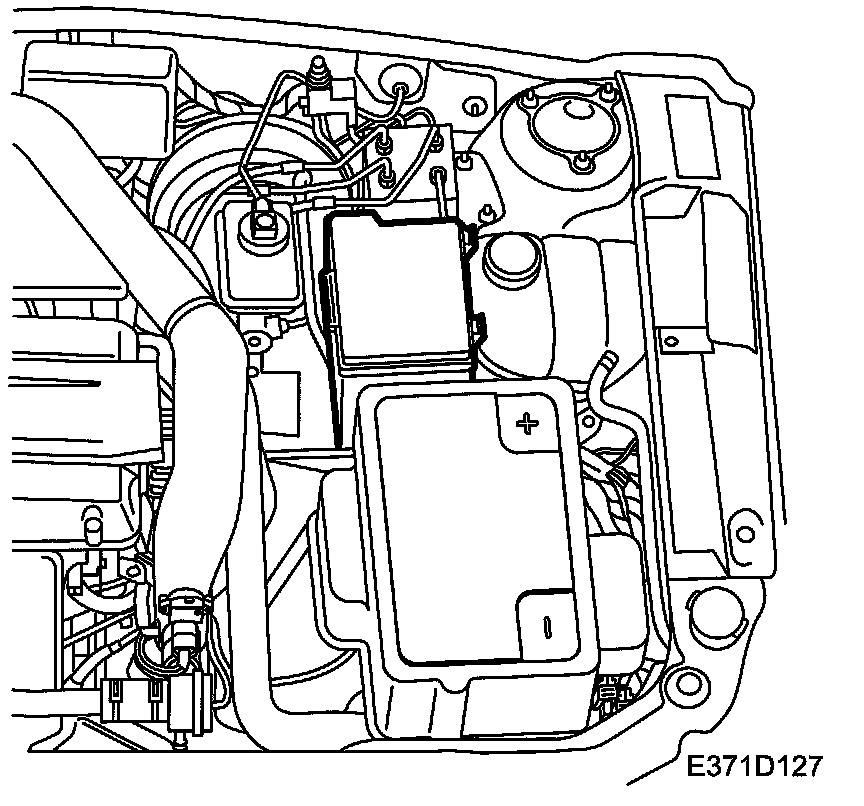

Location: Behind the battery.

Left socket (maxi fuse = upper socket) is for input voltage.

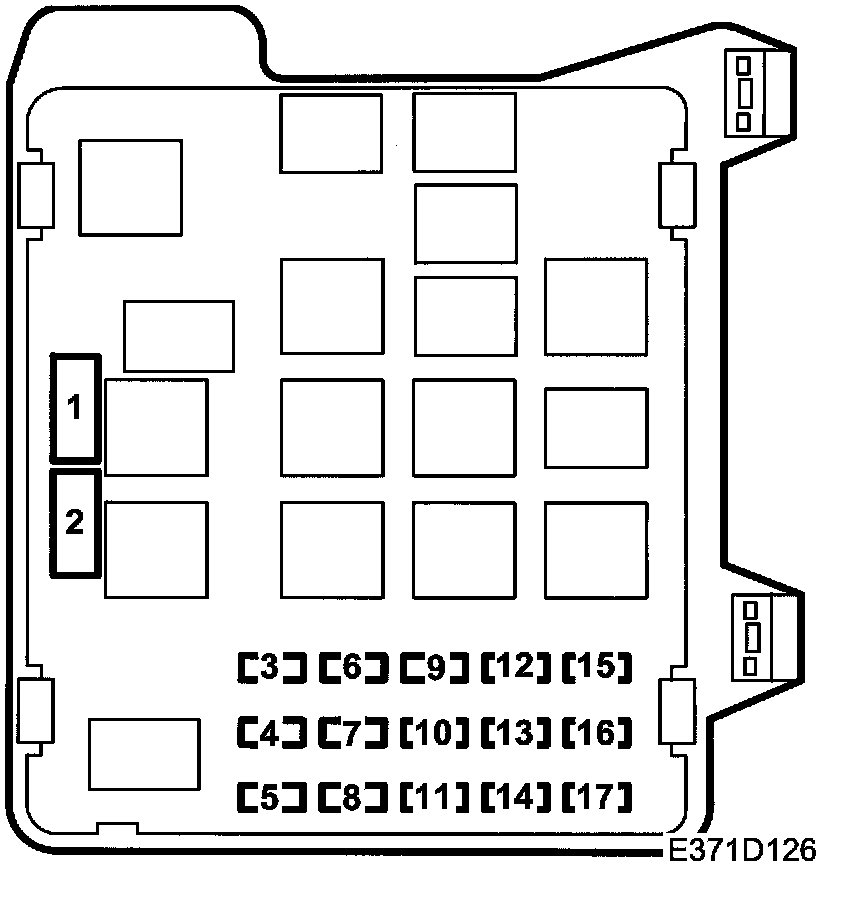

Fuse Box 342a In the Engine Bay:

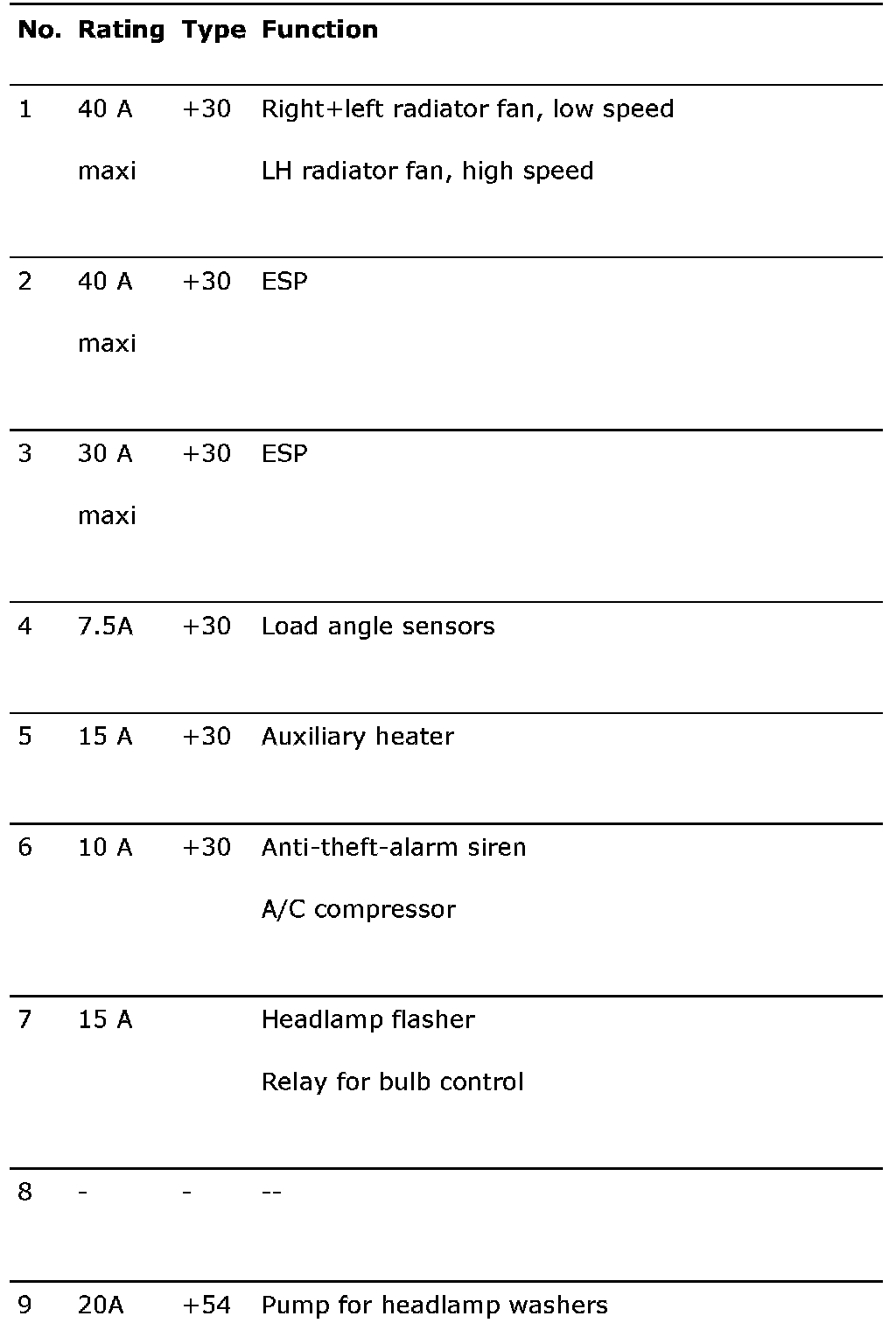

Part 1:

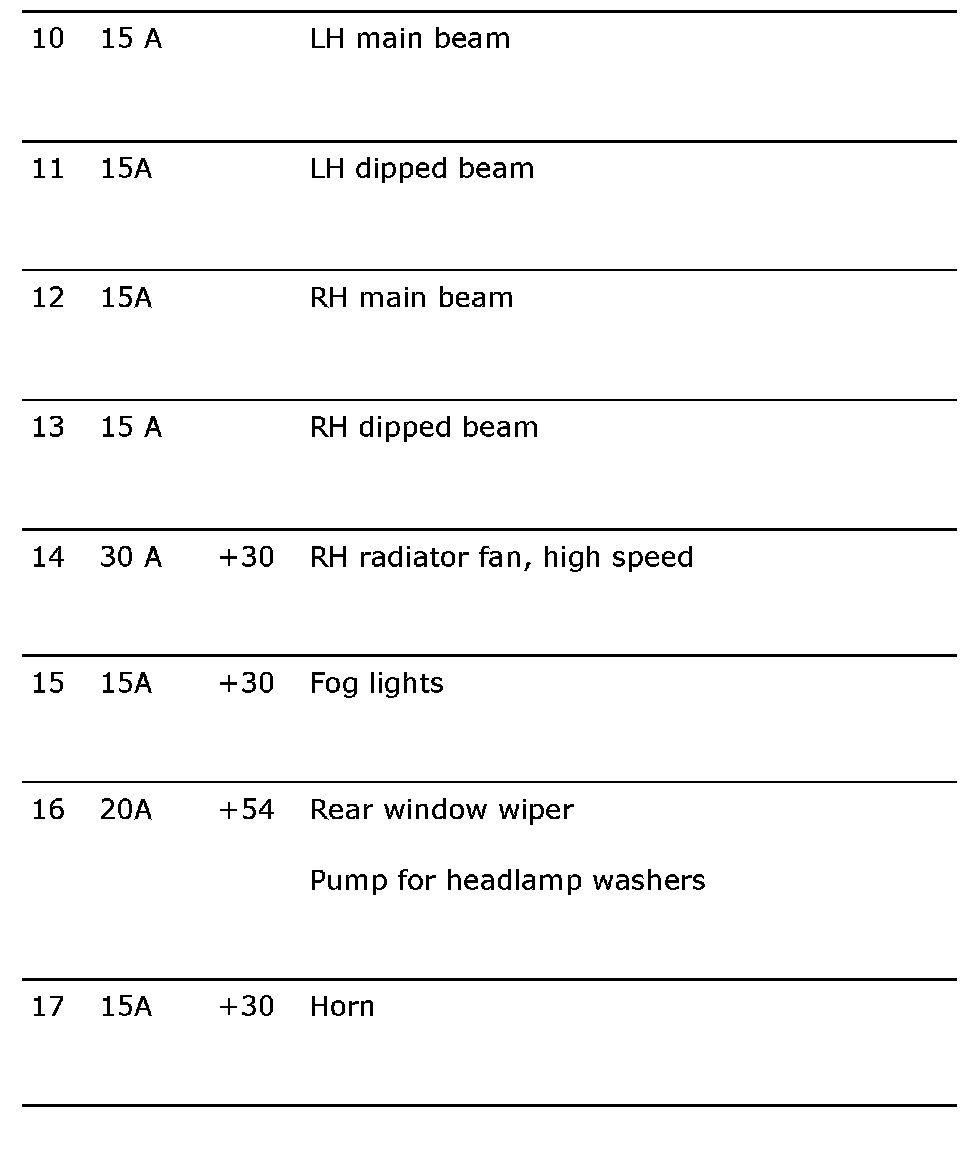

Part 2:
