Fuse Board 22a In the Dashboard

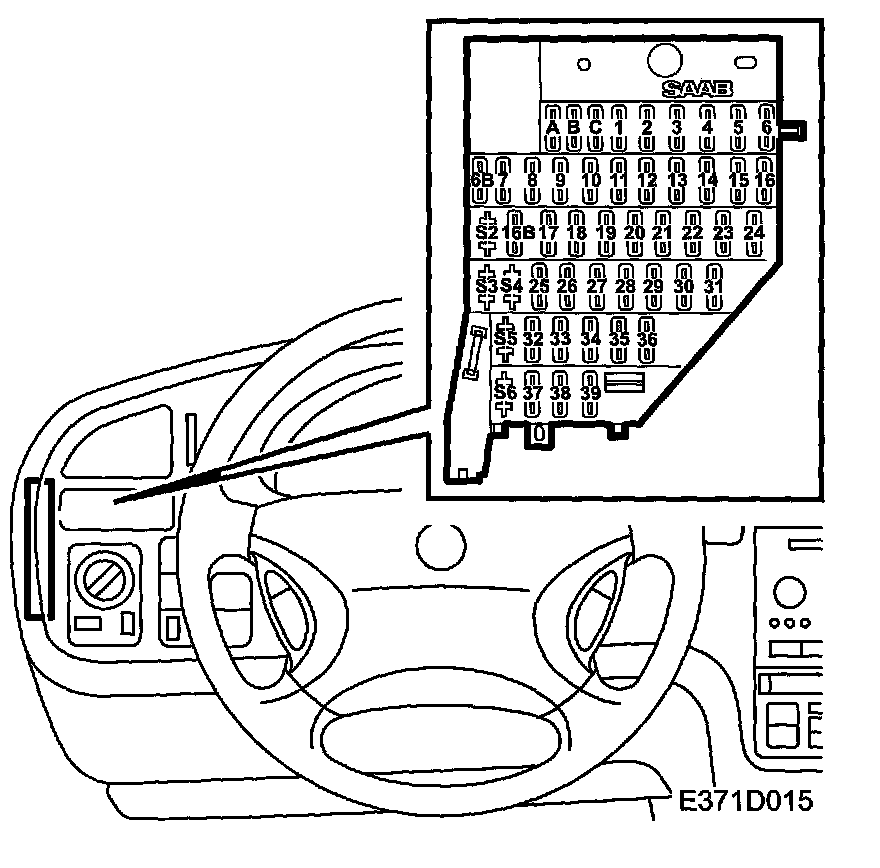

Location: On the short side of dashboard beside driver's door. Upper socket is input current.

LHD


Main Fuse Board 22a In the Dashboard:

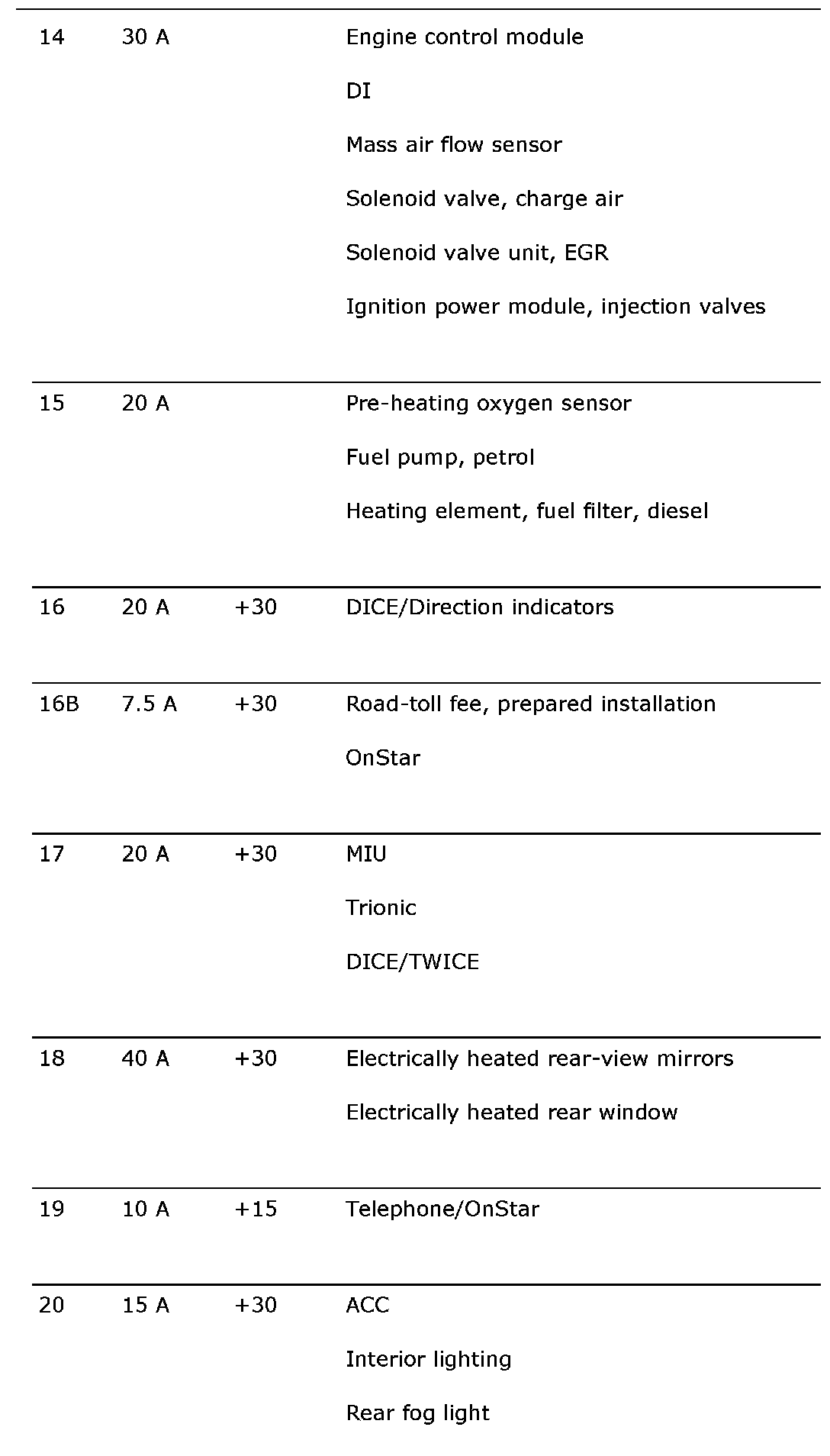

Part 1:

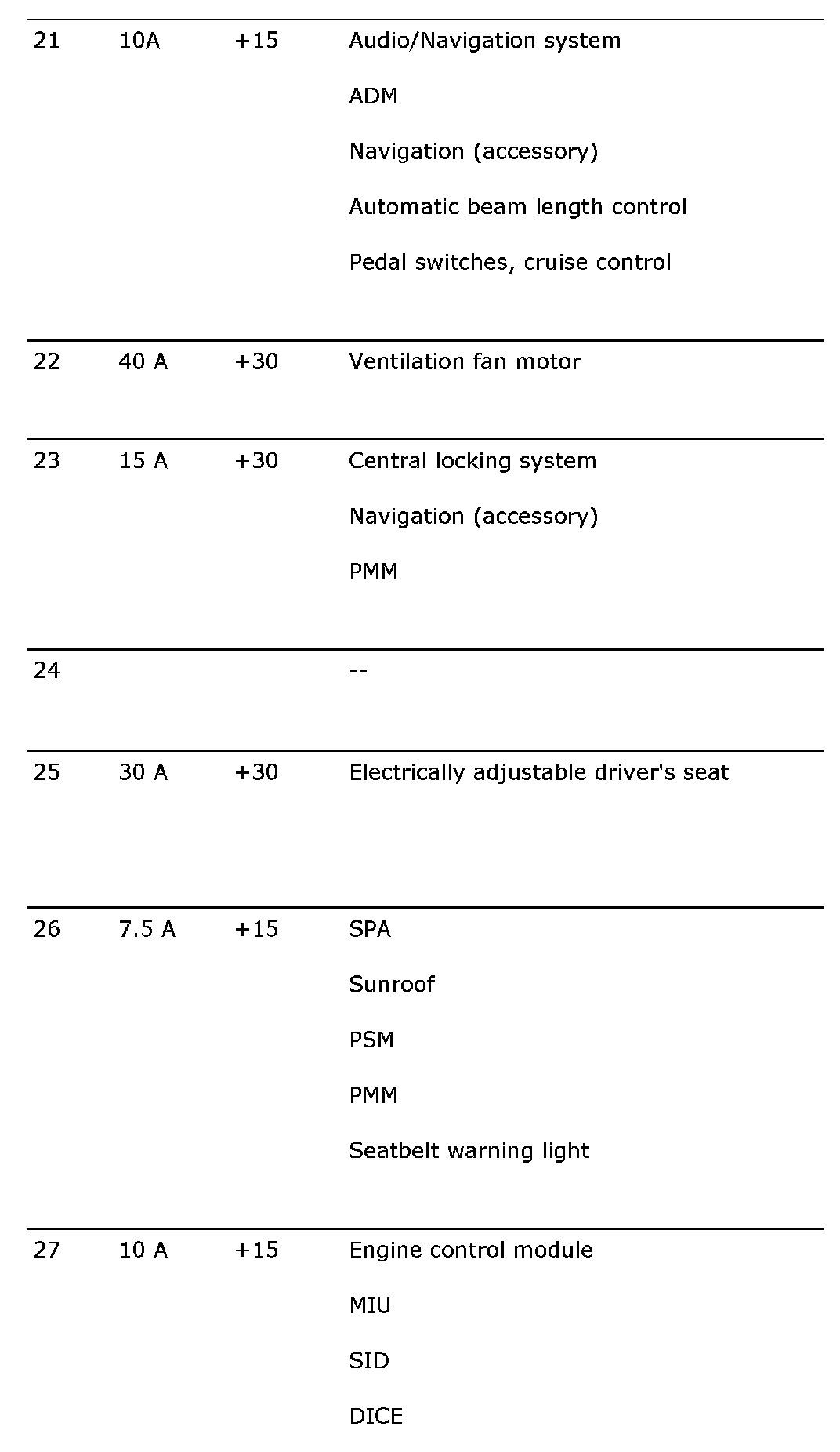

Part 2:

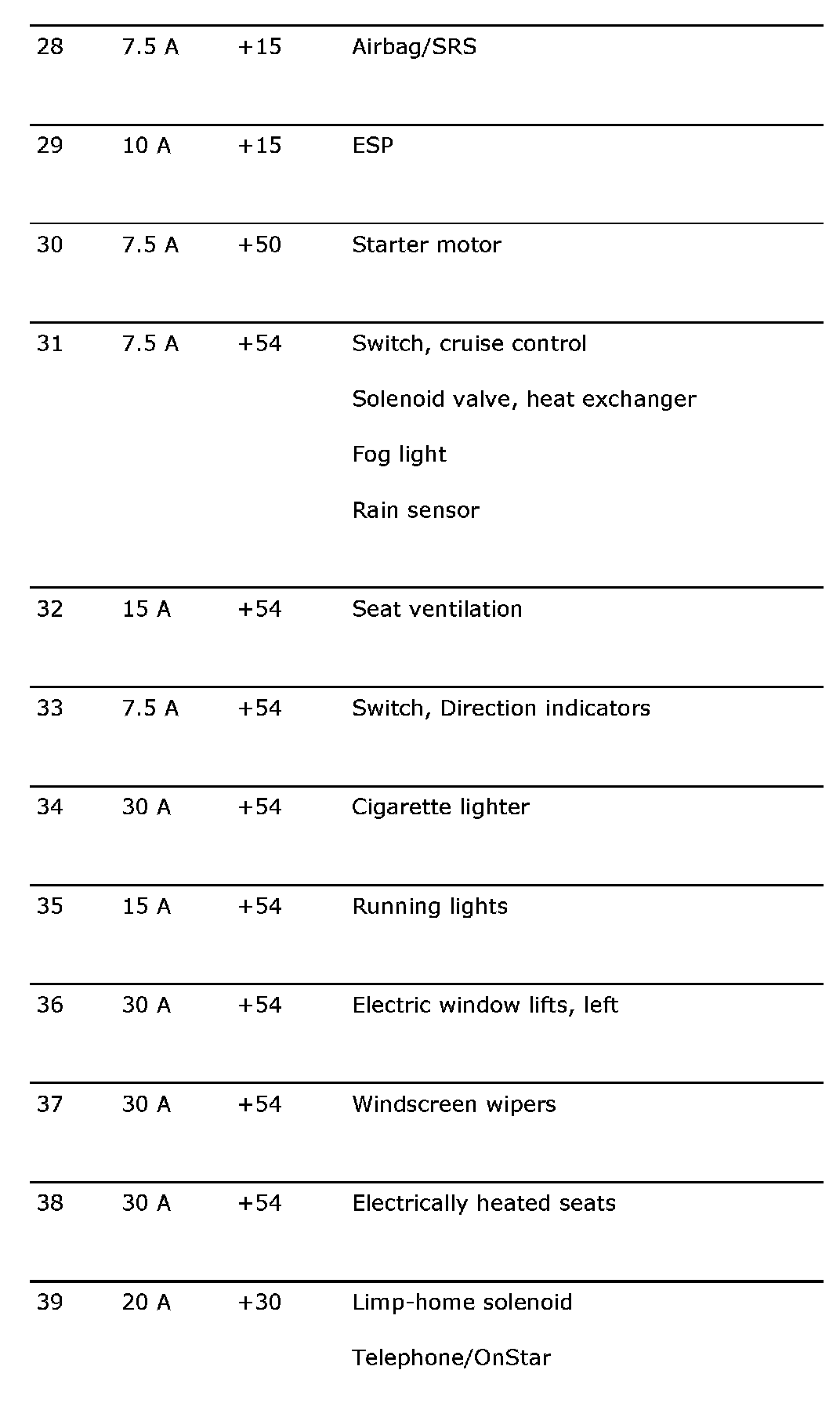

Part 3:

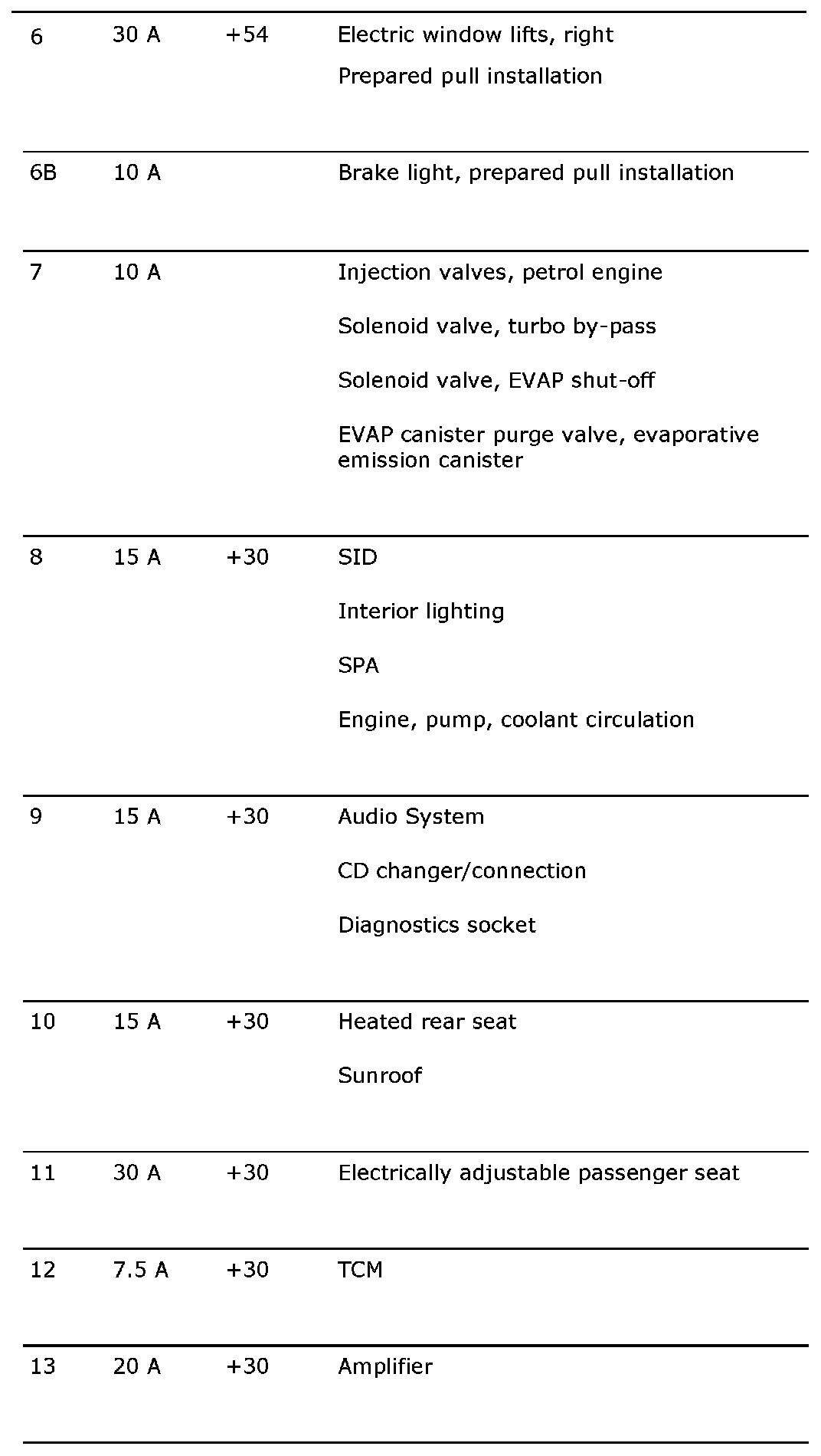

Part 4:

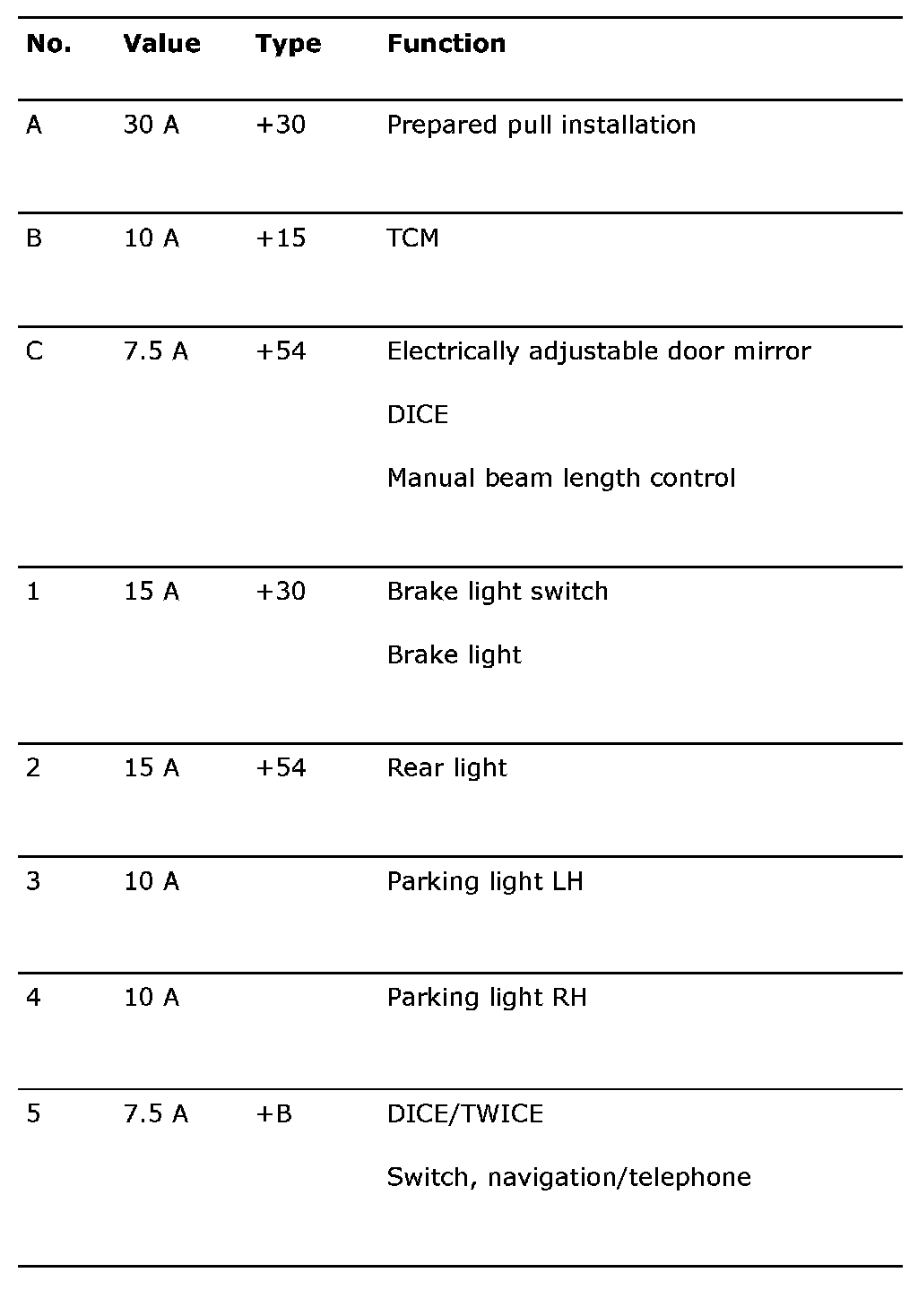

Part 5:
