Main Fuse Board 22a In the Dashboard



Main Fuse Board 22a In The Dashboard

Location: On the short side of dashboard beside driver's door.

Upper socket is input current.

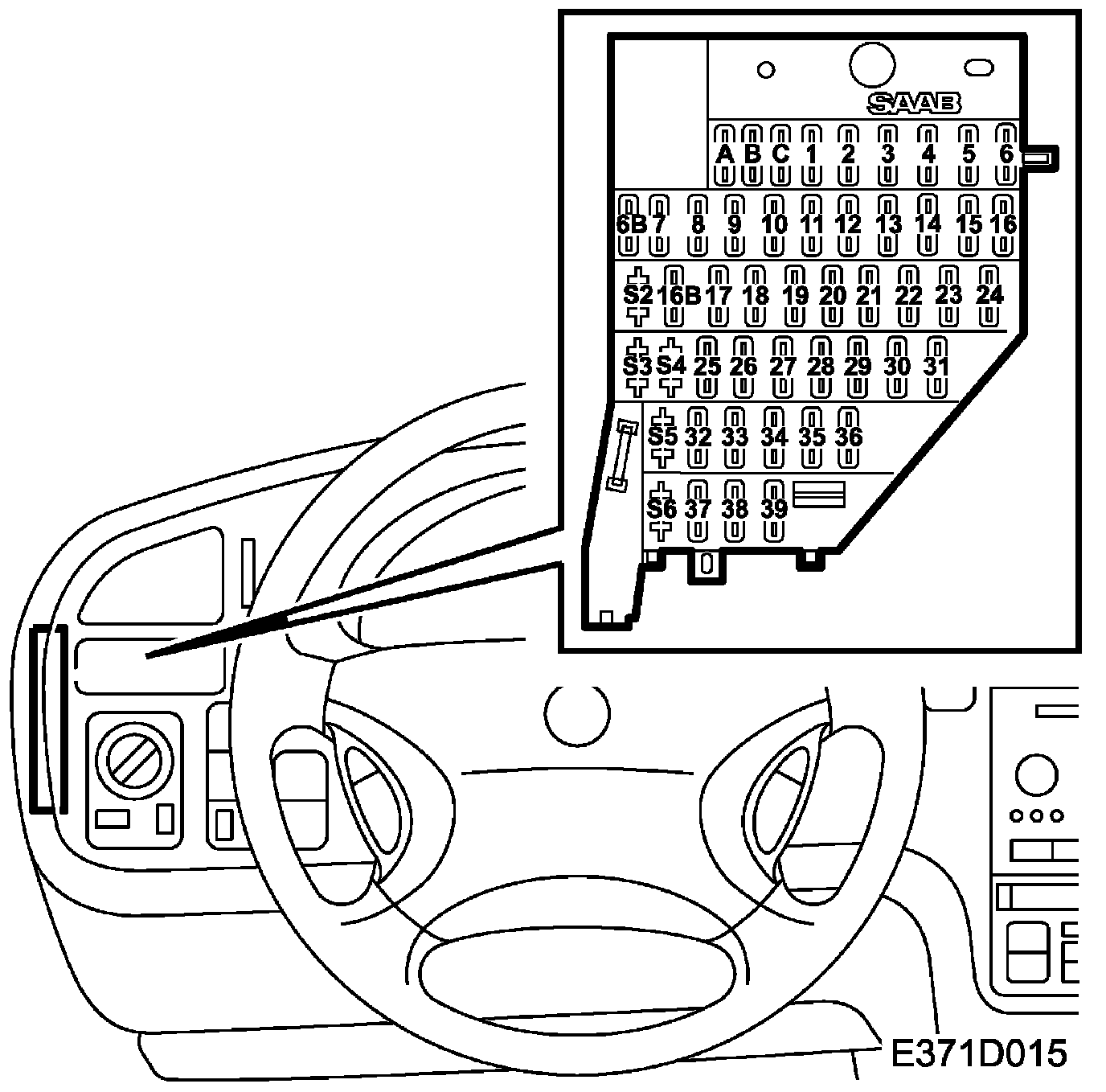

LHD

LHD:

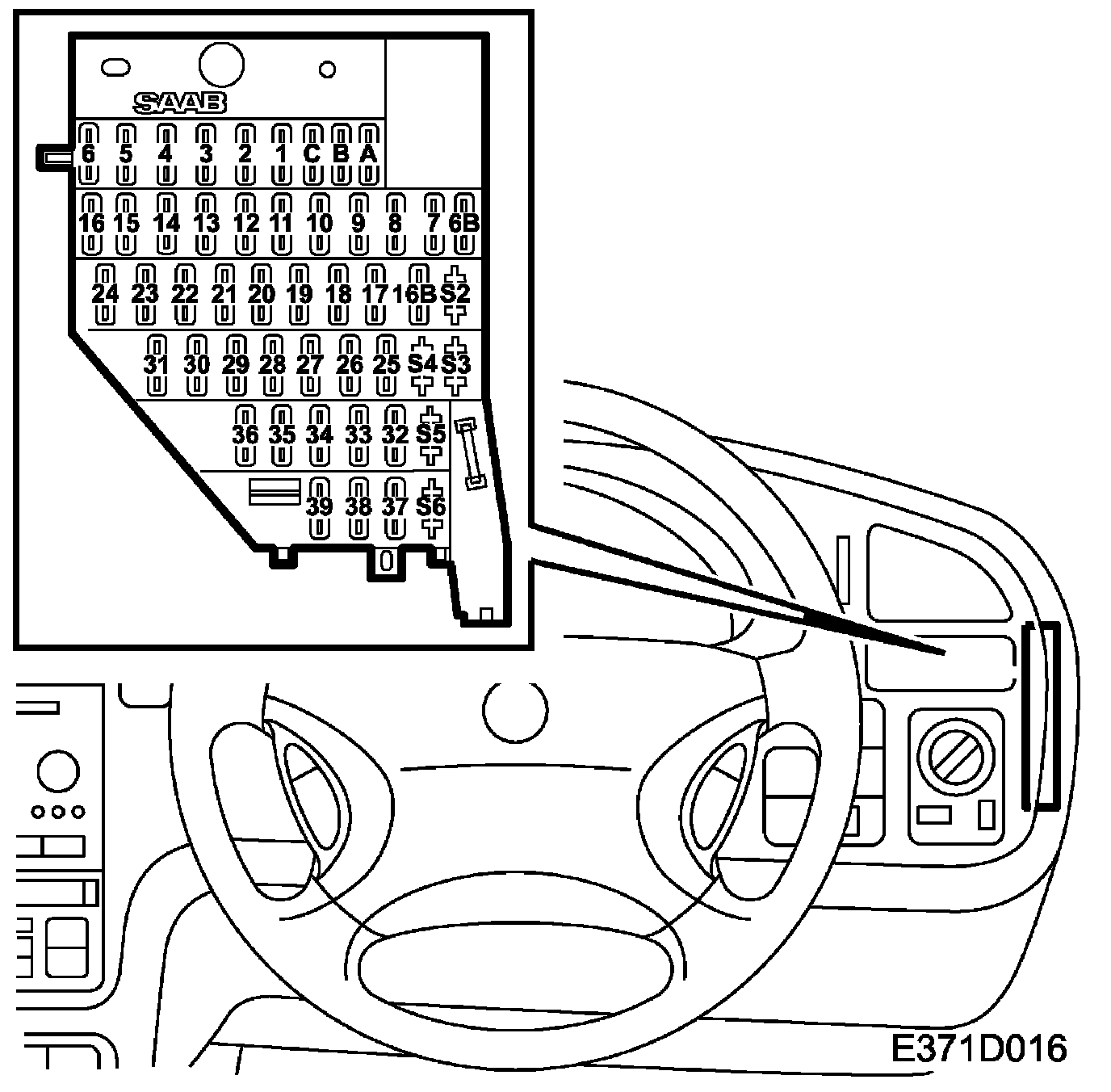

RHD

RHD:
