Fuse Board 501 For Maxi Fuses In Engine Bay
Fuse Board 501 For Maxi Fuses In Engine Bay

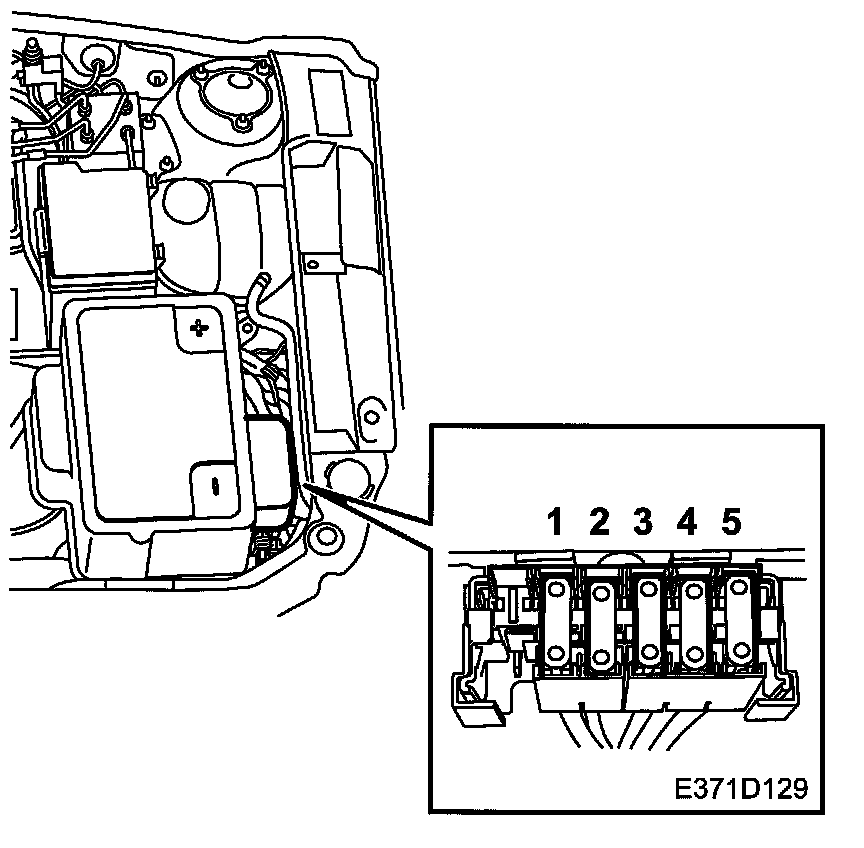

Location:
under battery cover

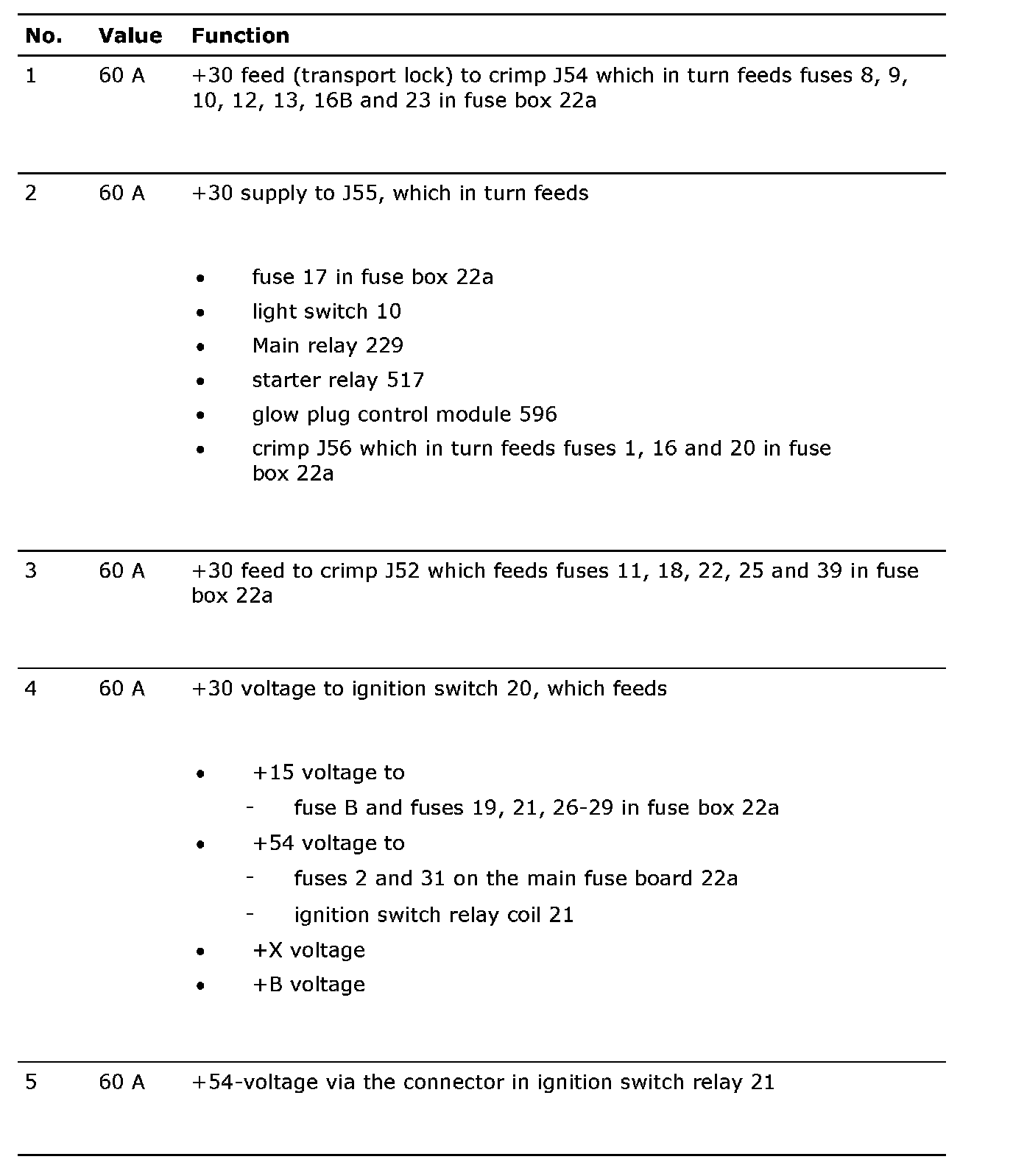

Fuse Box 501 For Maxi-Fuses In the Engine Bay:
