Grounding Point G2

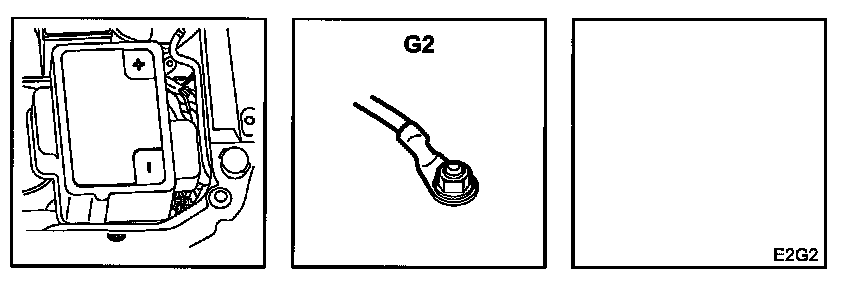

Location: Left-hand structural member behind headlamp (battery ground).

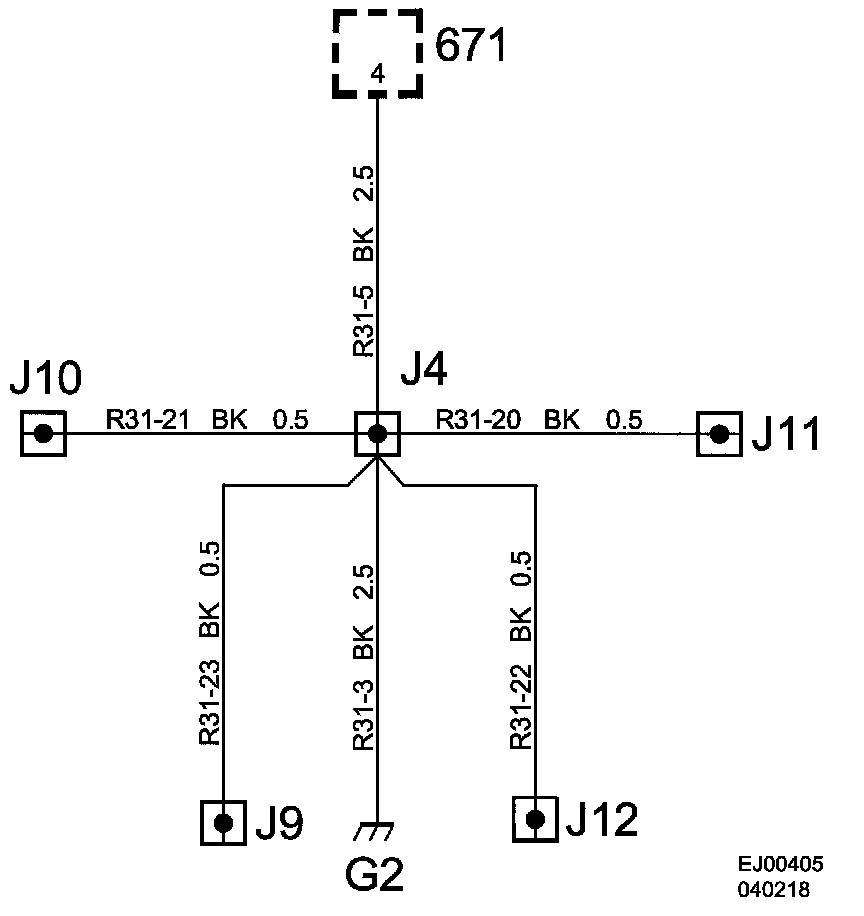

Grounding Point G2:

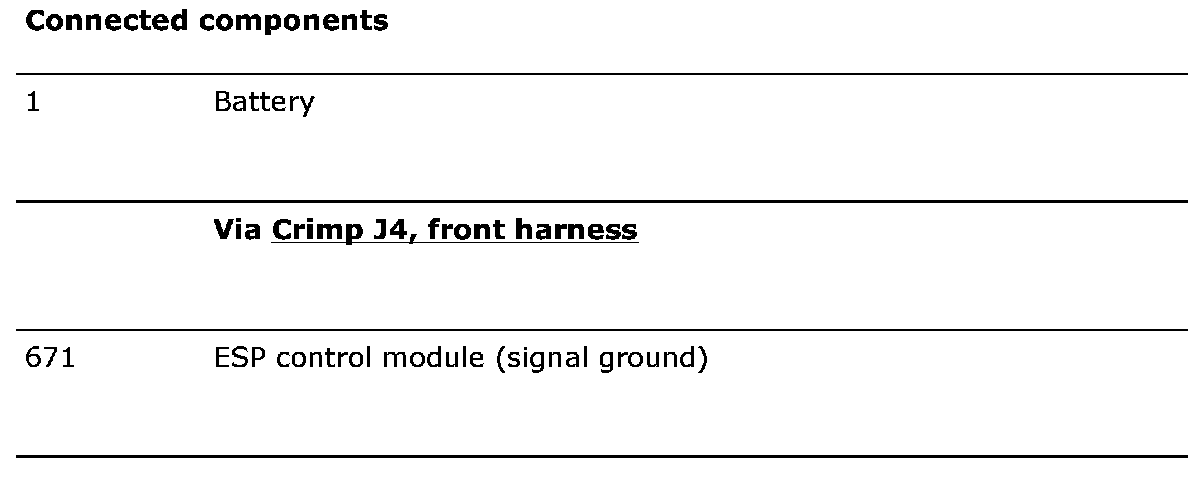

Connected Components:
