Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Specifications

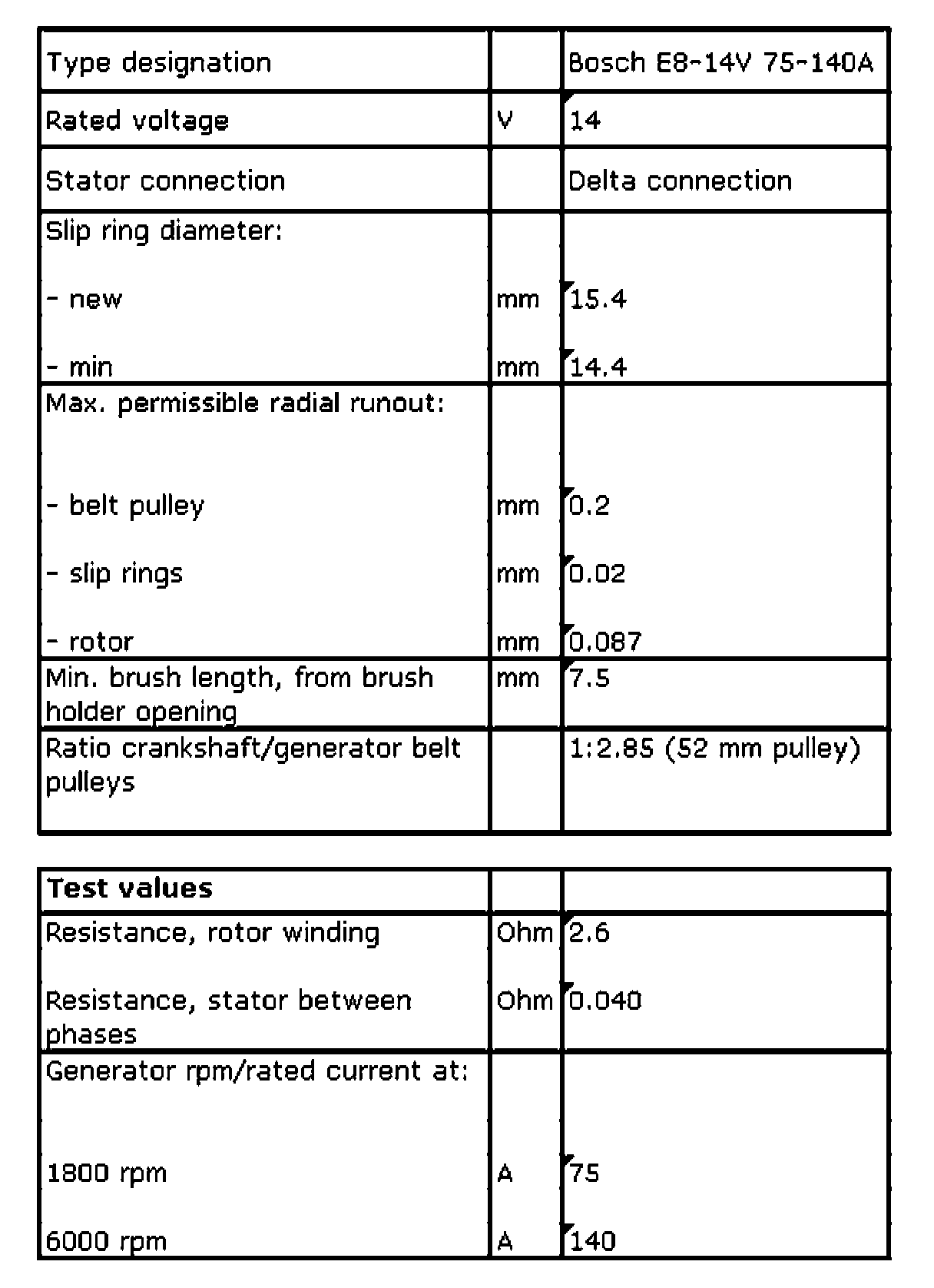

Alternator: Specifications

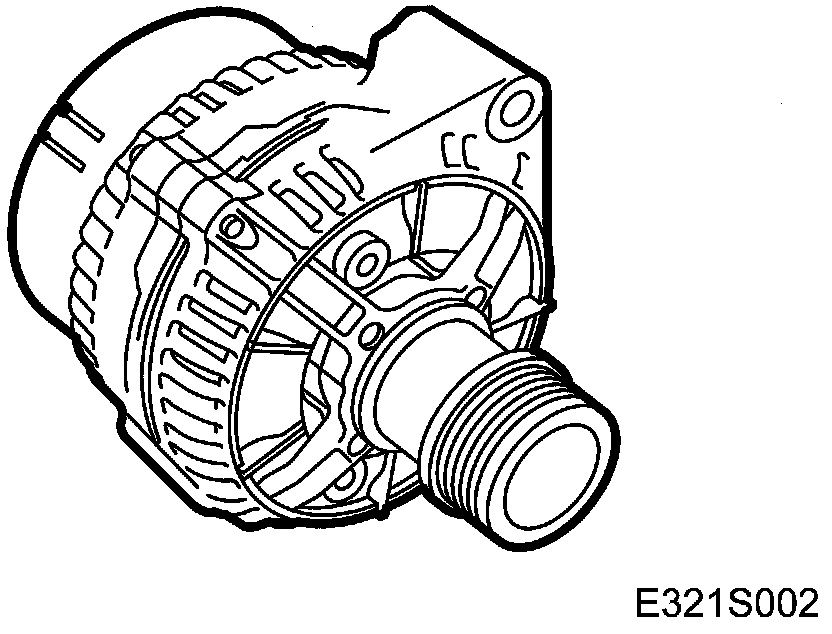

Generator 140A, 4-cyl Petrol
