Maximum Lateral Clearance Between Valve Stem and Valve Guide
Maximum Lateral Clearance Between Valve Stem and Valve Guide

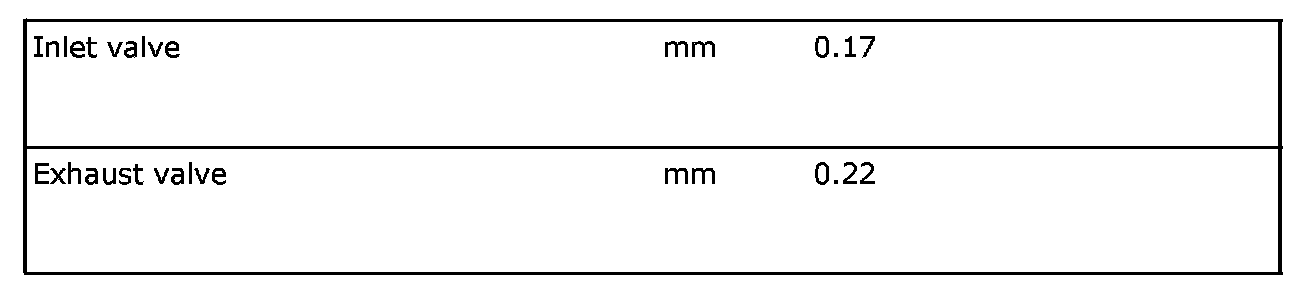

Clearance With New Engine:
Clearance is measured at the disc with the valve pulled out
3 mm
from the seat.
