Torque Specifications

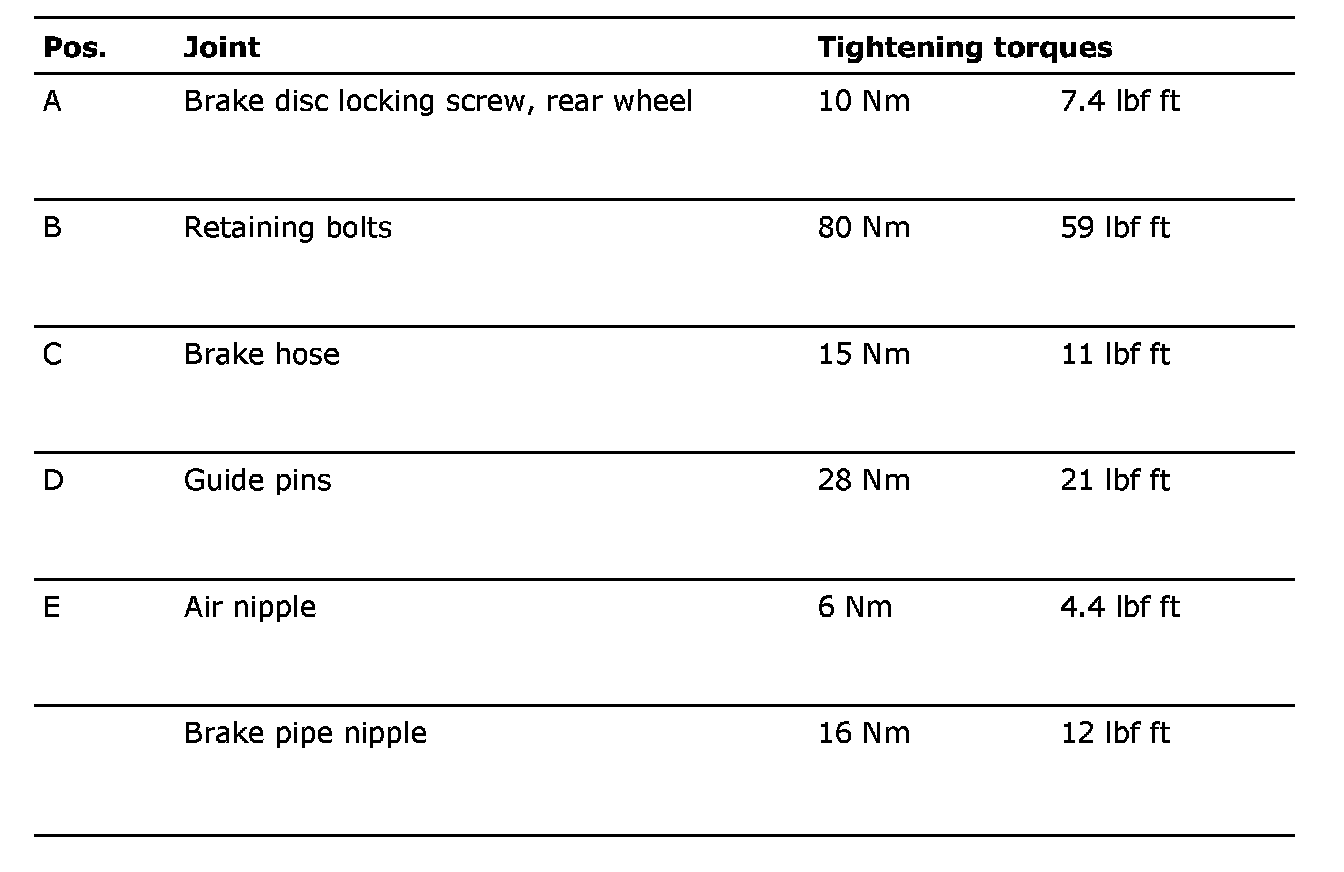

Tightening torques

Specifications Part 1:




View:




Specifications Part 2:




View:

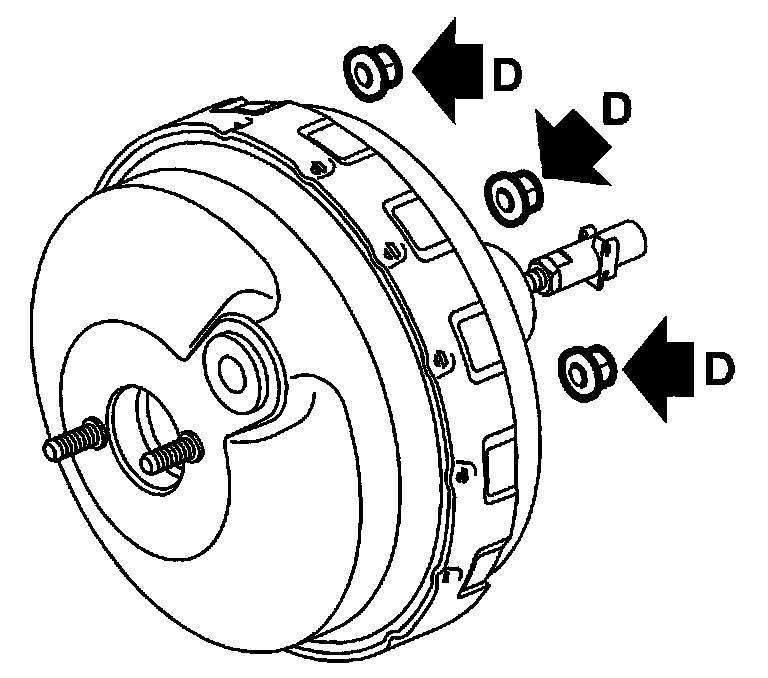

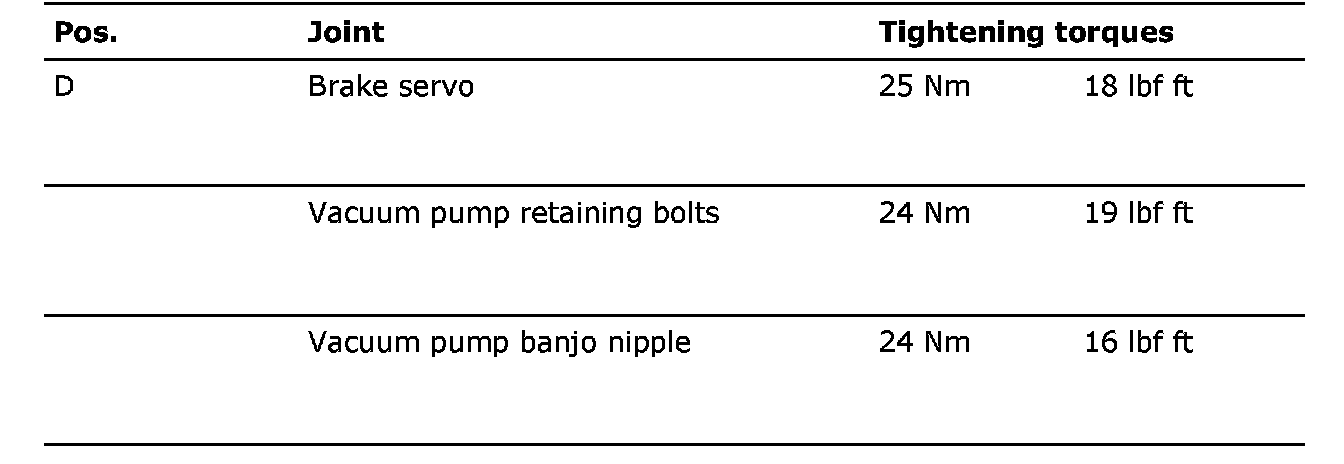

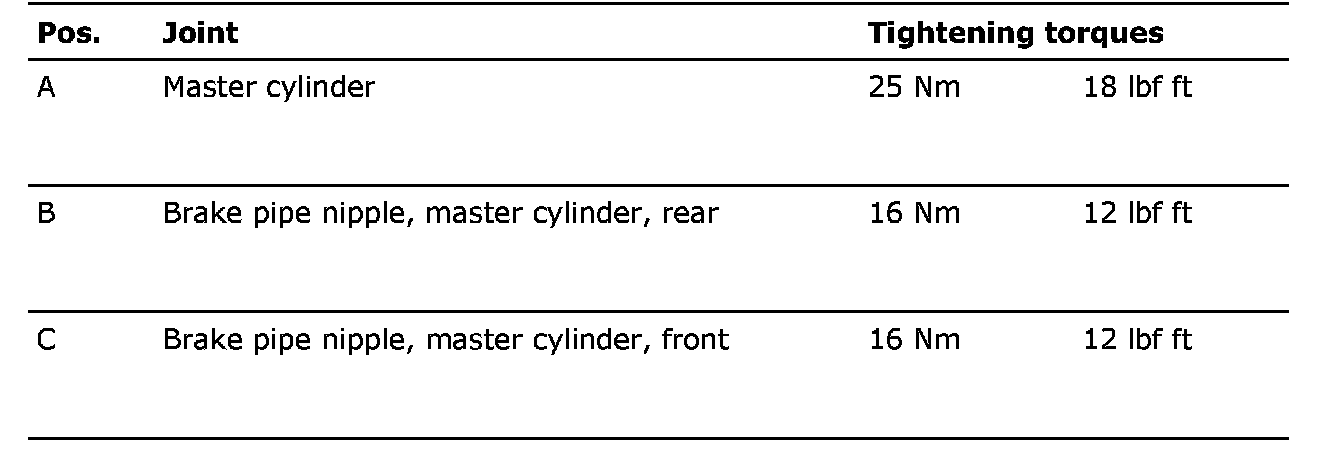

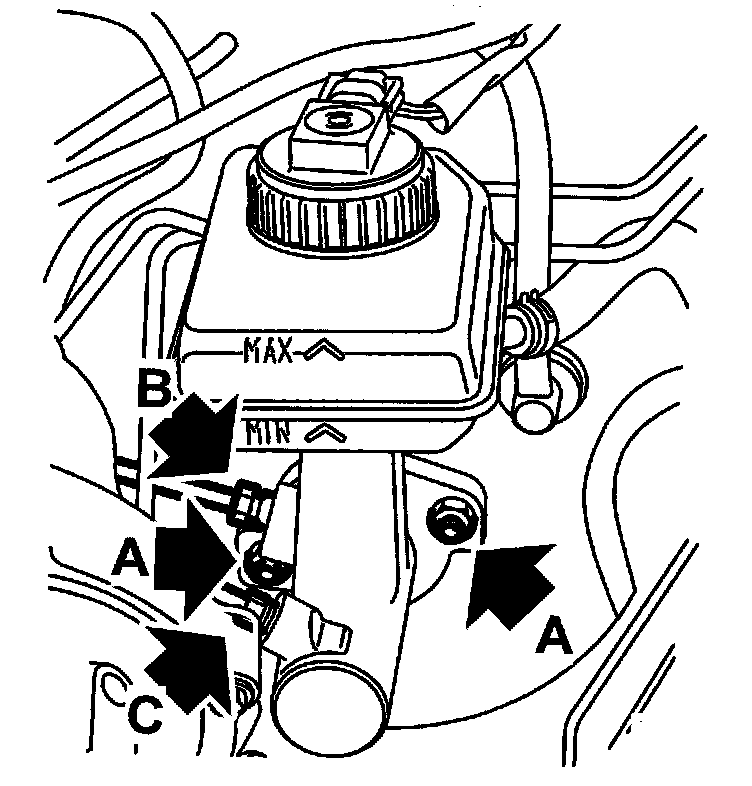

System components

Specifications Part 1:




Specifications Part 2:




View:

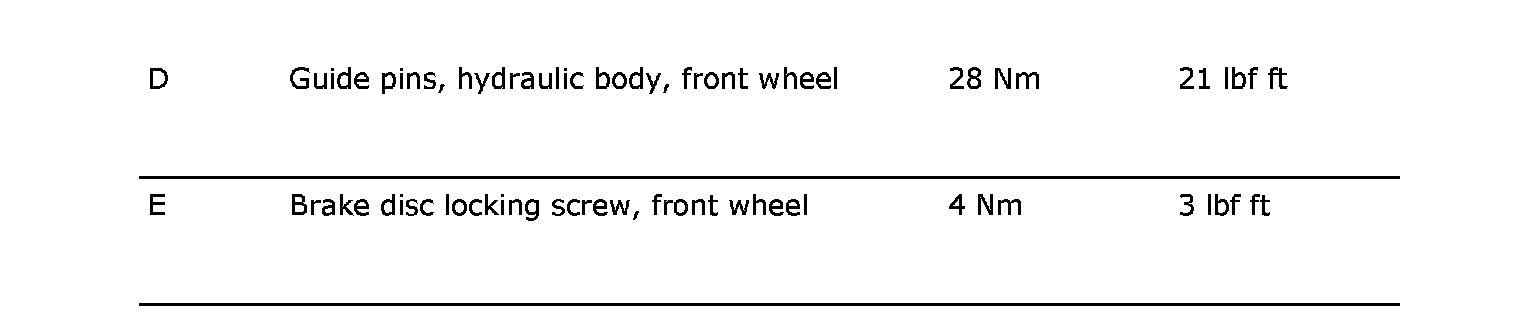

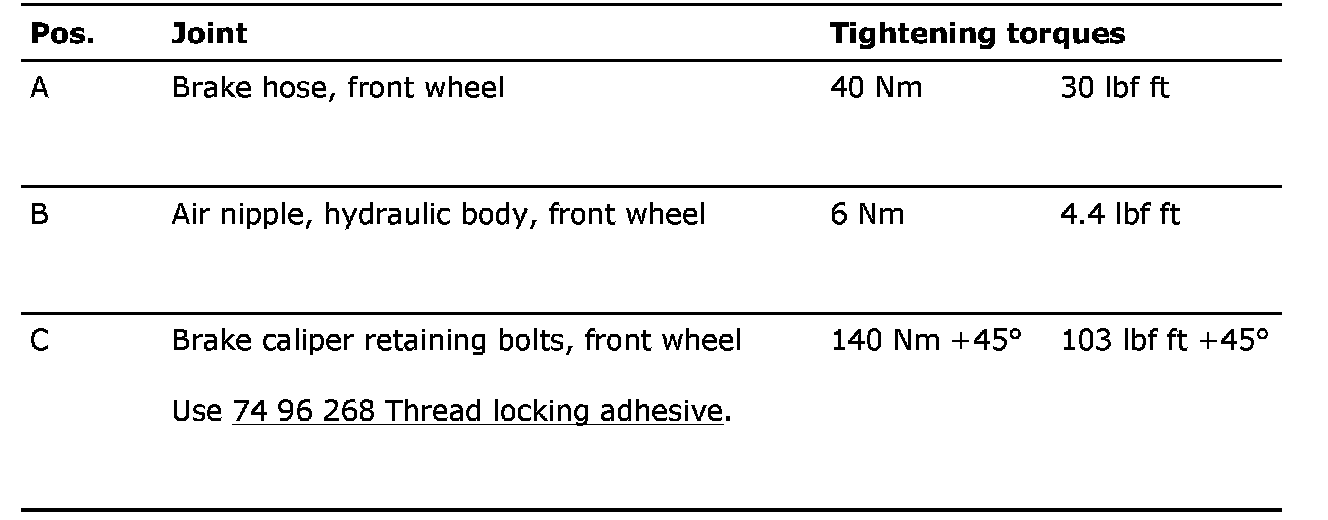

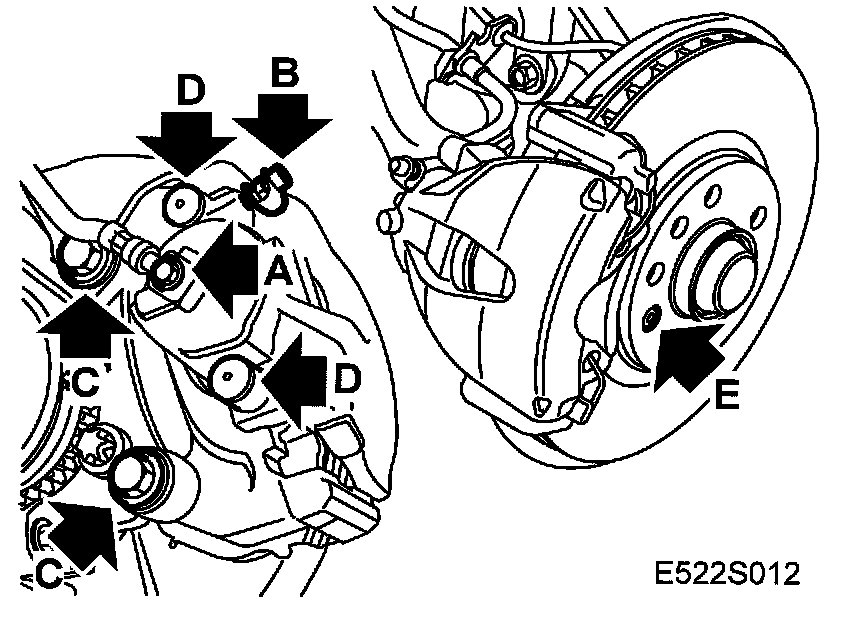

Front wheel

Specifications:




View:

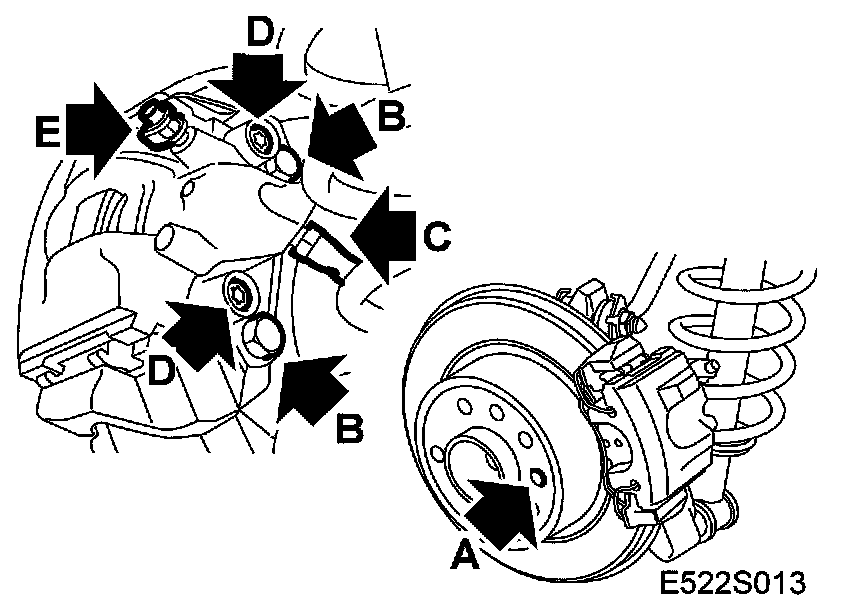

Rear wheel
