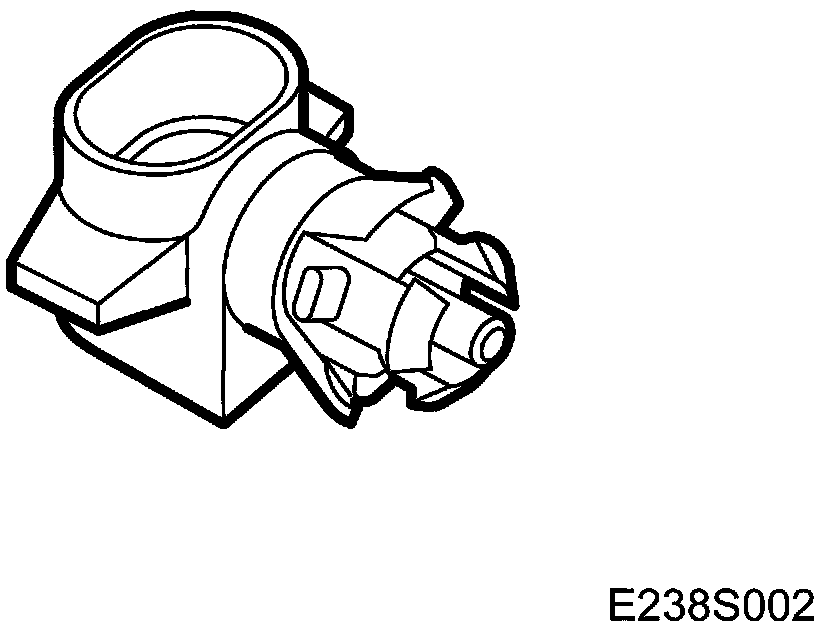

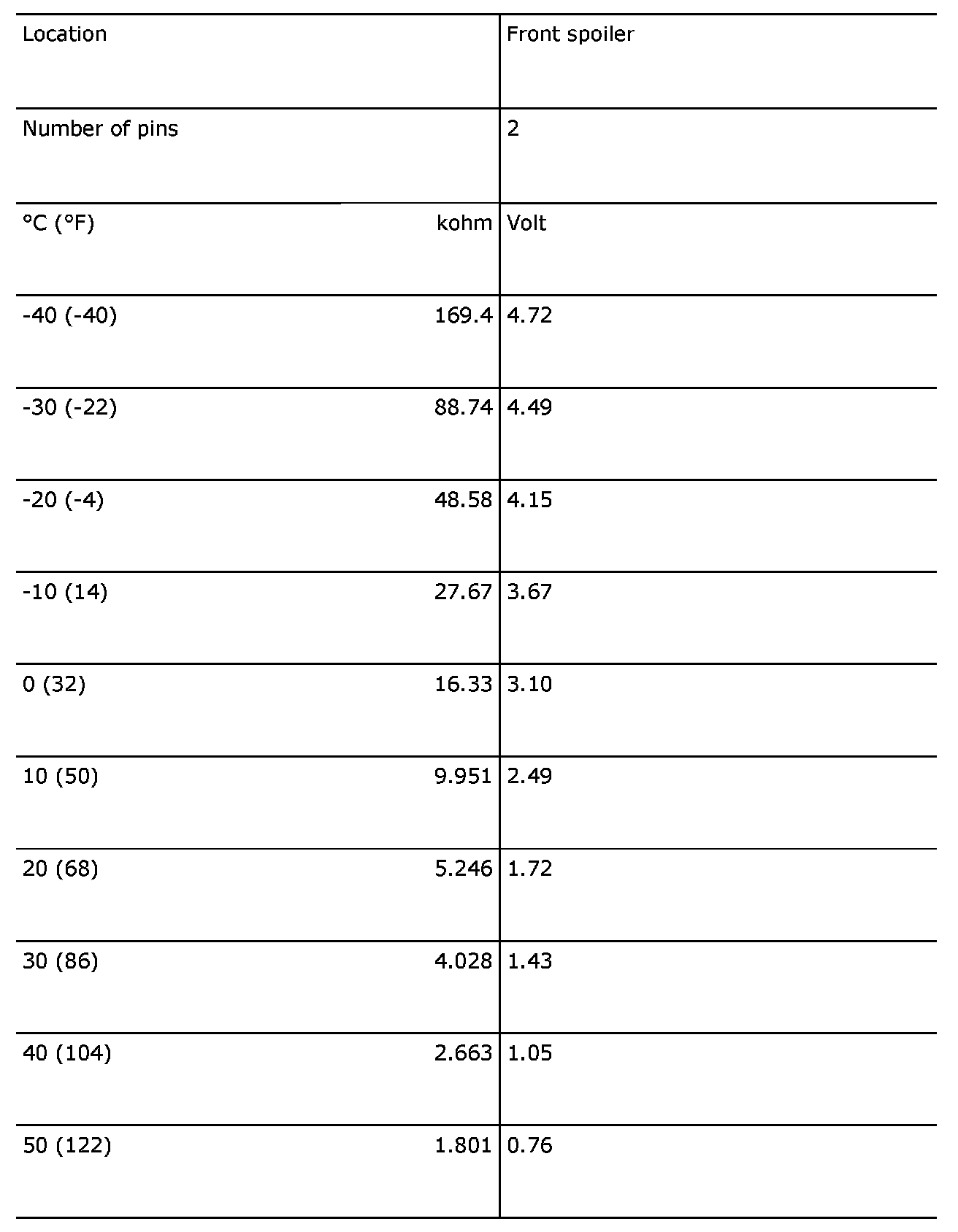

Outside Temperature Sensor



Outside Temperature Sensor

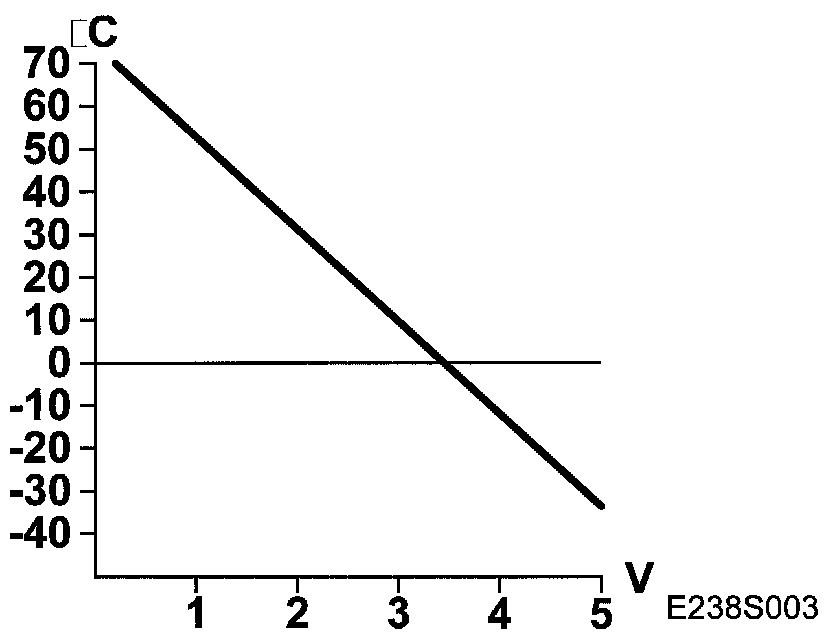

Power supply 5 V through a 10 kohm resistor in the control module.
