Ignition Control Module
Ignition Control Module

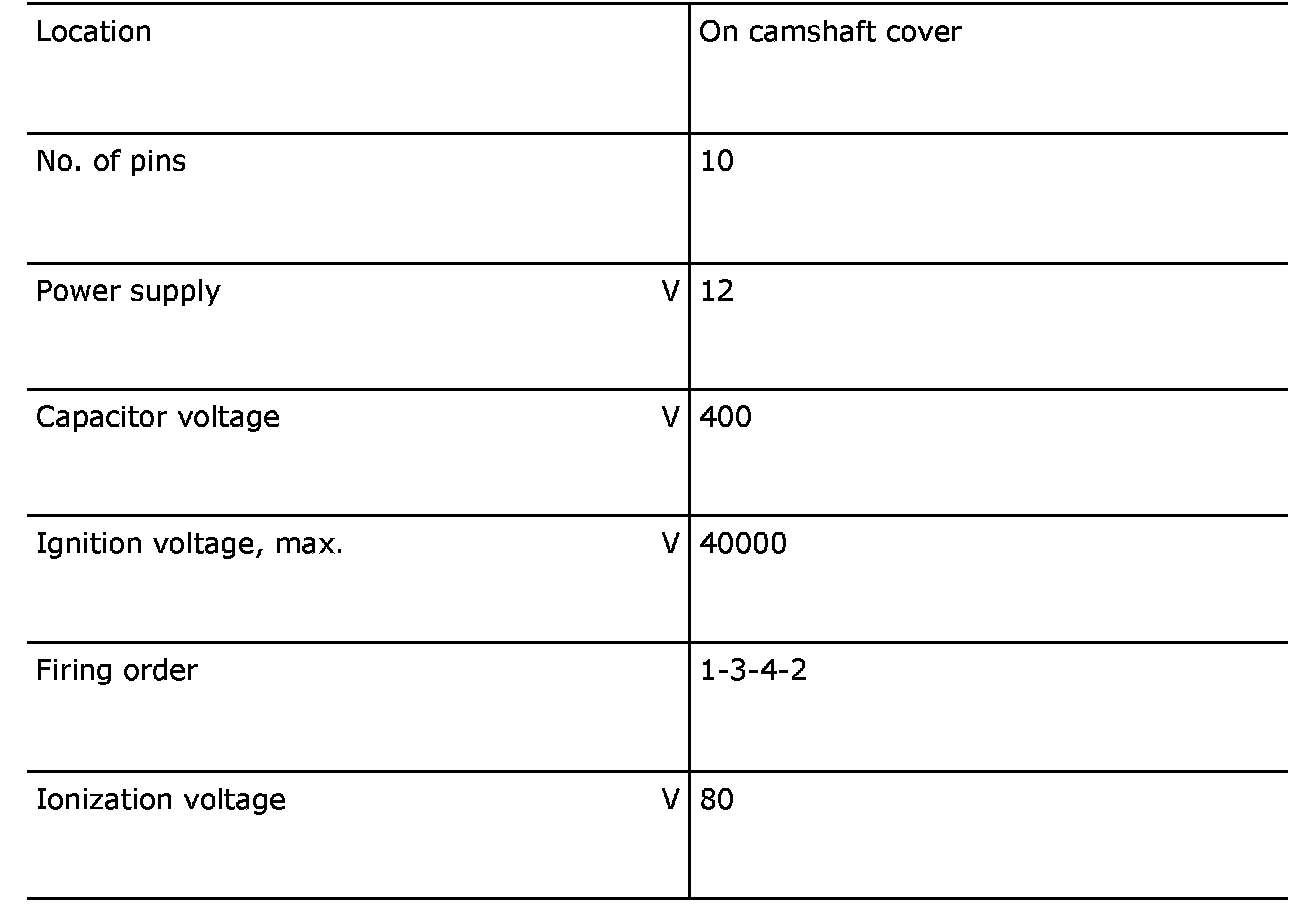

Ignition Discharge Module (346)
NOTE:
Cars with T7 LEV must be fitted with the TK 3.4 D ignition discharge module only (from MY00) but the new module may be fitted on older models.
