Combination Switch: Service and Repair

Light Switch

To remove

1. Pull the steering wheel forward to its outer position.
2. Remove the steering column's protective covers (3 screws).

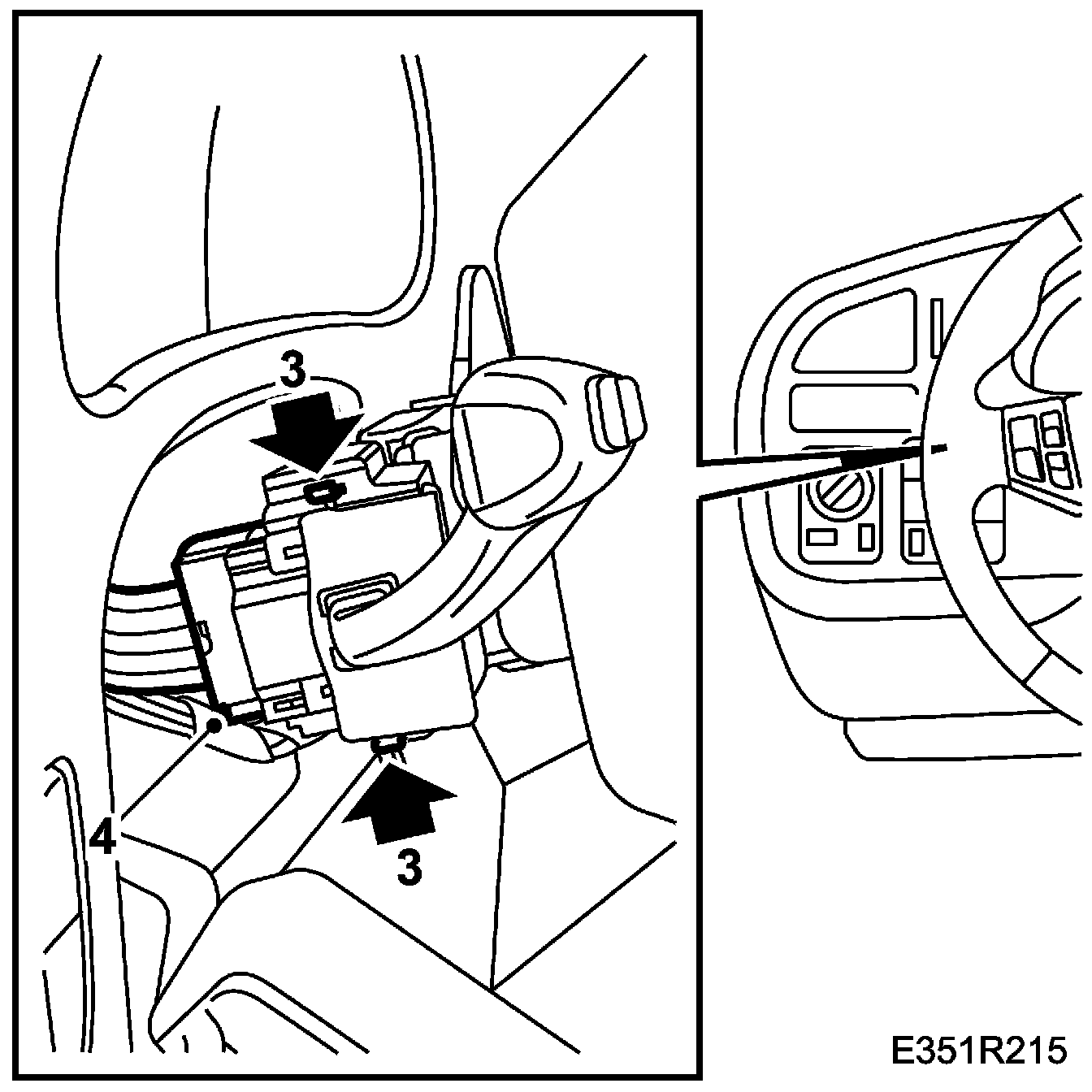

3. Pull out the light switch (2 clips).







4. Unplug the connector.

To fit

1. Spray with "Kontakt 61" and plug in the connector.







2. Fit the light switch.
3. Fit the steering column's protective covers.







4. Adjust the steering wheel to its original position.
