Front Right
Wheel sensor, front rightTo remove
1. Remove the oil reservoir. Leave the hoses in place.

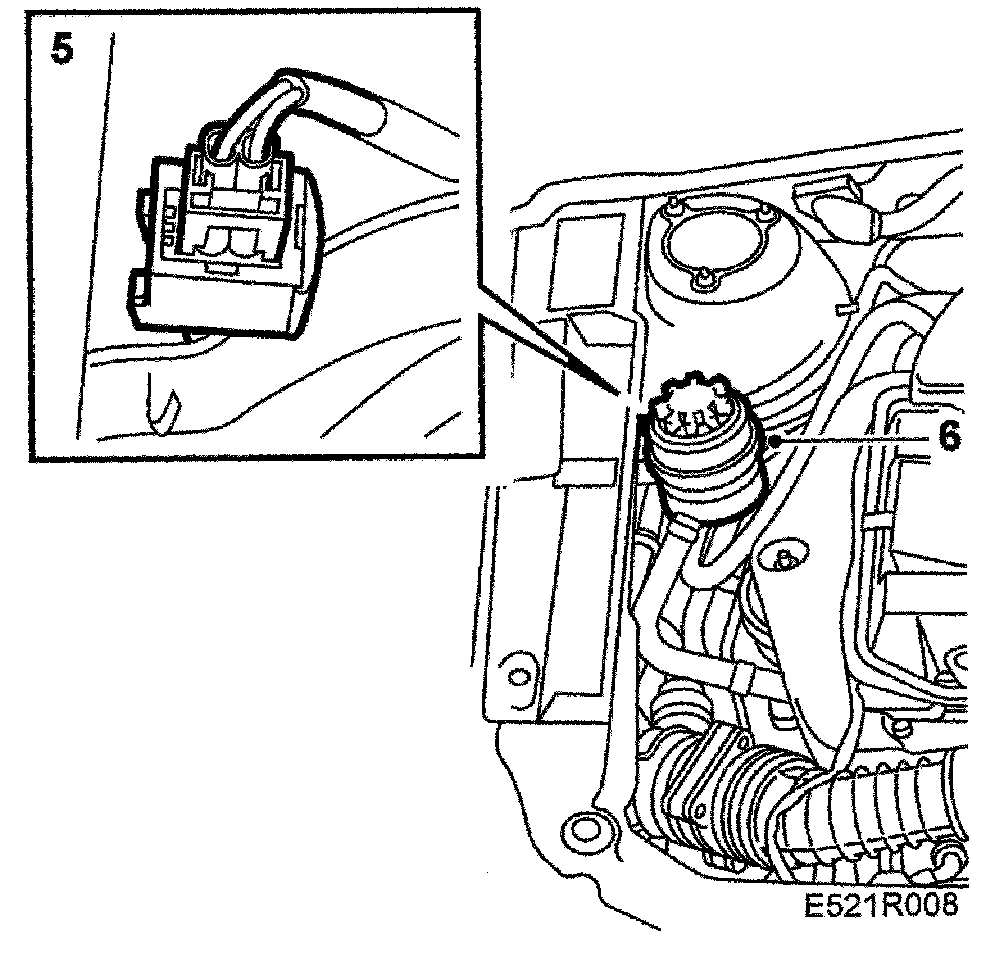

2. Depress the locking tab on the connector and remove it from the holder.
Unplug the connector.
3. Raise the car and remove the wheel.
Clean the area round the wheel sensor using a soft wire brush.

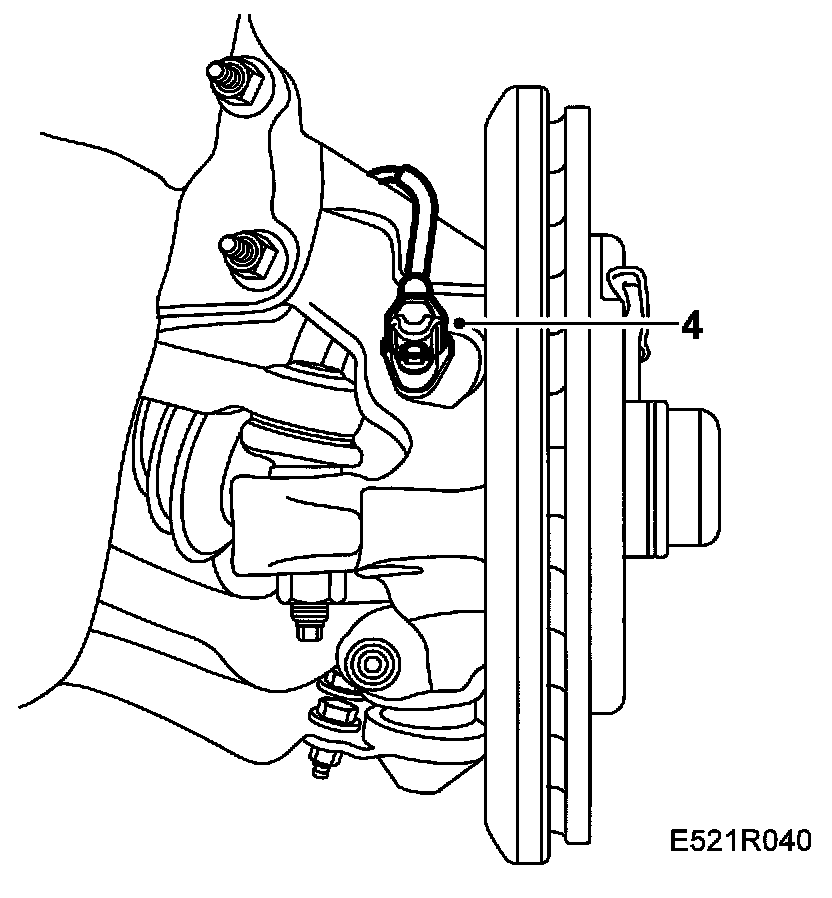

4. Undo the wheel sensor retaining bolt and remove the wheel sensor.

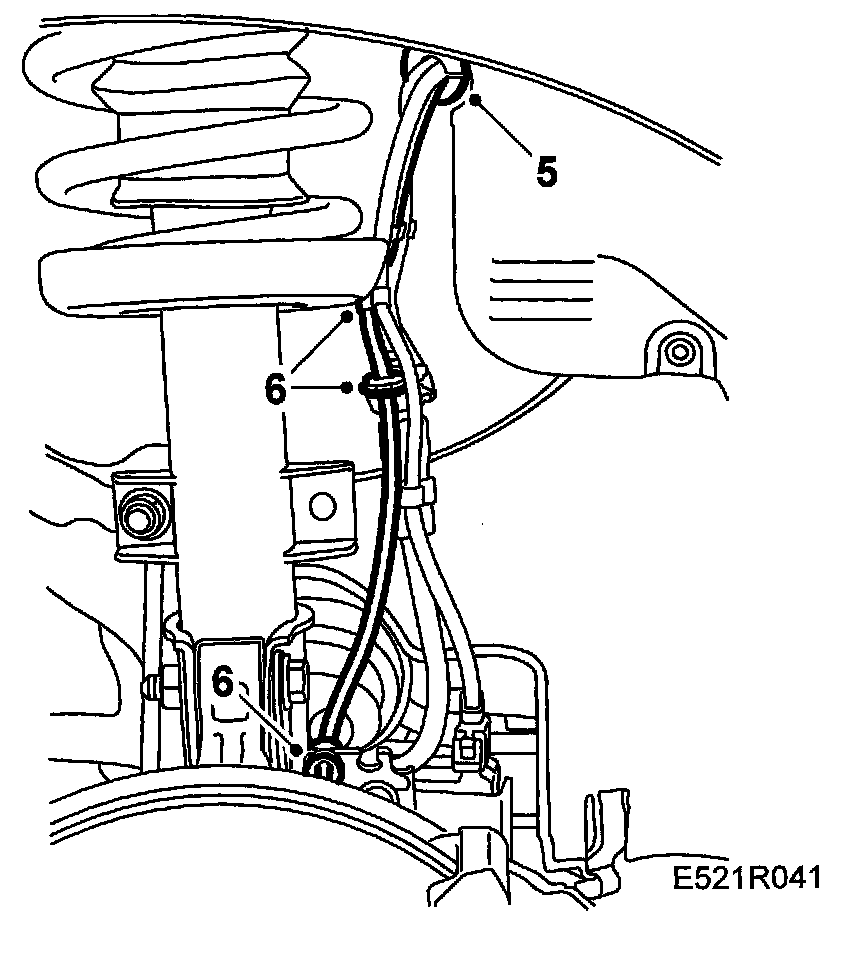

5. Remove the grommet and withdraw the lead.
6. Detach the lead from the clips and lift out the sensor.
To fit

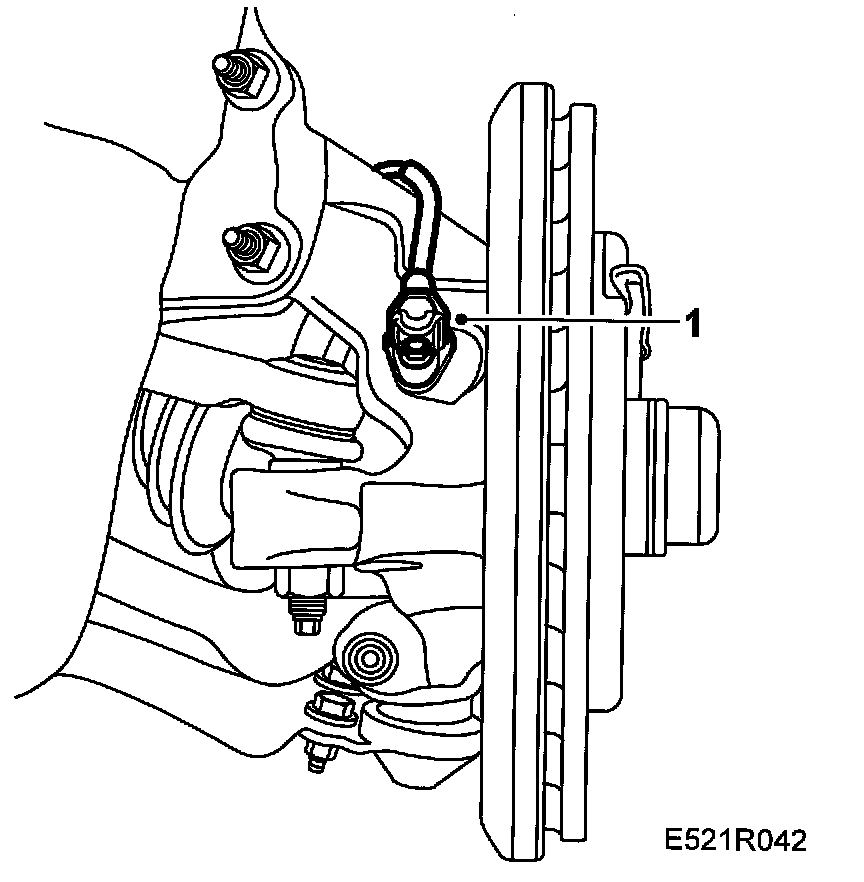

1. Fit the wheel sensor in its holder and tighten the retaining bolt.
2. Insert the lead.

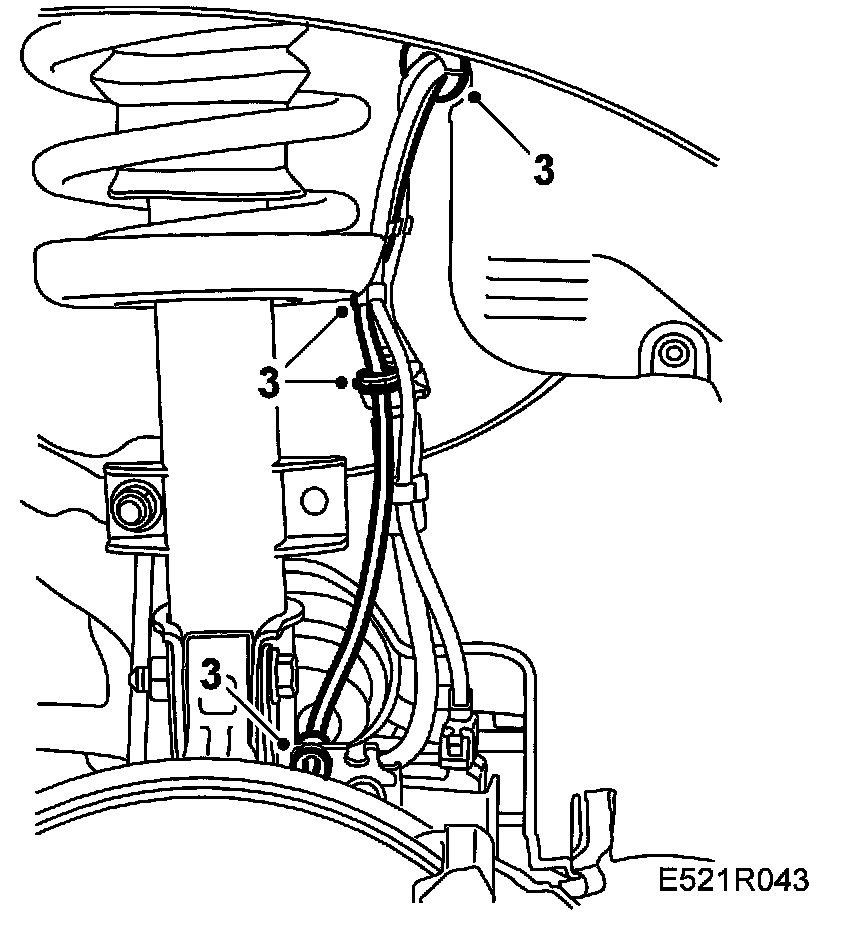

3. Press the lead into the clips and fit the grommet.
4. Fit the wheel and lower the car.
Tightening torques
aluminium wheel 110 Nm (81 ft. lbs.)
steel wheel 50 Nm +2x90°, max. 110 Nm (37 ft. lbs. +2x90°, max. 81 ft. lbs.)
5. Connect the lead and fit the connector into the holder.
6. Fit the oil reservoir.
