Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Diagrams >> Switch, Door Mirror Reversing Position (329)

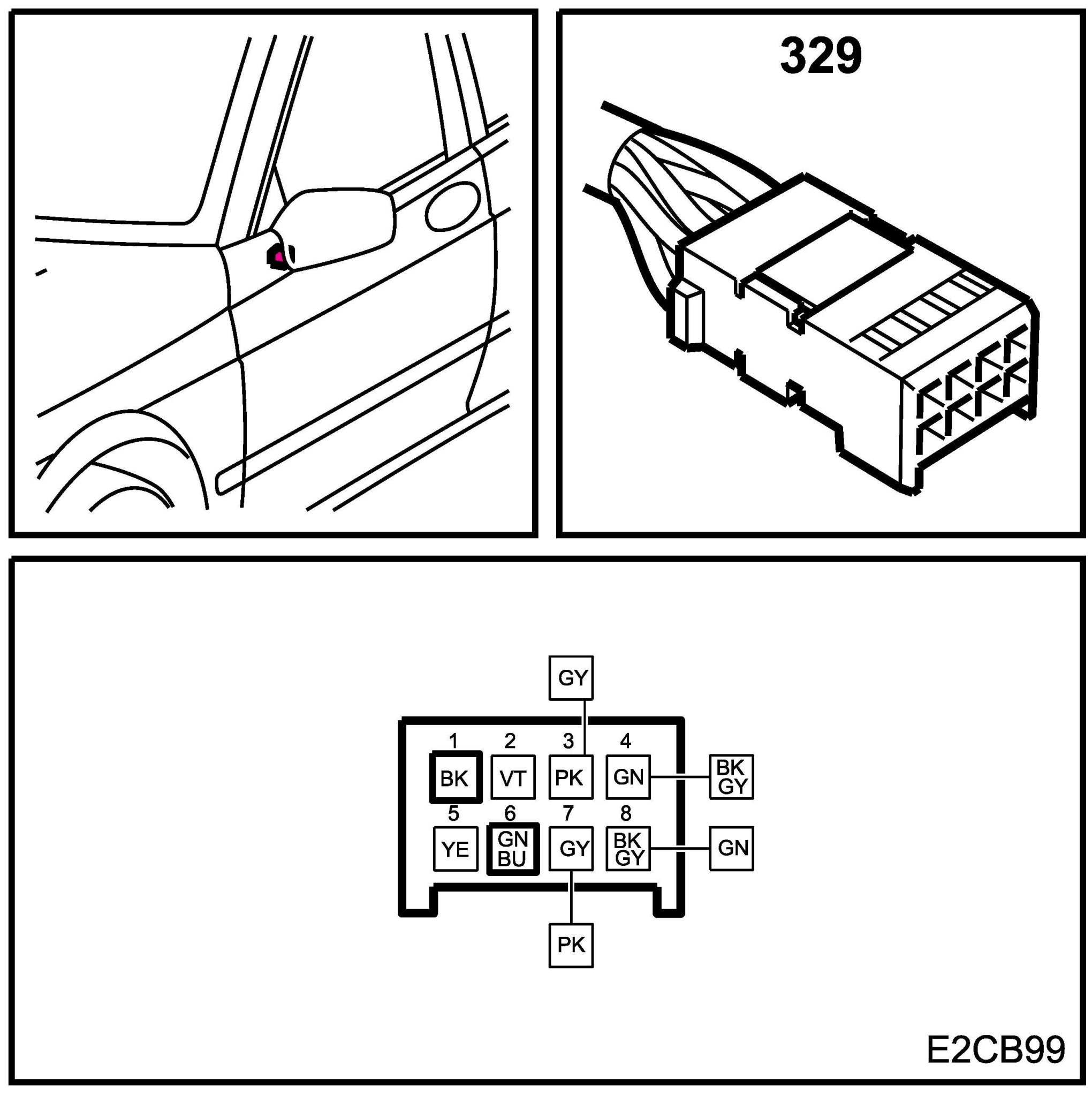

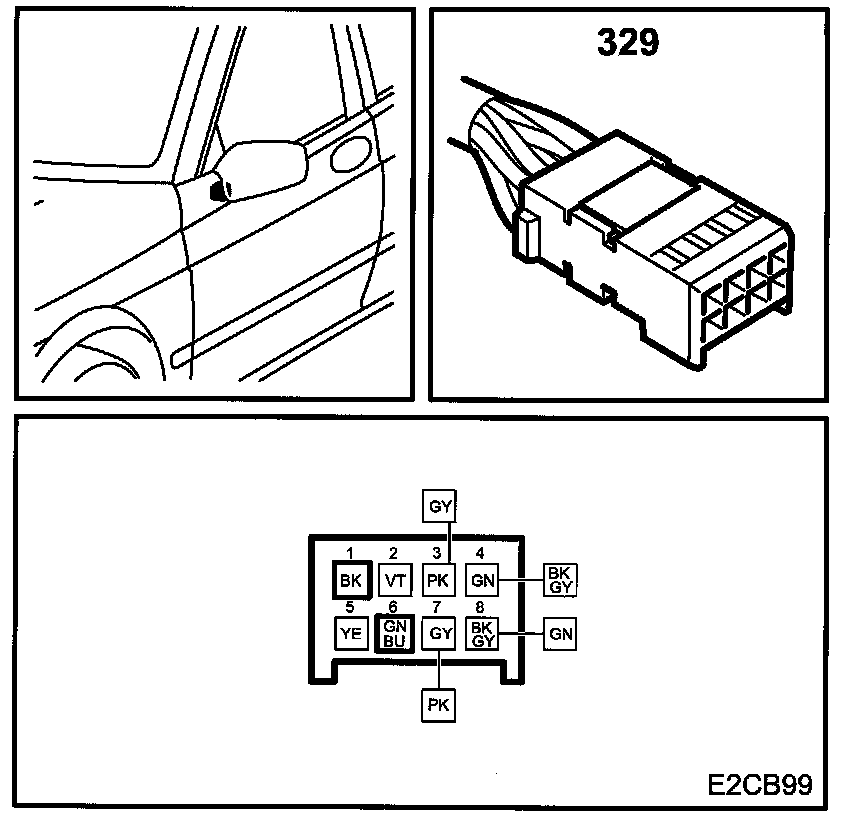

Switch, Door Mirror Reversing Position (329)

Switch, Door Mirror Reversing Position (329):



Switch, Door Mirror Reversing Position (329):
