Seat Belt Warning Does Not Work

Seat Belt Warning Does Not Work







Fault symptoms
Only the seat-belt warning light is not working.

Both the seat belt warning light and the acoustic warning (certain markets) are not working.

Conditions
Short-circuit or break in the wiring harness or a fault on a component.

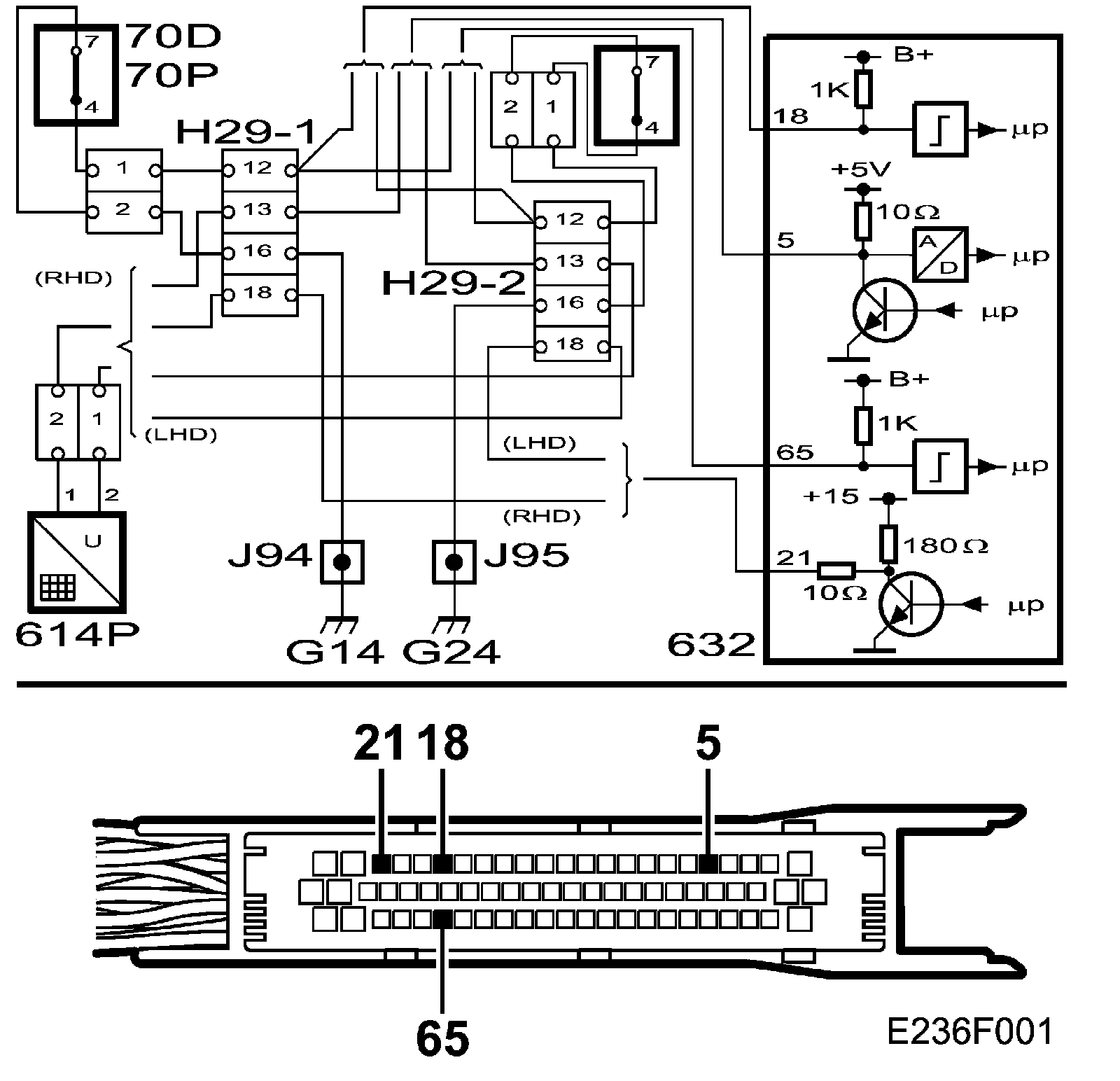

Diagnostic help
The control module inputs can be read using the diagnostic tool.

Check the function for the market concerned. Compare this with the car's behaviour.

Fault Diagnosis Procedure
