Check Sensor For Loaded Seat Cushion, Front-Seat Passenger

Checking the Sensor For the Loaded Seat Cushion, Front-Seat Passenger

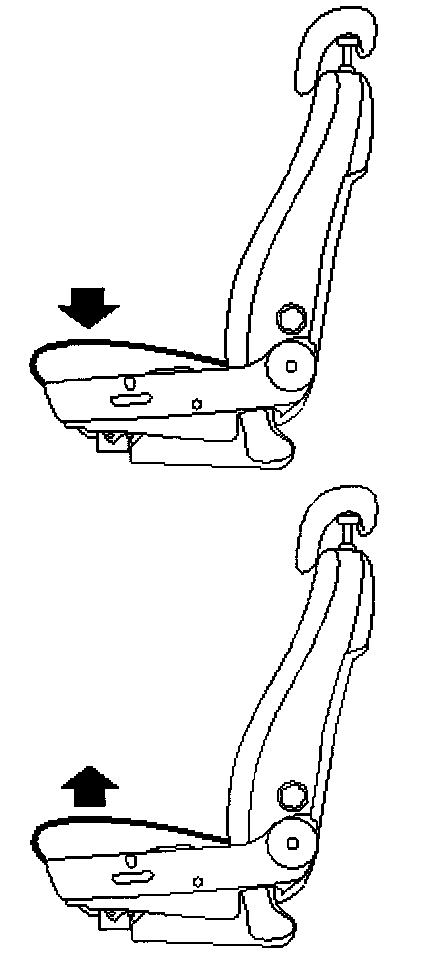

- Weight the passenger seat cushion.
- Read value: Passenger Seat Occupied (TWICE).

The diagnostic tool should show YES.
- Do not exert pressure on the passenger seat's seat cushion.
- Read value: Passenger Seat Occupied (TWICE). The diagnostic tool should show NO.

Is the correct value shown when the passenger seat is weighted and not weighted?

NO - Checking the Wiring Harness

YES - Final Check
