4D

Rear Centre Belt, 4D

To remove

1. Remove Parcel shelf trim, 4D.

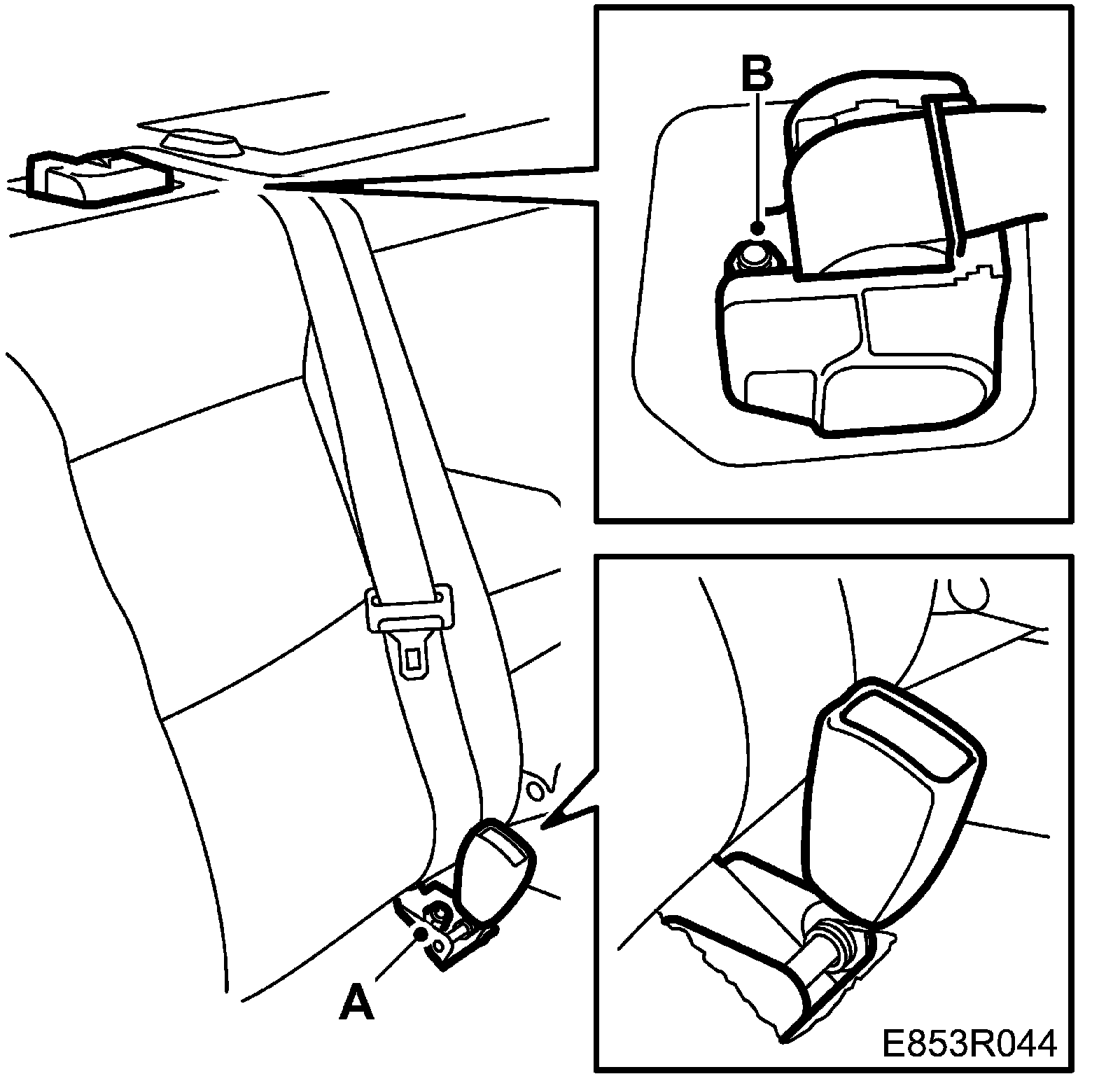

2. Unscrew the lower belt anchorage point (A).







3. Remove the centre belt from the parcel shelf (B).

To fit

1. Fit the centre belt to the parcel shelf (B).

NOTE: Use a new nut.

Tightening torque: 45 Nm (33 lbf ft)

2. Fit the lower belt anchorage point (A).

NOTE: Use a new nut.

Tightening torque: 45 Nm (33 lbf ft)

3. Fit Parcel shelf trim, 4D.

IMPORTANT: Ensure that the belt is positioned correctly.
